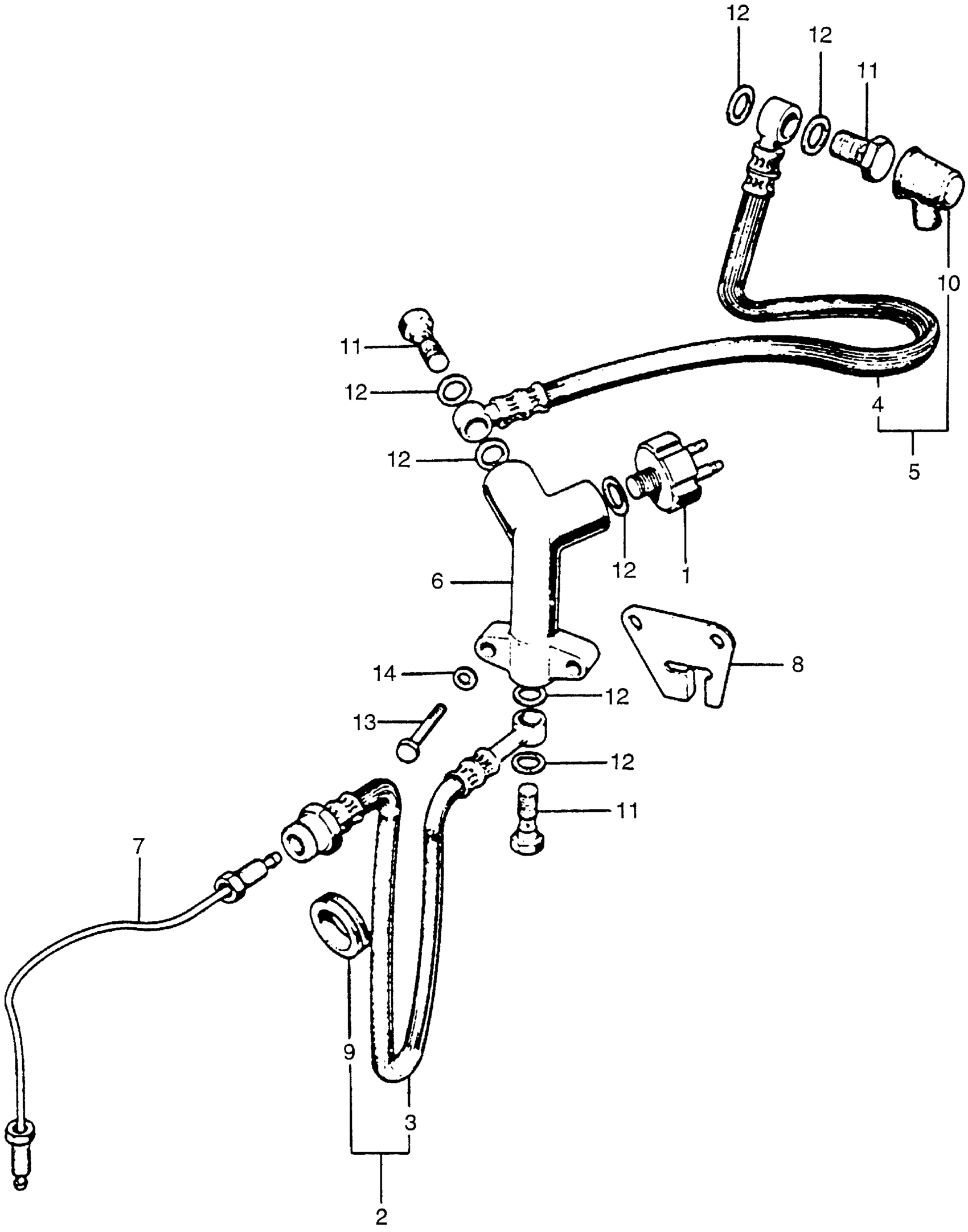

Honda CB750K3A MOTORCYCLE, JPN, VIN# CB750-2200001 FRONT BRAKE HOSE Diagram

SWITCH, STOP (NOT AVAILABLE)

35350-300-016

Unavailable

HOSE A, FR. BRAKE (NICHIRIN)

45125-300-003

Unavailable

HOSE A, FR. BRAKE (NICHIRIN) This part replaces 45125-300-020.

45125-300-003

Unavailable

HOSE B, FR. BRAKE (NICHIRIN) (NOT AVAILABLE) This part replaces 45126-341-000.

45126-341-003

Unavailable

HOSE B, FR. BRAKE (NICHIRIN)

45126-341-003

Unavailable

JOINT, THREE-WAY (NOT AVAILABLE)

45127-300-020

Unavailable

PIPE B, FR. BRAKE

45128-341-670

Unavailable

GUIDE, FR. BRAKE HOSE (NOT AVAILABLE)

45129-300-000

Unavailable

GROMMET, BRAKE HOSE

45146-300-000

$4.24

BOOT, MASTER CYLINDER

45522-300-010

$9.29

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

BOLT, OIL

90145-300-010

$9.68

WASHER, OIL BOLT

90545-300-000

$3.99

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49
