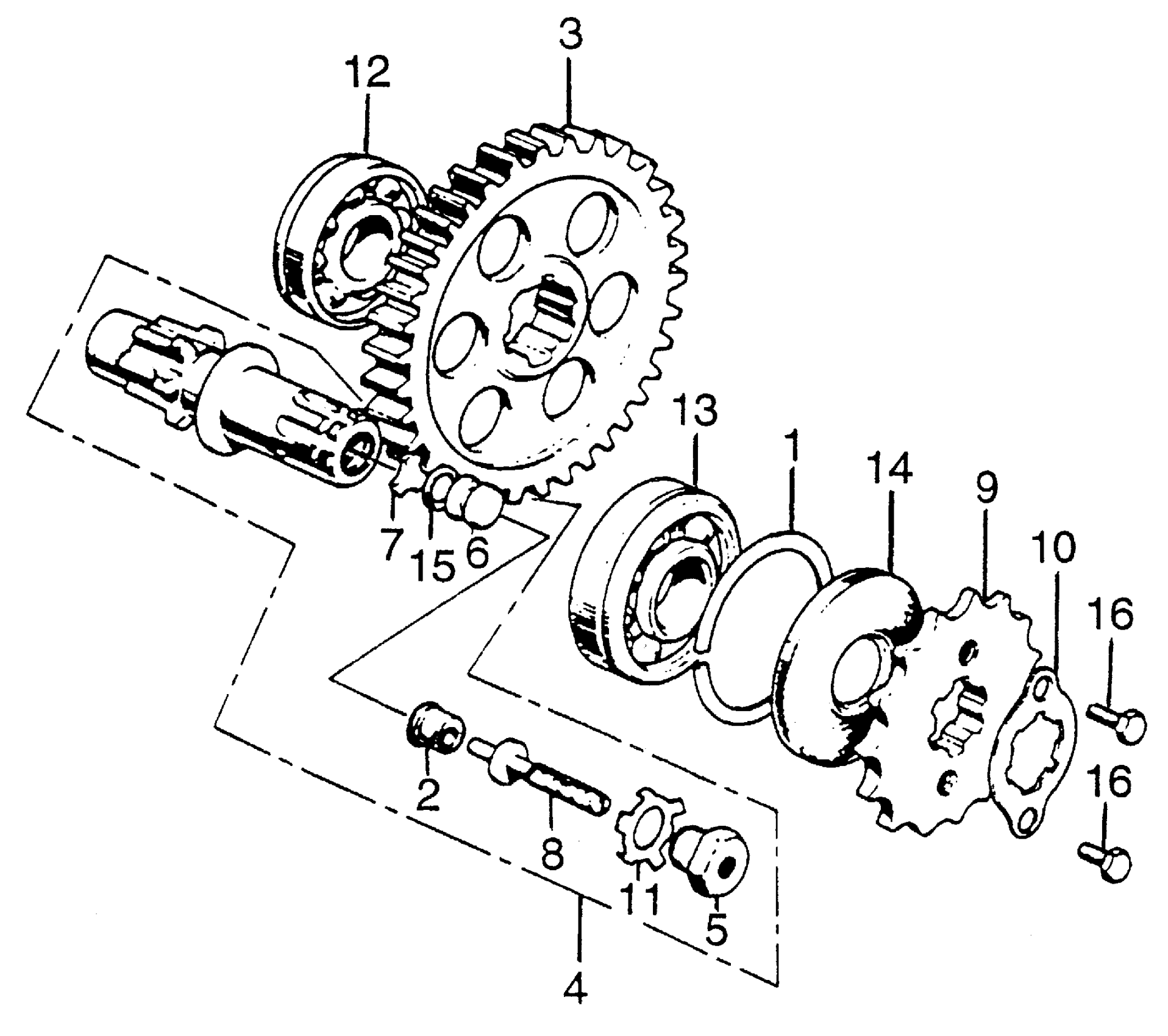

Honda CB750K3A MOTORCYCLE, JPN, VIN# CB750-2200001 FINAL DRIVEN SHAFT + DRIVE SPROCKET Diagram

RING, BEARING SETTING (66.5MM) (NOT AVAILABLE)

13491-300-000

Unavailable

RUBBER, ORIFICE (NOT AVAILABLE)

23314-319-300

Unavailable

GEAR, FINAL DRIVEN (56T) (NOT AVAILABLE)

23511-300-020

Unavailable

SHAFT, FINAL DRIVEN (NOT AVAILABLE)

23520-300-030

Unavailable

PLUG, FINAL SHAFT (NOT AVAILABLE)

23523-300-310

Unavailable

ELEMENT, OIL RESERVE (NOT AVAILABLE)

23524-300-310

Unavailable

PLATE, STOPPER (NOT AVAILABLE)

23525-300-000

$3.49

SCREW, ADJUSTING (NOT AVAILABLE)

23526-300-300

Unavailable

SPROCKET, DRIVE (18T)

23801-300-620

Unavailable

PLATE, DRIVE SPROCKET FIXING

23811-292-000

$2.51

WASHER, LOCK (14MM) (NOT AVAILABLE)

90433-300-010

Unavailable

BEARING, RADIAL BALL (6205) This part replaces 91006-300-008.

96100-62050-00

$18.63

BEARING, RADIAL BALL (6205) This part replaces 96100-62050.

96100-62050-00

$18.63

BEARING, RADIAL BALL (6205)

96100-62050-00

$18.63

BEARING, RADIAL BALL (6205)

96100-62050-10

$20.75

BEARING, RADIAL BALL (5206) This part replaces 91008-300-008.

91012-MG7-003

$95.20

BEARING, RADIAL BALL (5206)

91012-MG7-003

$95.20

OIL SEAL (25X62X7)

91205-300-005

Unavailable

O-RING (6.5X3.1)

91312-415-000

Unavailable

O-RING (6.5X3.1) This part replaces 91313-300-003.

91312-415-000

Unavailable

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49
