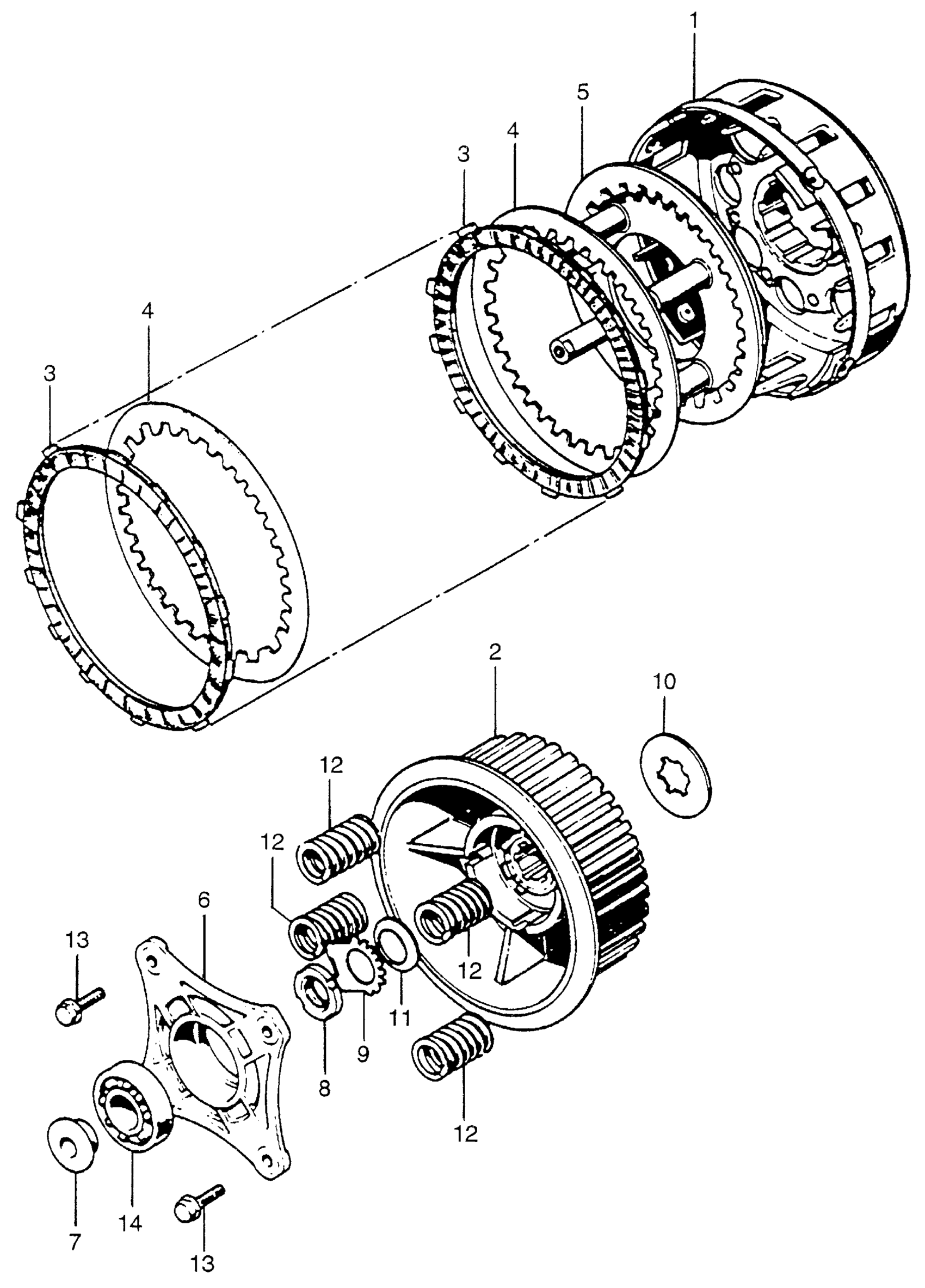

Honda CB750K3A MOTORCYCLE, JPN, VIN# CB750-2200001 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) (NOT AVAILABLE)

22100-300-020

Unavailable

2

CENTER, CLUTCH

22120-300-040

Unavailable

3

DISK A, CLUTCH FRICTION This part replaces 22201-300-000.

22201-371-000

$31.28

3

DISK A, CLUTCH FRICTION

22201-371-000

$31.28

4

PLATE, CLUTCH

22321-MG8-000

$15.44

4

PLATE, CLUTCH This part replaces 22321-283-000.

22321-MG8-000

$15.44

5

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22350-300-030

Unavailable

6

PLATE, CLUTCH LIFTER

22360-300-010

Unavailable

7

PIECE, CLUTCH LIFTER (NOT AVAILABLE) This part replaces 22846-300-000.

22846-300-010

Unavailable

7

PIECE, CLUTCH LIFTER (NOT AVAILABLE)

22846-300-010

Unavailable

8

NUT, LOCK (16MM)

90231-KCS-651

$4.21

8

NUT, LOCK (16MM) This part replaces 90231-200-010.

90231-KCS-651

$4.21

9

WASHER, SPRING (16MM)

90431-292-000

$2.92

10

WASHER (25MM) (NOT AVAILABLE) This part replaces 90432-300-000.

90432-300-303

Unavailable

10

WASHER (25MM) (NOT AVAILABLE)

90432-300-303

Unavailable

11

WASHER (16MM) (NOT AVAILABLE)

90481-292-000

Unavailable

12

SPRING, CLUTCH

95014-75140

$3.06

13

BOLT, FLANGE (6X20) This part replaces 95700-06020.

95701-06020-00

$1.55

13

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

13

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

13

BOLT, FLANGE (6X20) This part replaces 95900-06020-00.

95701-06020-00

$1.55

14

BEARING, RADIAL BALL (6003) This part replaces 96100-60030.

96100-60030-00

$9.35

14

BEARING, RADIAL BALL (6003)

96100-60030-00

$9.35
