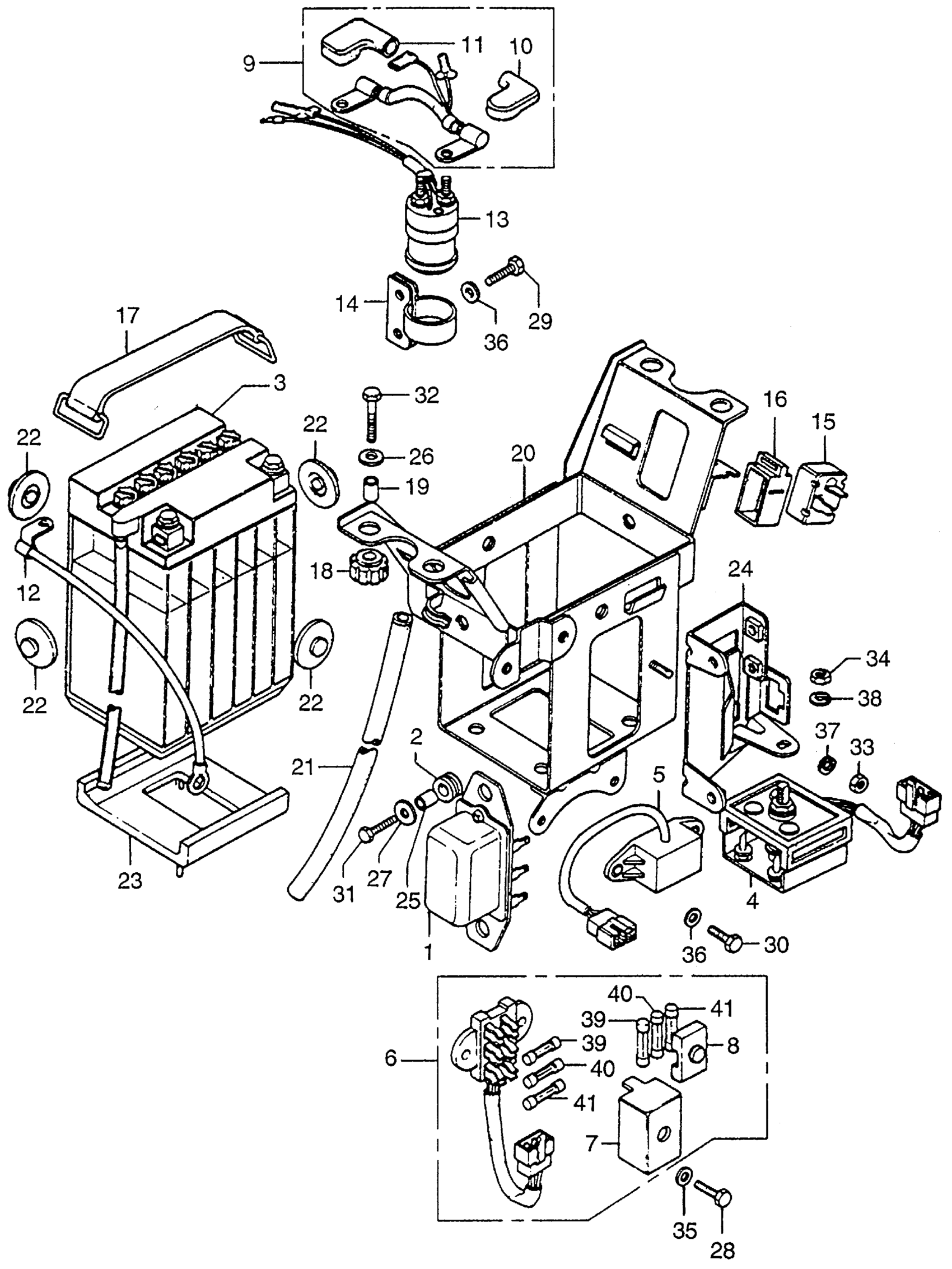

Honda CB750K3A MOTORCYCLE, JPN, VIN# CB750-2200001 BATTERY Diagram

#

Description
Price

1

REGULATOR ASSY. (HITACHI)

31400-300-035

Unavailable

2

RUBBER, REGULATOR CUSHION This part replaces 31403-300-000.

31403-323-000

$3.38

2

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

3

BATTERY (12N14-3A) This part replaces 31500-300-670.

31500-425-672AH

$65.05

3

BATTERY (12N14-3A) This part replaces 31500-425-672.

31500-425-672AH

$65.05

3

BATTERY (12N14-3A) This part replaces 98202-23250.

31500-425-672AH

$65.05

3

BATTERY (12N14-3A) This part replaces 98203-23250.

31500-425-672AH

$65.05

4

RECTIFIER ASSY.

31700-333-008

Unavailable

4

RECTIFIER ASSY. This part replaces 31700-341-015.

31700-333-008

Unavailable

5

SAFETY UNIT, STARTING (NOT AVAILABLE)

31800-341-701

Unavailable

6

BOX ASSY., FUSE

32110-341-702

Unavailable

7

COVER, FUSE BOX (NOT AVAILABLE)

32117-341-702

Unavailable

8

FUSE, GROMMET (NOT AVAILABLE)

32118-341-702

Unavailable

9

CABLE, STARTER BATTERY

32401-300-010

Unavailable

10

COVER This part replaces 32412-300-010.

32412-MJ0-000

Unavailable

11

COVER B, BATTERY TERMINAL (NOT AVAILABLE)

32413-300-010

Unavailable

12

CABLE, BATTERY GROUND

32601-MG9-000

Unavailable

12

CABLE, BATTERY GROUND This part replaces 32601-300-000.

32601-MG9-000

Unavailable

12

CABLE, BATTERY GROUND This part replaces 32601-463-000.

32601-MG9-000

Unavailable

13

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-306-670.

35850-371-670

Unavailable

13

SWITCH ASSY., STARTER MAGNETIC

35850-371-670

Unavailable

14

STAY, STARTER MAGNETIC SWITCH (NOT AVAILABLE) This part replaces 35851-300-000.

35851-392-000

Unavailable

14

STAY, STARTER MAGNETIC SWITCH (NOT AVAILABLE)

35851-392-000

Unavailable

15

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38300-292-670.

38301-KJ6-743

$60.65

15

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-741.

38301-KJ6-743

$60.65

15

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-742.

38301-KJ6-743

$60.65

15

RELAY, TURN SIGNAL (MITSUBA)

38301-KJ6-743

$60.65

16

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-292-670

Unavailable

17

BAND F, BATTERY This part replaces 50322-300-010.

95012-17001

$7.23

17

BAND F, BATTERY

95012-17001

$7.23

18

RUBBER A, BATTERY (NOT AVAILABLE)

50323-300-010

Unavailable

19

COLLAR, BATTERY BOX

50324-300-000

Unavailable

20

BOX, BATTERY

50325-341-700

Unavailable

22

RUBBER B, BATTERY

50327-300-000

$4.58

23

RUBBER C, BATTERY (NOT AVAILABLE)

50329-300-010

Unavailable

24

PLATE, ELECTRIC BASE (NOT AVAILABLE)

50330-341-000

Unavailable

25

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

26

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

26

WASHER, PLAIN (6MM)

94103-06800

$1.49

27

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

27

WASHER (18MM)

90581-831-650

$1.87

28

BOLT, HEX. (5X14) This part replaces 92000-05014-0A.

92101-05014-0A

$1.49

28

BOLT, HEX. (5X14)

92101-05014-0A

$1.49

29

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

29

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

29

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

30

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

30

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

30

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

30

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

30

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

30

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

31

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

31

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

32

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

32

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

33

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM)

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

34

NUT, HEX. (8MM)

94001-08000-0S

$1.49

35

WASHER, PLAIN (5MM)

94101-05000

$1.49

36

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

36

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

36

WASHER, PLAIN (6MM)

94101-06800

$1.49

37

WASHER, SPRING (6MM)

94111-06000

$1.49

38

WASHER, SPRING (8MM)

94111-08000

$1.49

39

FUSE A (5A)

98200-10500

$1.49

40

FUSE A (7A)

98200-10700

$1.49

41

FUSE A (15A)

98200-11500

$1.49
