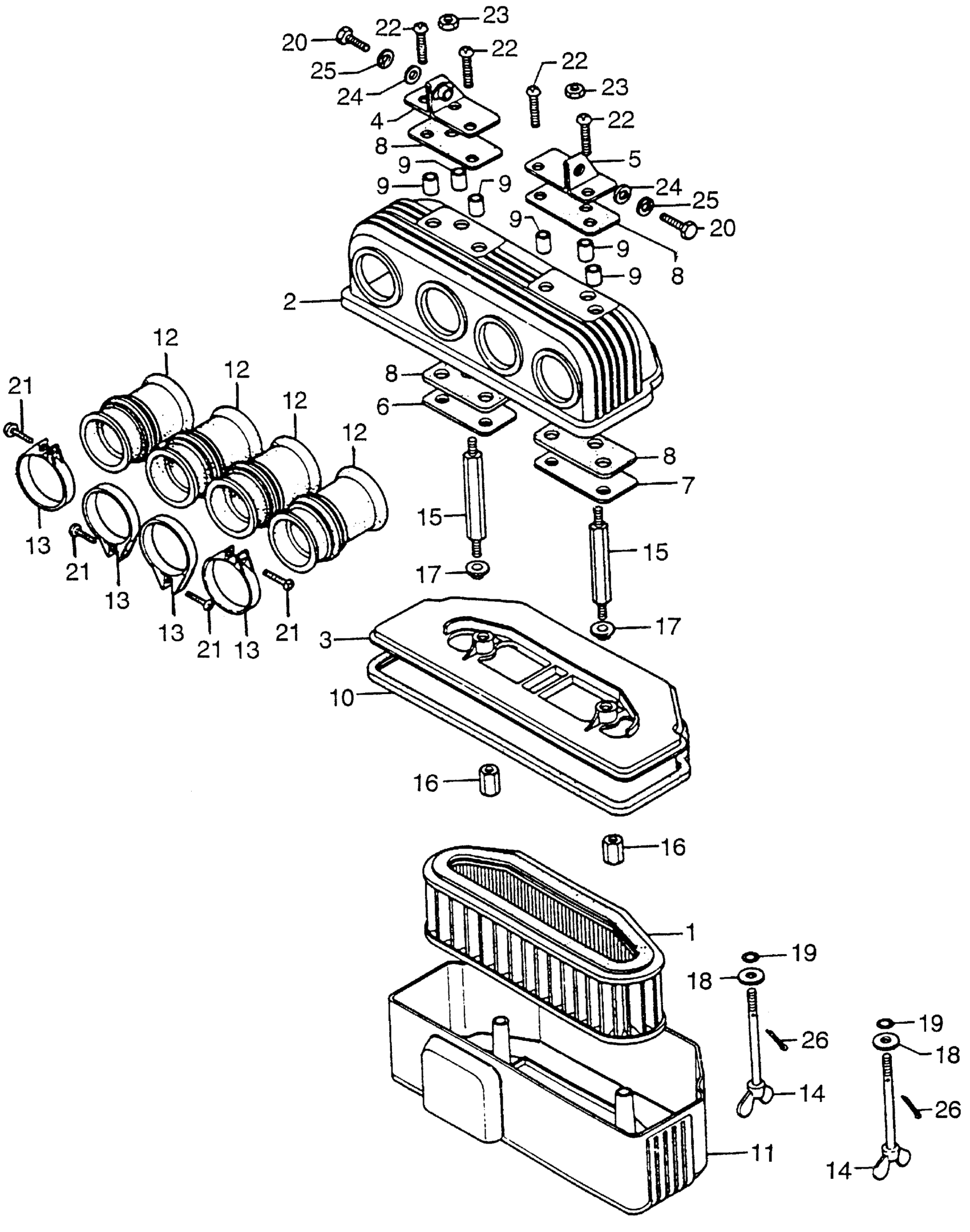

Honda CB750K3A MOTORCYCLE, JPN, VIN# CB750-2200001 AIR FILTER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER This part replaces 17211-341-000.

17211-405-000

Unavailable

1

ELEMENT, AIR CLEANER This part replaces 17211-392-000.

17211-405-000

Unavailable

1

ELEMENT, AIR CLEANER

17211-405-000

Unavailable

2

HOUSING, AIR CLEANER (NOT AVAILABLE)

17212-341-000

Unavailable

3

SEPARATOR, AIR CLEANER *NH1* (BLACK)

17213-300-000B

Unavailable

4

STAY, R. AIR CLEANER HOUSING (NOT AVAILABLE)

17215-300-030

Unavailable

5

STAY, L. AIR CLEANER HOUSING

17216-300-030

Unavailable

6

PLATE, R. AIR CLEANER HOUSING (NOT AVAILABLE)

17217-300-330

Unavailable

7

PLATE, L. AIR CLEANER HOUSING (NOT AVAILABLE)

17218-300-330

Unavailable

8

RUBBER, CLEANER CASE MOUNT (NOT AVAILABLE)

17219-300-010

Unavailable

9

COLLAR, AIR CLEANER HOUSING MOUNT (NOT AVAILABLE)

17220-300-010

Unavailable

10

GASKET, AIR CLEANER HOUSING

17221-341-000

Unavailable

11

COVER, AIR CLEANER (NOT AVAILABLE)

17231-341-010

Unavailable

12

TUBE, AIR CLEANER CONNECTING

17253-341-300

$16.85

13

BAND, AIR CLEANER CONNECTING TUBE (46) This part replaces 17255-230-000.

95018-46250

$7.64

14

BOLT, AIR CLEANER COVER

90143-300-020

$8.99

15

BOLT, AIR CLEANER HOUSING (NOT AVAILABLE)

90144-300-020

Unavailable

16

NUT, AIR CLEANER HOUSING MOUNT (NOT AVAILABLE)

90301-300-000

Unavailable

17

WASHER B, CHAIN CASE SETTING

90554-240-000

$1.73

18

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

18

WASHER (18MM)

90581-831-650

$1.87

19

O-RING (6X2.2)

91301-704-000

$2.92

20

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

21

SCREW, PAN (4X20)

93500-04020-0A

$1.49

22

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

22

SCREW, PAN (6X20)

93500-06020-0A

$1.49

23

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM)

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

WASHER, SPRING (6MM)

94111-06000

$1.49

26

PIN, COTTER (2.0X15)

94201-20150

$1.49
