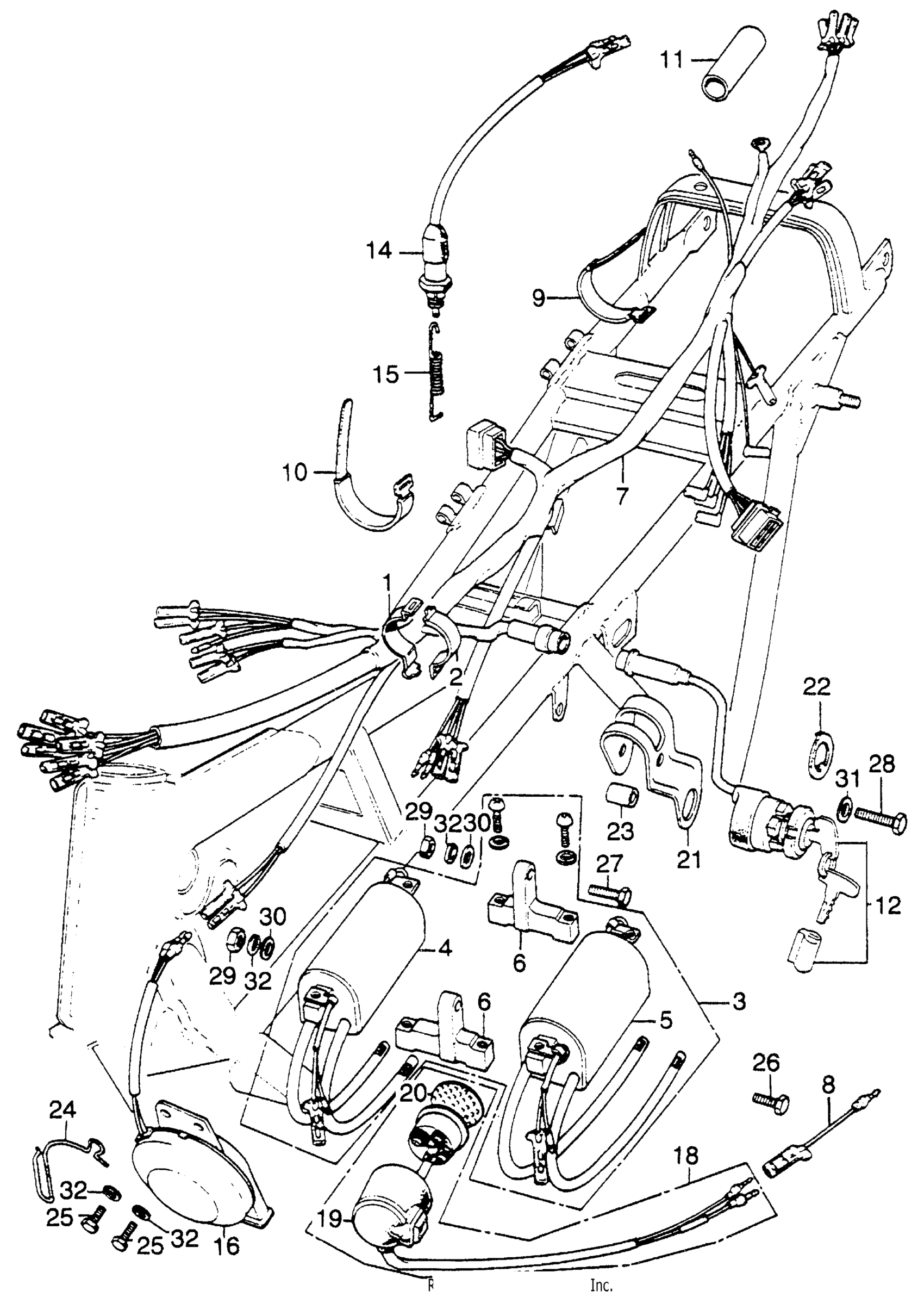

Honda CB750K2A MOTORCYCLE, JPN, VIN# CB750-2000001 WIRE HARNESS Diagram

#

Description
Price

1

BAND A, IGNITION COIL SETTING (NOT AVAILABLE)

30151-300-000

Unavailable

2

BAND B, IGNITION COIL SETTING (NOT AVAILABLE)

30152-300-000

Unavailable

3

COIL ASSY., IGNITION (TOYO)

30500-300-013

$288.13

4

COIL, R. IGNITION (TOYO)

30501-300-003

Unavailable

5

COIL, L. IGNITION (TOYO) (NOT AVAILABLE)

30502-300-003

Unavailable

6

BRACKET, IGNITION COIL (NOT AVAILABLE)

30511-300-000

Unavailable

7

WIRE HARNESS (NOT AVAILABLE)

32100-341-000

Unavailable

8

SUB-WIRE B, WIRE HARNESS (NOT AVAILABLE)

32121-300-750

Unavailable

9

BAND B1, WIRE

32161-404-000

$2.13

9

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.13

10

BAND B2, WIRE

95014-62200

$1.93

11

TUBE, WIRE (NOT AVAILABLE)

33720-300-000

Unavailable

12

SWITCH KIT | Use up to Frame SN 2011562 This part replaces 35010-341-670.

35010-341-673

Unavailable

12

SWITCH KIT This part replaces 35010-341-671.

35010-341-673

Unavailable

12

SWITCH KIT This part replaces 35010-341-672.

35010-341-673

Unavailable

14

SWITCH ASSY., RR. STOP

35350-KJ9-405

$15.24

14

SWITCH ASSY., RR. STOP This part replaces 35350-336-000.

35350-KJ9-405

$15.24

15

SPRING, STOP SWITCH

35357-300-000

Unavailable

16

HORN ASSY. (MITSUBA)

38100-300-023

Unavailable

18

BUZZER, WARNING This part replaces 38400-341-671.

38450-402-940

Unavailable

19

COVER, BUZZER (NOT AVAILABLE)

38402-341-671

Unavailable

20

PLATE, TURN SIGNAL BUZZER

38403-341-672

$4.62

21

BRACKET, COMBINATION SWITCH *NH1* (BLACK) (NOT AVAILABLE)

50375-300-000B

Unavailable

22

WASHER, COMBINATION SWITCH (NOT AVAILABLE)

50376-300-000

Unavailable

23

COLLAR, COMBINATION SWITCH (NOT AVAILABLE)

50377-300-000

Unavailable

24

CLAMP, TACHOMETER CABLE | Use up to Frame SN 2065309 This part replaces 50462-300-000.

50462-323-010

Unavailable

24

CLAMP, TACHOMETER CABLE This part replaces 50462-323-000.

50462-323-010

Unavailable

25

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.33

25

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.33

25

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.33

25

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.33

25

BOLT, HEX. (6X16)

92101-06016-0A

$1.33

25

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.33

26

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.48

26

BOLT, HEX. (6X25)

92101-06025-0A

$1.48

27

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.57

27

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.57

27

BOLT, HEX. (6X32)

92101-06032-0A

$1.57

28

BOLT, HEX. (8X40) This part replaces 92000-08040-0A.

92101-08040-0A

$1.71

28

BOLT, HEX. (8X40)

92101-08040-0A

$1.71

29

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

29

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

29

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

29

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

29

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

29

NUT, HEX. (6MM)

94001-06200-0S

$1.19

29

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

30

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

30

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

30

WASHER, PLAIN (6MM)

94101-06800

Unavailable

31

WASHER, PLAIN (8MM)

94101-08000

$0.75

32

WASHER, SPRING (6MM)

94111-06000

$0.86
