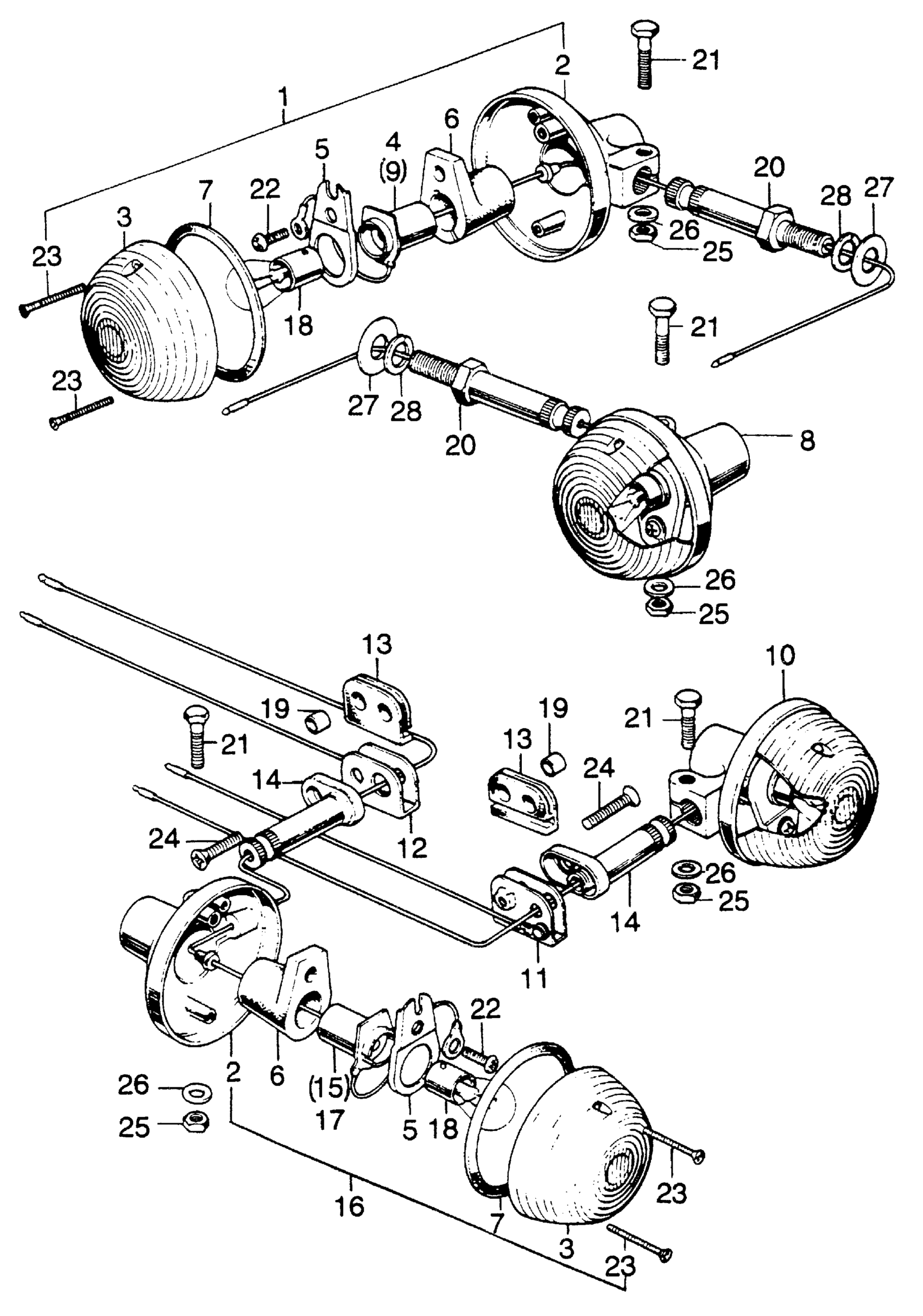

Honda CB750K2A MOTORCYCLE, JPN, VIN# CB750-2000001 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR. This part replaces 33400-292-670.

33400-292-679

Unavailable

1

TURN SIGNAL ASSY., R. FR.

33400-292-679

Unavailable

2

BASE, TURN SIGNAL This part replaces 33401-292-003.

33401-341-701

$39.39

2

BASE, TURN SIGNAL

33401-341-701

$39.39

3

LENS, FR. TURN SIGNAL (STANLEY) This part replaces 33402-268-671.

33402-268-672

$8.92

3

LENS, FR. TURN SIGNAL (STANLEY)

33402-268-672

$8.92

4

SOCKET, R. FR. This part replaces 33402-292-003.

33410-361-003

Unavailable

5

HOLDER, FR. TURN SIGNAL SOCKET (STANLEY) (NOT AVAILABLE) This part replaces 33407-284-000.

33407-284-003

Unavailable

5

HOLDER, FR. TURN SIGNAL SOCKET (STANLEY) (NOT AVAILABLE)

33407-284-003

Unavailable

6

RUBBER, TURN SIGNAL CUSHION (STANLEY) (NOT AVAILABLE) This part replaces 33408-284-000.

33408-341-701

Unavailable

6

RUBBER, TURN SIGNAL CUSHION (STANLEY) (NOT AVAILABLE)

33408-341-701

Unavailable

7

GASKET, TURN SIGNAL LENS

33443-268-671

$2.13

8

TURN SIGNAL ASSY., R. FR. This part replaces 33400-292-670.

33400-292-679

Unavailable

8

TURN SIGNAL ASSY., R. FR.

33400-292-679

Unavailable

8

TURN SIGNAL ASSY., R. FR. This part replaces 33450-292-670.

33400-292-679

Unavailable

9

SOCKET COMP., L. FR. This part replaces 33453-292-003.

33460-361-003

Unavailable

10

TURN SIGNAL ASSY., R. RR. This part replaces 33600-300-000.

33600-306-679

$50.59

10

TURN SIGNAL ASSY., R. RR. This part replaces 33600-306-670.

33600-306-679

$50.59

10

TURN SIGNAL ASSY., R. RR.

33600-306-679

$50.59

10

TURN SIGNAL ASSY., R. RR. This part replaces 33600-415-000.

33600-306-679

$50.59

10

TURN SIGNAL ASSY., R. RR. This part replaces 33650-306-670.

33600-306-679

$50.59

11

STOPPER, R. RR. TURN SIGNAL (NOT AVAILABLE)

33604-323-670

Unavailable

12

STOPPER, L. RR. TURN SIGNAL (NOT AVAILABLE)

33605-323-670

Unavailable

13

RUBBER, RR. TURN SIGNAL MOUNT

33606-074-010

$4.98

14

STAY, R. RR. TURN SIGNAL (NOT AVAILABLE)

33607-323-670

Unavailable

15

SOCKET, R. RR. TURN SIGNAL (NOT AVAILABLE)

33610-300-000

Unavailable

16

TURN SIGNAL ASSY., R. RR.

33600-306-679

$50.59

16

TURN SIGNAL ASSY., R. RR. This part replaces 33650-300-000.

33600-306-679

$50.59

17

SOCKET, L. RR. TURN SIGNAL (NOT AVAILABLE)

33660-300-000

Unavailable

18

BULB, TURN SIGNAL (12V 23W) (STANLEY)

34905-268-671

$2.79

19

COLLAR A, RR. FENDER This part replaces 80108-061-000.

80108-061-010

$4.12

19

COLLAR A, RR. FENDER

80108-061-010

$4.12

20

BOLT, LIGHT CASE SETTING

90154-268-670

$30.10

21

BOLT, HEX. (6X28) (SOURCE: VINTAGE PARTS INC.) This part replaces 93000-06028-0B.

93101-06028-0B

$1.49

21

BOLT, HEX. (6X28) (SOURCE: VINTAGE PARTS INC.) This part replaces 93000-06028-02.

93101-06028-0B

$1.49

21

BOLT, HEX. (6X28) (SOURCE: VINTAGE PARTS INC.) This part replaces 93100-06028-0B.

93101-06028-0B

$1.49

21

BOLT, HEX. (6X28)

93101-06028-0B

$1.49

22

SCREW, PAN (5X8)

93500-05008-0A

$1.49

23

SCREW, OVAL (3X25) (NOT AVAILABLE)

93700-03025-3B

Unavailable

24

SCREW, OVAL (6X25)

93700-06025-0B

$1.49

24

SCREW, OVAL (6X25) This part replaces 93700-06025-02.

93700-06025-0B

$1.49

25

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM)

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

WASHER, PLAIN (10MM)

94101-10000

$1.49

28

WASHER, SPRING (10MM)

94111-10000

$1.49
