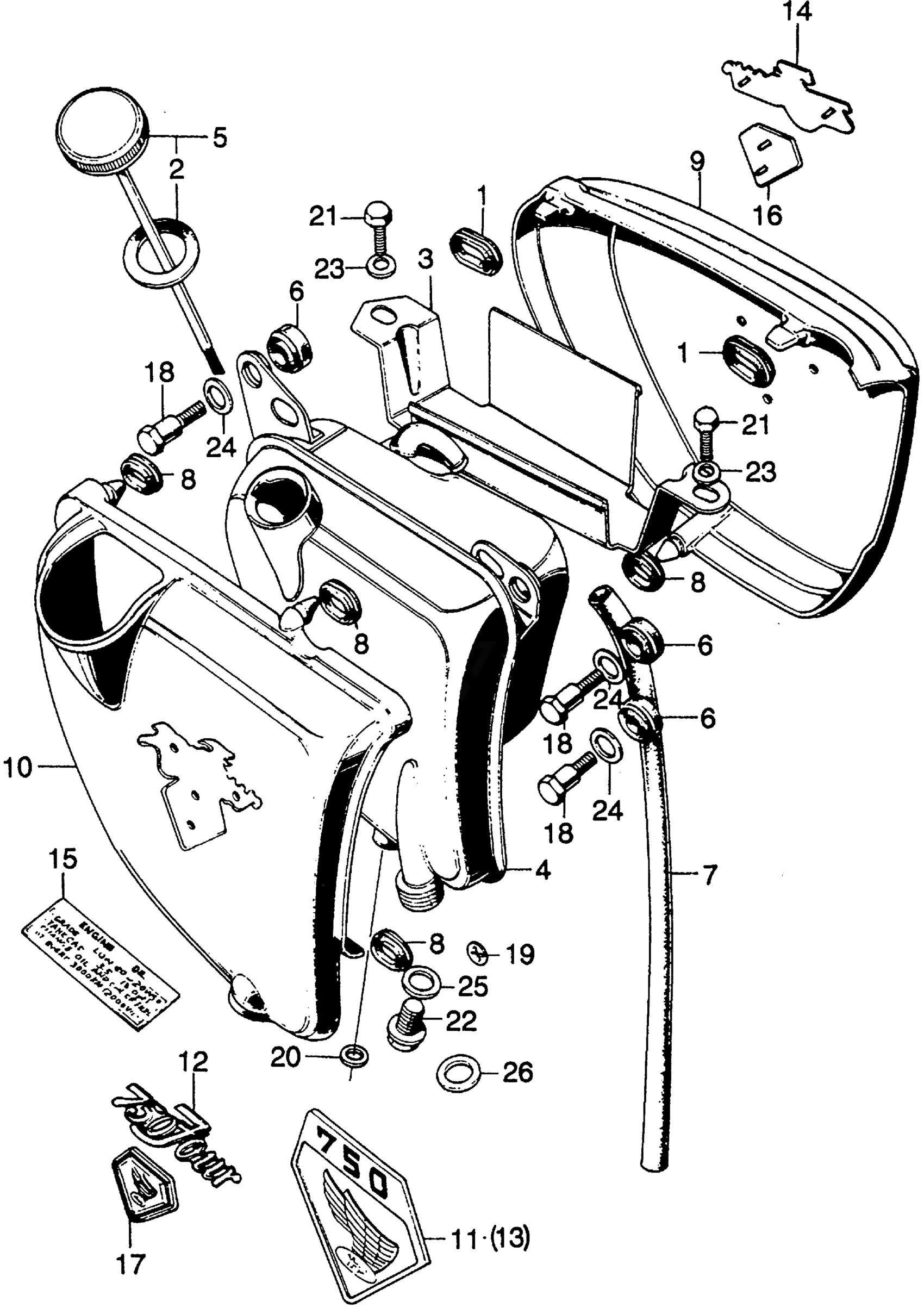

Honda CB750K2A MOTORCYCLE, JPN, VIN# CB750-2000001 OIL TANK + TANK & BATTERY COVER Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

2

GASKET, FUEL FILLER CAP This part replaces 17631-253-000.

17631-253-010

Unavailable

2

GASKET, FUEL FILLER CAP

17631-253-010

Unavailable

3

TRAY, TOOL (NOT AVAILABLE)

50341-300-010

Unavailable

4

TANK, OIL *NH1* (BLACK) (NOT AVAILABLE)

55100-300-060B

Unavailable

5

CAP, OIL TANK (NOT AVAILABLE)

55105-300-010

Unavailable

6

RUBBER, OIL TANK

55106-300-000

Unavailable

7

PIPE, OIL TANK BREATHER (NOT AVAILABLE)

55107-300-000

Unavailable

8

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

9

COVER, BATTERY *R4C* (CANDY RUBY RED) (NOT AVAILABLE) | Use from Frame SN 2065310

83600-341-701CM

Unavailable

9

COVER, BATTERY *YR15MC* (BRIER BROWN METALLIC CUSTOM) (NOT AVAILABLE) | Use up to Frame SN 2065309 This part replaces 83600-300-030LU.

83600-341-701LU

Unavailable

9

COVER, BATTERY *R2CF* (FLAKE SUNRISE ORANGE) (NOT AVAILABLE) | Use up to Frame SN 2065309 This part replaces 83600-300-030LV.

83600-341-701LV

Unavailable

9

COVER, BATTERY *Y2CC* (CANDY GOLD CUSTOM) (NOT AVAILABLE) | Use up to Frame SN 2065309 This part replaces 83600-300-030LX.

83600-341-701LX

Unavailable

9

COVER, BATTERY *YR15MC* (BRIER BROWN METALLIC CUSTOM) (NOT AVAILABLE)

83600-341-701LU

Unavailable

9

COVER, BATTERY *R2CF* (FLAKE SUNRISE ORANGE) (NOT AVAILABLE)

83600-341-701LV

Unavailable

9

COVER, BATTERY *Y2CC* (CANDY GOLD CUSTOM) (NOT AVAILABLE)

83600-341-701LX

Unavailable

9

COVER, BATTERY *PB27MC* (PLANET BLUE METALLIC CUSTOM) (NOT AVAILABLE) | Use from Frame SN 2065310

83600-341-701MV

Unavailable

10

COVER, OIL TANK *R4C* (CANDY RUBY RED) (NOT AVAILABLE) | Use from Frame SN 2065310

83700-341-701CM

Unavailable

10

COVER, OIL TANK *YR15MC* (BRIER BROWN METALLIC CUSTOM) (NOT AVAILABLE) | Use up to Frame SN 2065309 This part replaces 83700-300-030LU.

83700-341-701LU

Unavailable

10

COVER, OIL TANK *R2CF* (FLAKE SUNRISE ORANGE) (NOT AVAILABLE) | Use up to Frame SN 2065309 This part replaces 83700-300-030LV.

83700-341-701LV

Unavailable

10

COVER, OIL TANK *Y2CC* (CANDY GOLD CUSTOM) (NOT AVAILABLE) | Use up to Frame SN 2065309 This part replaces 83700-300-030LX.

83700-341-701LX

Unavailable

10

COVER, OIL TANK *YR15MC* (BRIER BROWN METALLIC CUSTOM) (NOT AVAILABLE)

83700-341-701LU

Unavailable

10

COVER, OIL TANK *R2CF* (FLAKE SUNRISE ORANGE) (NOT AVAILABLE)

83700-341-701LV

Unavailable

10

COVER, OIL TANK *Y2CC* (CANDY GOLD CUSTOM) (NOT AVAILABLE)

83700-341-701LX

Unavailable

10

COVER, OIL TANK *PB27MC* (PLANET BLUE METALLIC CUSTOM) (NOT AVAILABLE) | Use from Frame SN 2065310

83700-341-701MV

Unavailable

12

EMBLEM A, BATTERY COVER

87123-300-030

$48.48

12

EMBLEM A, BATTERY COVER This part replaces 87123-341-000.

87123-300-030

$48.48

15

PLATE, OIL CAUTION (NOT AVAILABLE)

87125-300-010

Unavailable

16

EMBLEM, BATTERY

87126-300-405

Unavailable

16

EMBLEM, BATTERY This part replaces 87126-341-000.

87126-300-405

Unavailable

17

EMBLEM B, OIL

87127-300-405

Unavailable

17

EMBLEM B, OIL This part replaces 87127-341-000.

87127-300-405

Unavailable

18

BOLT A (6MM) (NOT AVAILABLE)

90141-300-000

Unavailable

19

NUT, SPEED (3MM) This part replaces 90313-512-000.

90313-567-000

$3.97

19

NUT, SPEED (3MM)

90313-567-000

$3.97

20

WASHER, DRAIN PLUG (12MM) This part replaces 90441-512-000.

94109-12000

$1.49

20

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

21

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

22

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

WASHER, PLAIN (8MM)

94101-08000

$1.49

25

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

26

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49
