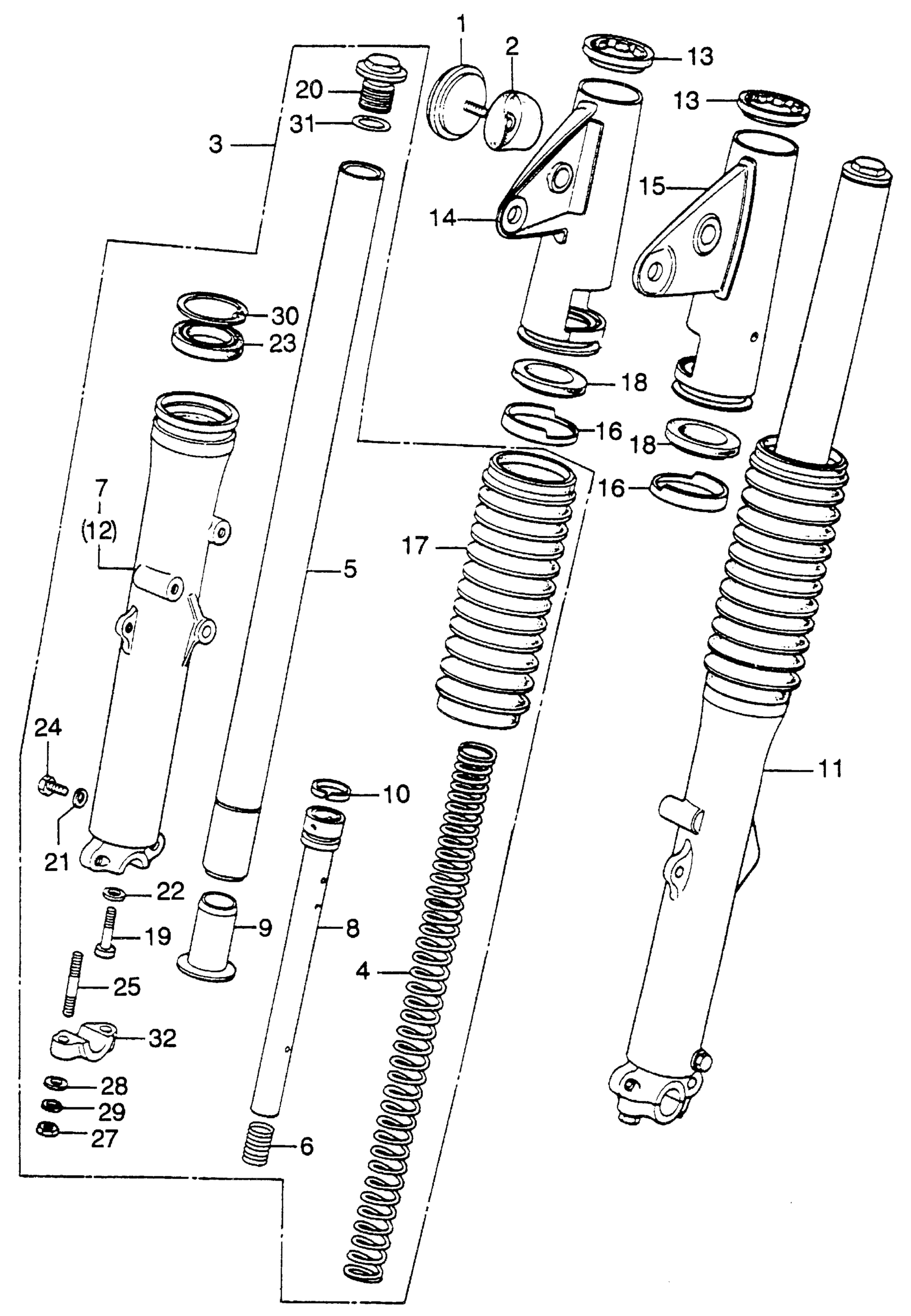

Honda CB750K2A MOTORCYCLE, JPN, VIN# CB750-2000001 FRONT FORK Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX | Use from Frame SN 2093731 This part replaces 33741-340-670.

33741-102-870

$35.84

2

BASE, FR. REFLEX REFLECTOR | Use from Frame SN 2093731

33743-341-670

Unavailable

3

FORK ASSY., R. FR. (NOT AVAILABLE) | Use from Frame SN 2093731 to 2102150 This part replaces 51400-341-701.

51400-341-702

Unavailable

3

FORK ASSY., R. FR. (NOT AVAILABLE) | Use from Frame SN 2093731

51400-341-702

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE) | Use from Frame SN 2093731

51401-341-700

Unavailable

5

PIPE, FR. FORK (NOT AVAILABLE) | Use from Frame SN 2093731

51410-341-702

Unavailable

6

SPRING, FR. FORK REBOUND | Use from Frame SN 2093731

51412-340-000

$4.78

7

CASE, R. FORK (LOWER) (NOT AVAILABLE) | Use from Frame SN 2093731

51421-341-701

Unavailable

8

PIPE (LOWER) (NOT AVAILABLE) | Use from Frame SN 2093731

51430-341-701

Unavailable

9

PIECE, OIL LOCK (NOT AVAILABLE) | Use from Frame SN 2093731 This part replaces 51432-340-000.

51432-357-000

Unavailable

9

PIECE, OIL LOCK (NOT AVAILABLE) | Use from Frame SN 2093731

51432-357-000

Unavailable

10

RING, PISTON | Use from Frame SN 2093731

51437-329-010

$7.14

11

FORK ASSY., L. FR. (NOT AVAILABLE) | Use from Frame SN 2093731 to 2102150 This part replaces 51500-341-701.

51500-341-702

Unavailable

11

FORK ASSY., L. FR. (NOT AVAILABLE) | Use from Frame SN 2093731

51500-341-702

Unavailable

12

CASE, L. FR. FORK (LOWER) (NOT AVAILABLE) | Use from Frame SN 2093731

51521-341-701

Unavailable

13

RUBBER, FORK COVER (UPPER) | Use from Frame SN 2093731

51601-300-000

$15.11

13

COVER, R. FR. FORK (UPPER) *MRCR2* (CHROME PLATING) (NOT AVAILABLE) | Use from Frame SN 2093731

51602-341-670XW

Unavailable

14

COVER, R. FR. FORK (UPPER) *MRCR2* (CHROME PLATING) (NOT AVAILABLE) | Use from Frame SN 2093731

51602-341-670XW

Unavailable

15

COVER, L. FR. FORK (UPPER) *MRCR2* (CHROME PLATING) (NOT AVAILABLE) | Use from Frame SN 2093731

51606-341-670XW

Unavailable

16

RIB, FR. FORK | Use from Frame SN 2093731

51608-300-000

$21.02

17

BOOT, FR. FORK | Use from Frame SN 2093731

51611-300-000

$48.26

18

RUBBER, FR. FORK COVER (LOWER) | Use from Frame SN 2093731

51622-292-010

$5.84

19

BOLT, SOCKET (8MM) (SHOWA) | Use from Frame SN 2093731 This part replaces 90116-283-010.

90116-383-721

$5.13

19

BOLT, SOCKET (8X27) | Use from Frame SN 2093731

90116-383-721

$5.13

20

BOLT, FR. FORK | Use from Frame SN 2093731

90123-300-000

$47.61

21

GASKET, FR. FORK DRAIN PETCOCK | Use from Frame SN 2093731

90543-273-000

$2.46

22

WASHER, SPECIAL (8MM) | Use from Frame SN 2093731

90544-283-000

$2.87

23

OIL SEAL (35X48X11) | Use from Frame SN 2093731 to 2102150

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) | Use from Frame SN 2093731

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) | Use from Frame SN 2093731 to 2102150 This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) | Use from Frame SN 2093731 This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) | Use from Frame SN 2093731 to 2102150 This part replaces 91255-300-023.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) | Use from Frame SN 2093731 to 2102150 This part replaces 91255-300-025.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) | Use from Frame SN 2093731 to 2102150 This part replaces 91255-300-033.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) | Use from Frame SN 2093731 This part replaces 91255-300-033.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) | Use from Frame SN 2093731 to 2102150 This part replaces 91255-323-013.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) | Use from Frame SN 2093731 This part replaces 91255-323-013.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) | Use from Frame SN 2093731 to 2102150 This part replaces 91255-434-003.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) | Use from Frame SN 2093731 This part replaces 91255-434-003.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) | Use from Frame SN 2093731 to 2102150 This part replaces 91255-434-013.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) | Use from Frame SN 2093731 This part replaces 91255-434-013.

91255-KBH-003

$13.24

24

BOLT, HEX. (6X10) | Use from Frame SN 2093731 This part replaces 92000-06010.

92101-06010-0A

$1.49

24

BOLT, HEX. (6X10) | Use from Frame SN 2093731

92101-06010-0A

$1.49

25

BOLT, STUD (8X50) | Use from Frame SN 2093731 This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

25

BOLT, STUD (8X50) | Use from Frame SN 2093731 This part replaces 92700-08050-30.

92900-08028-3B

$1.59

25

BOLT, STUD (8X50) | Use from Frame SN 2093731

92900-08028-3B

$1.59

26

NUT, HEX. (8MM) | Use from Frame SN 2093731

94030-08000

$1.49

27

NUT, HEX. (8MM) | Use from Frame SN 2093731

94030-08000

$1.49

28

WASHER, PLAIN (8MM) | Use from Frame SN 2093731

94101-08000

$1.49

29

WASHER, SPRING (8MM) | Use from Frame SN 2093731

94111-08000

$1.49

30

CIRCLIP (INNER) (48MM) (NOT AVAILABLE) | Use from Frame SN 2093731

94521-48000

Unavailable

31

O-RING (23X2.8) | Use from Frame SN 2093731

94608-50000

$1.49

32

HOLDER 1C, FR. FORK AXLE | Use from Frame SN 2093731

95014-41000

$13.38
