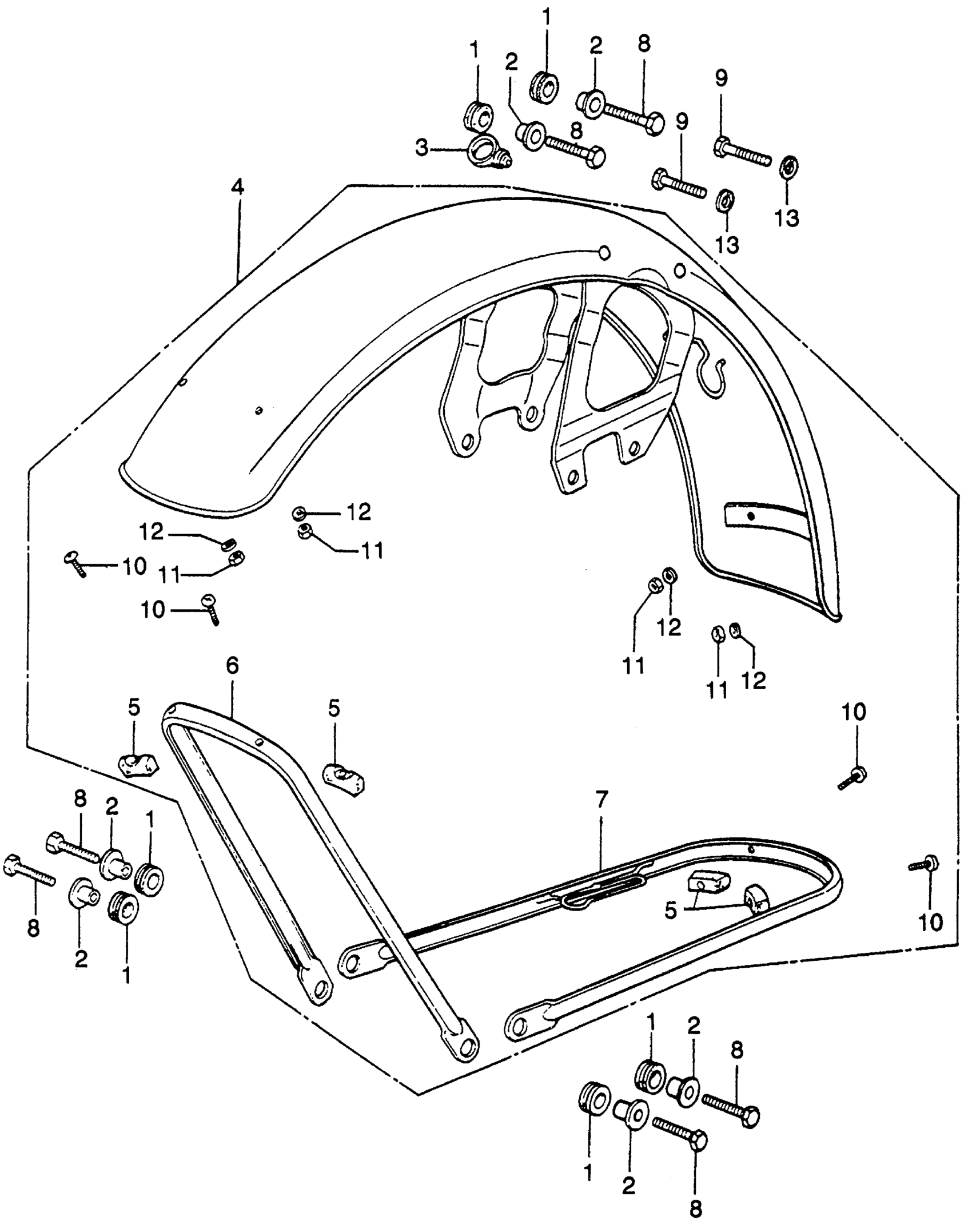

Honda CB750K2A MOTORCYCLE, JPN, VIN# CB750-2000001 FRONT FENDER Diagram

#

Description
Price

1

RUBBER, CHAIN CASE MOUNTING | Use from Frame SN 2093731

40513-310-000

$2.55

2

COLLAR, CHAIN CASE | Use from Frame SN 2093731

40514-310-000

$6.26

3

GROMMET, CABLE | Use from Frame SN 2093731 This part replaces 45451-283-000.

45451-367-690

$4.04

3

GROMMET, WIRE | Use from Frame SN 2093731

45451-367-690

$4.04

4

FENDER, FR. *MRCR2* (CHROME PLATING) | Use from Frame SN 2093731

61100-341-700XW

Unavailable

5

PIECE, FENDER MOUNT | Use from Frame SN 2093731

61102-300-000

$6.26

6

STAY A, FR. FENDER (NOT AVAILABLE) | Use from Frame SN 2093731

61111-341-700

Unavailable

7

STAY B, FR. FENDER (NOT AVAILABLE) | Use from Frame SN 2093731

61112-341-700

Unavailable

8

BOLT, HEX. (6X22) | Use from Frame SN 2093731 This part replaces 92000-06022.

92101-06022-0A

$1.54

8

BOLT, HEX. (6X22) | Use from Frame SN 2093731 This part replaces 92000-06022-00.

92101-06022-0A

$1.54

8

BOLT, HEX. (6X22) | Use from Frame SN 2093731

92101-06022-0A

$1.54

9

BOLT, HEX. (6X25) | Use from Frame SN 2093731 This part replaces 92000-06025.

92101-06025-0A

$1.62

9

BOLT, HEX. (6X25) | Use from Frame SN 2093731

92101-06025-0A

$1.62

10

SCREW, OVAL (5X25) | Use from Frame SN 2093731

93700-05025-0B

$1.49

11

NUT, HEX. (5MM) | Use from Frame SN 2093731

94001-05000-0S

$2.74

12

WASHER, SPRING (5MM) | Use from Frame SN 2093731

94111-05000

$1.49

13

WASHER, SPRING (6MM) | Use from Frame SN 2093731

94111-06000

$1.49
