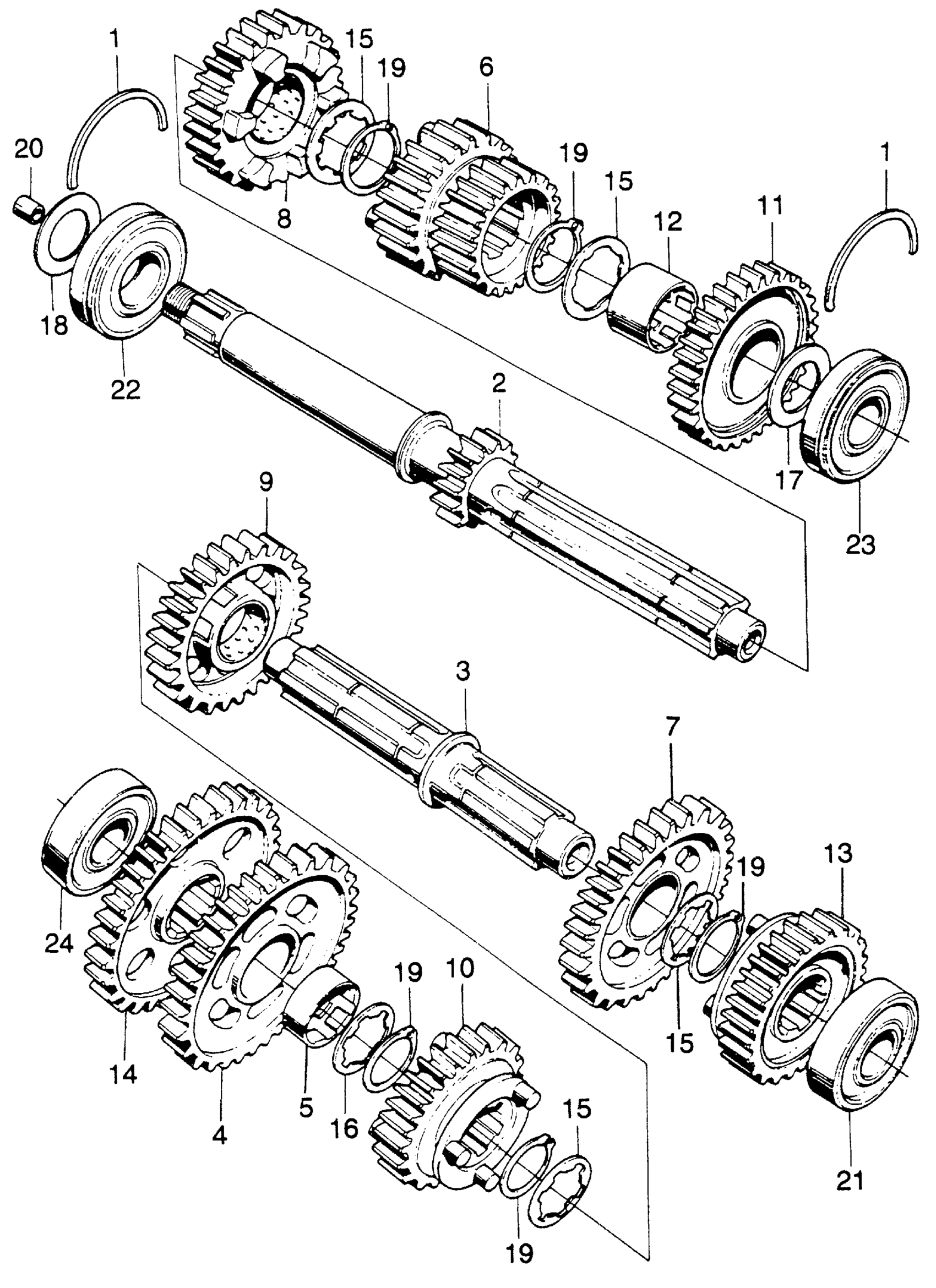

Honda CB750K1A MOTORCYCLE, JPN, VIN# CB750-1044650 TRANSMISSION Diagram

#

Description
Price

1

RING A, BALL BEARING SETTING (NOT AVAILABLE)

13495-300-000

Unavailable

2

MAINSHAFT, TRANSMISSION (18T) (NOT AVAILABLE) This part replaces 23210-300-000.

23210-392-000

Unavailable

2

MAINSHAFT, TRANSMISSION (18T) (NOT AVAILABLE)

23210-392-000

Unavailable

3

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23220-300-010

Unavailable

4

GEAR, COUNTERSHAFT LOW (45T) (NOT AVAILABLE)

23421-300-050

Unavailable

5

BUSH (29X14) (NOT AVAILABLE)

23425-300-010

Unavailable

6

GEAR, MAINSHAFT SECOND & THIRD (24T & 27T) This part replaces 23431-300-010.

23431-392-000

Unavailable

6

GEAR, MAINSHAFT SECOND & THIRD (24T & 27T) (NOT AVAILABLE)

23431-392-000

Unavailable

7

GEAR SET, COUNTERSHAFT SECOND This part replaces 23440-300-010.

23440-410-305

Unavailable

7

GEAR SET, COUNTERSHAFT SECOND This part replaces 23440-392-000.

23440-410-305

Unavailable

7

GEAR SET, COUNTERSHAFT SECOND (NOT AVAILABLE)

23440-410-305

Unavailable

8

GEAR, MAINSHAFT FOURTH (31T) (NOT AVAILABLE)

23450-300-010

Unavailable

9

GEAR ASSY., COUNTERSHAFT THIRD (36T) This part replaces 23460-300-010.

23460-410-305

Unavailable

9

GEAR ASSY., COUNTERSHAFT THIRD (36T) This part replaces 23460-392-000.

23460-410-305

Unavailable

9

GEAR ASSY., COUNTERSHAFT THIRD (36T)

23460-410-305

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (34T) (NOT AVAILABLE)

23471-300-010

Unavailable

11

GEAR, MAINSHAFT TOP (33T) (NOT AVAILABLE)

23481-300-020

Unavailable

12

BUSH, SPLINE (28MM) (NOT AVAILABLE) This part replaces 23485-300-020.

23485-392-000

Unavailable

13

GEAR, COUNTERSHAFT TOP (31T) (NOT AVAILABLE)

23491-300-010

Unavailable

14

GEAR, FINAL DRIVE (48T)

23501-300-030

Unavailable

15

WASHER, THRUST (25MM) (NOT AVAILABLE)

90451-300-000

Unavailable

16

WASHER (25X33) (NOT AVAILABLE)

90452-300-000

Unavailable

17

WASHER, THRUST (20MM)

90458-292-000

$3.54

18

WASHER A, THRUST (25MM) (NOT AVAILABLE)

90458-506-810

Unavailable

19

CIRCLIP (OUTER) (25MM)

90601-300-000

$3.83

20

PLUG, SPECIAL (10X10) (NOT AVAILABLE)

90809-300-300

Unavailable

21

BEARING, RADIAL BALL (6304) This part replaces 91001-035-000.

96100-63040-00

$14.40

21

BEARING, RADIAL BALL (6304) This part replaces 96100-63040.

96100-63040-00

$14.40

21

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40

22

BEARING This part replaces 91002-300-008.

91003-612-004

Unavailable

23

BEARING, BALL (6304HS) (NOT AVAILABLE)

91003-235-000

Unavailable

24

BEARING, RADIAL BALL (6204) This part replaces 96100-62040.

96100-62040-00

$12.22

24

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22
