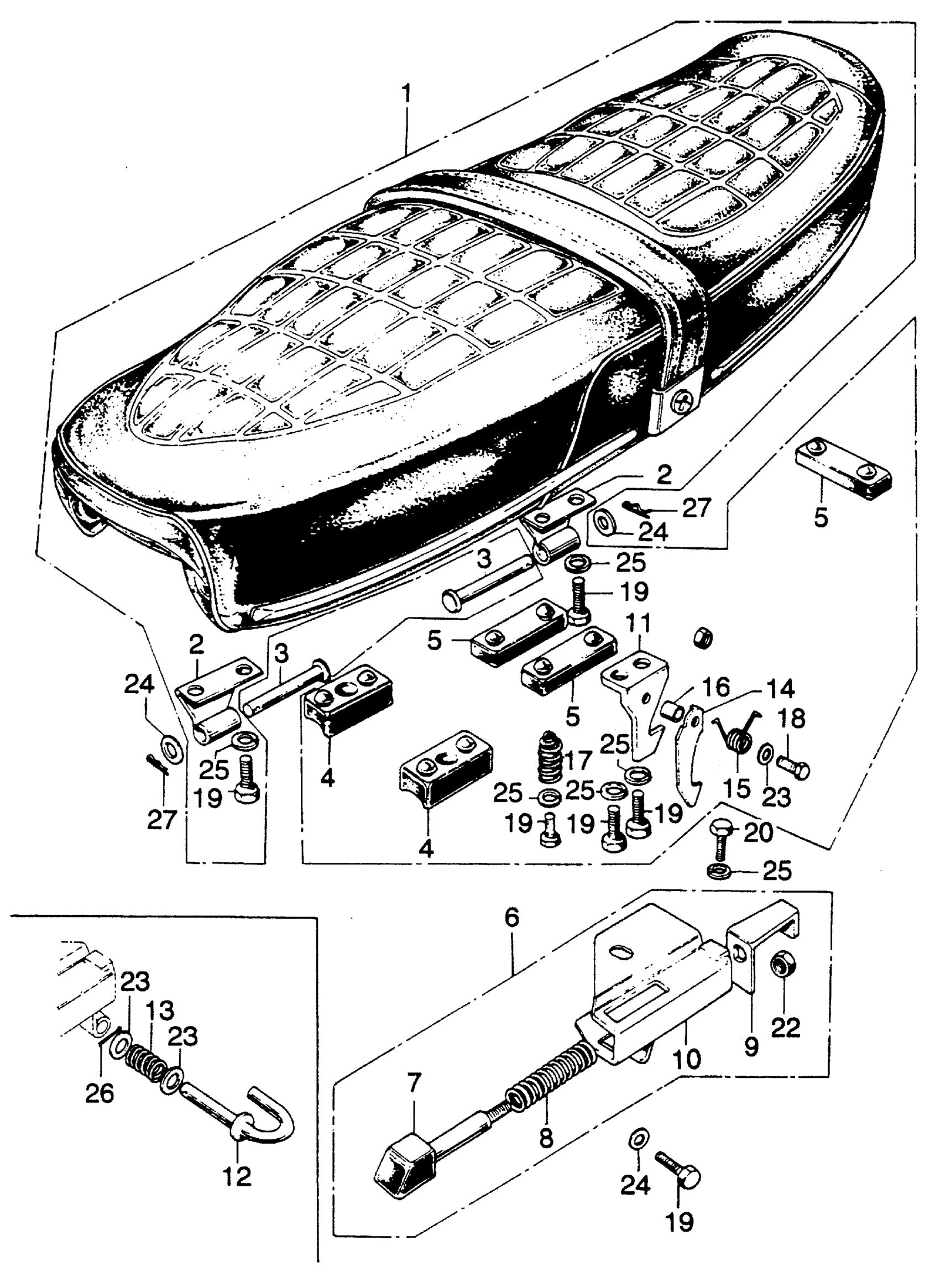

Honda CB750K1A MOTORCYCLE, JPN, VIN# CB750-1044650 SEAT K0-K1 Diagram

#

Description
Price

1

SEAT ASSY. *NH1L* (BLACK) (NOT AVAILABLE)

77200-300-030A

Unavailable

2

HINGE, SEAT (NOT AVAILABLE)

77201-300-010

Unavailable

3

BAR, SEAT HINGE

77203-300-000

$8.74

4

RUBBER, SEAT SETTING

77204-292-000

$9.11

5

RUBBER B, SEAT SETTING

77205-286-000

$5.28

6

CATCH, SEAT (NOT AVAILABLE)

77230-300-010

Unavailable

7

SLIDER, SEAT CATCH (NOT AVAILABLE)

77231-300-010

Unavailable

8

SPRING, SEAT CATCH (NOT AVAILABLE)

77232-300-000

Unavailable

9

LEVER, SEAT CATCH (NOT AVAILABLE)

77233-300-020

Unavailable

10

PLATE, SEAT CATCH (NOT AVAILABLE)

77234-300-020

Unavailable

11

HOOK, SEAT CATCH (NOT AVAILABLE)

77235-300-020

Unavailable

14

HOOK, SEAT CATCH SAFETY (NOT AVAILABLE)

77241-300-000

Unavailable

15

SPRING, SEAT SAFETY HOOK (NOT AVAILABLE)

77242-300-000

Unavailable

16

COLLAR, SEAT SAFETY HOOK (NOT AVAILABLE)

77243-300-000

Unavailable

17

SPRING, SEAT LIFT (NOT AVAILABLE)

77244-300-000

Unavailable

18

BOLT, HEX. (5X18) This part replaces 92000-05018-0A.

92101-05018-0A

$1.49

18

BOLT, HEX. (5X18)

92101-05018-0A

$1.49

19

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

19

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

19

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

22

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

23

WASHER, PLAIN (5MM)

94101-05000

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

WASHER, SPRING (6MM)

94111-06000

$1.49

26

PIN, SPLIT (1.6X12)

94201-16120

$1.49

27

PIN, LOCK (6MM)

94251-06000

$1.49
