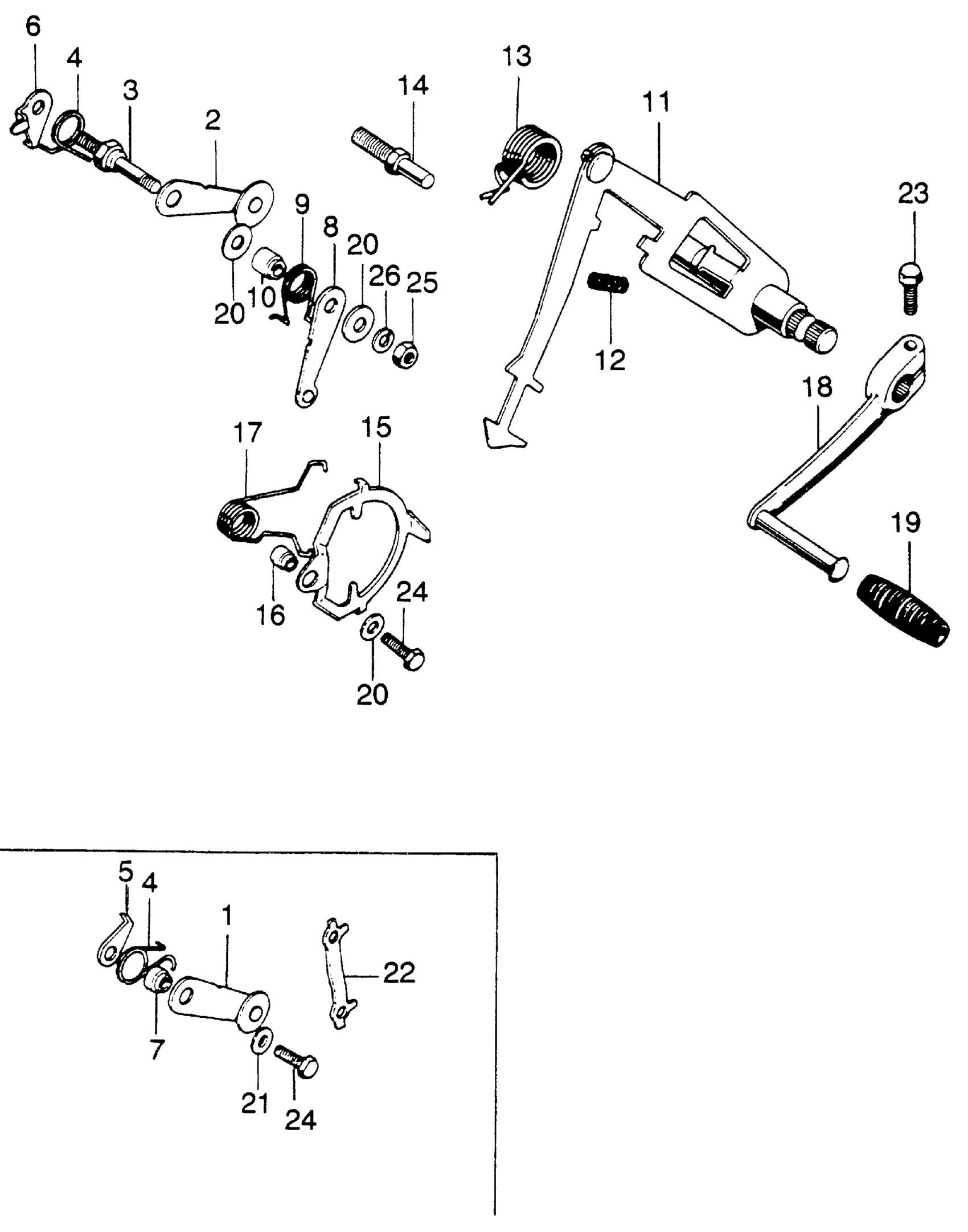

Honda CB750K1A MOTORCYCLE, JPN, VIN# CB750-1044650 GEAR SHIFT + DRUM STOPPER Diagram

#

Description
Price

2

STOPPER, GEARSHIFT DRUM (NOT AVAILABLE)

24430-300-040

Unavailable

3

SHAFT, SHIFT DRUM STOPPER PIVOT (NOT AVAILABLE)

24434-300-000

Unavailable

4

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-300-030

Unavailable

6

PLATE, GEARSHIFT FORK SHAFT STOPPER (NOT AVAILABLE)

24436-300-010

Unavailable

8

ARM, NEUTRAL STOPPER (NOT AVAILABLE) | Use up to Engine SN 1044967

24440-300-010

Unavailable

8

ARM, NEUTRAL STOPPER (NOT AVAILABLE) | Use from Engine SN 1044968

24440-300-020

Unavailable

9

SPRING, NEUTRAL STOPPER (NOT AVAILABLE) | Use up to Engine SN 1044967

24445-300-010

Unavailable

9

SPRING, NEUTRAL STOPPER (NOT AVAILABLE) | Use from Engine SN 1044968

24445-300-020

Unavailable

10

PIVOT, NEUTRAL STOPPER (NOT AVAILABLE)

24447-300-000

Unavailable

11

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-300-010

Unavailable

12

SPRING, GEARSHIFT ARM (NOT AVAILABLE)

24641-300-000

Unavailable

13

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-300-020

Unavailable

14

PIN, SHIFT RETURN SPRING (NOT AVAILABLE)

24652-300-000

Unavailable

15

STOPPER, GEARSHIFT POSITIVE (NOT AVAILABLE)

24661-300-000

Unavailable

16

COLLAR, STOPPER ARM (NOT AVAILABLE)

24663-300-000

Unavailable

17

SPRING, POSITIVE STOPPER (NOT AVAILABLE)

24666-300-000

Unavailable

18

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-300-020

Unavailable

19

RUBBER, CHANGE PEDAL This part replaces 24781-205-000.

95011-40000

$1.49

19

RUBBER, CHANGE PEDAL This part replaces 24781-268-000.

95011-40000

$1.49

19

RUBBER, CHANGE PEDAL

95011-40000

$1.49

20

WASHER, SHIFT DRUM SIDE (NOT AVAILABLE)

90417-001-000

Unavailable

23

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

23

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

24

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

24

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

25

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM)

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

26

WASHER, SPRING (6MM)

94111-06000

$1.49
