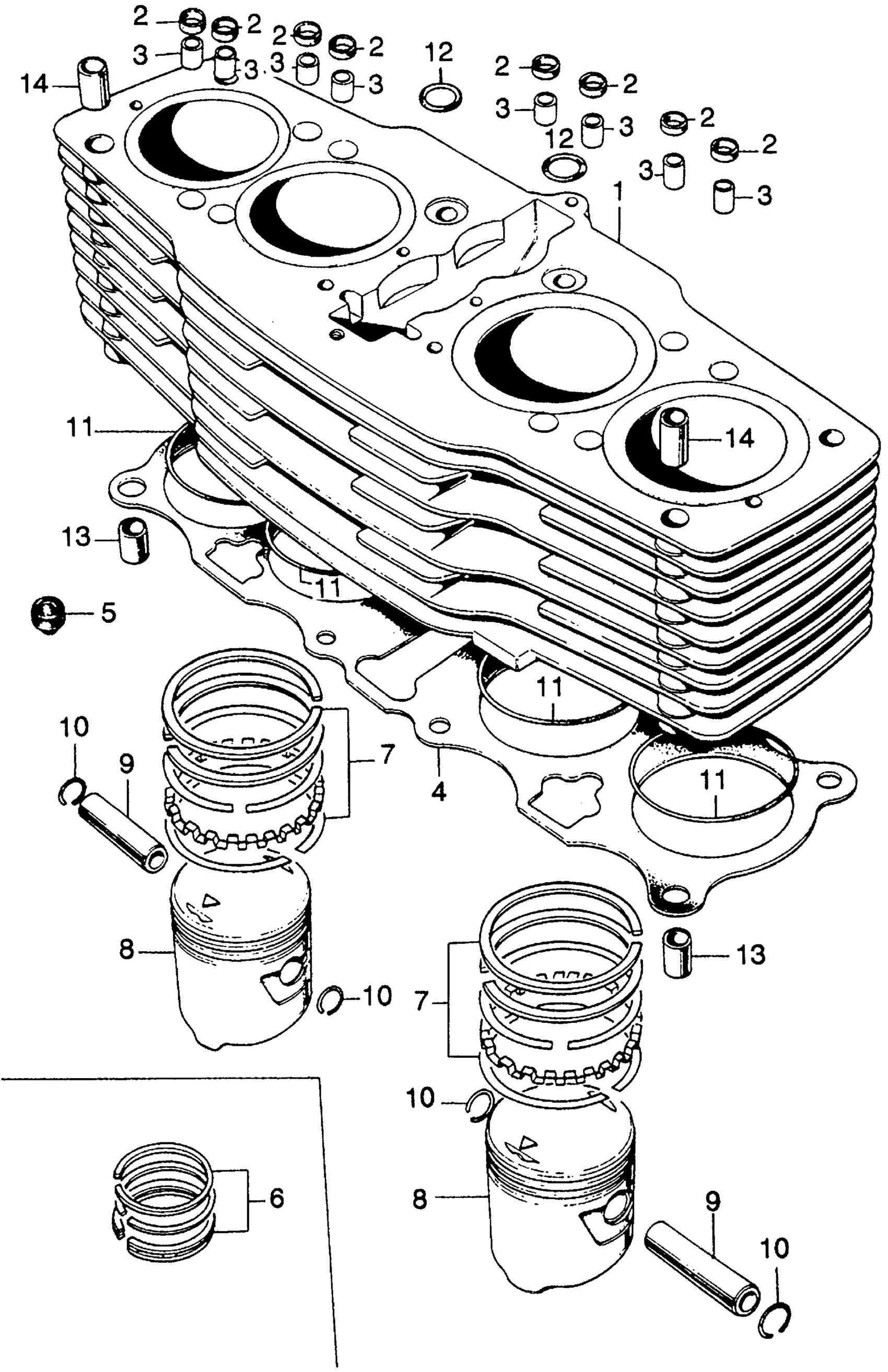

Honda CB750K1A MOTORCYCLE, JPN, VIN# CB750-1044650 CYLINDER + PISTON Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE) This part replaces 12100-300-030.

12100-300-060

Unavailable

1

CYLINDER (NOT AVAILABLE) This part replaces 12100-300-040.

12100-300-060

Unavailable

1

CYLINDER (NOT AVAILABLE) This part replaces 12100-300-050.

12100-300-060

Unavailable

1

CYLINDER (NOT AVAILABLE)

12100-300-060

Unavailable

4

GASKET, CYLINDER This part replaces 12191-300-020.

12191-300-306

Unavailable

4

GASKET, CYLINDER This part replaces 12191-300-030.

12191-300-306

Unavailable

5

RUBBER, INSERT This part replaces 12195-300-000.

12620-286-000

$5.85

5

RUBBER, INSERT

12620-286-000

$5.85

6

RING SET, PISTON (STD) (RIKEN) This part replaces 13011-300-013.

13011-300-024

Unavailable

6

RING SET, PISTON (STD) (RIKEN)

13011-300-024

Unavailable

6

RING SET, PISTON (OS 0.25) (RIKEN) | (Optional). This part replaces 13021-300-013.

13021-300-024

Unavailable

6

RING SET, PISTON (OS 0.50) (RIKEN) | (Optional). This part replaces 13031-300-013.

13031-300-024

Unavailable

6

RING SET, PISTON (0.75) (RIKEN) (NOT AVAILABLE) | (Optional). This part replaces 13041-300-013.

13041-300-024

Unavailable

6

RING SET, PISTON (1.00) (RIKEN) (NOT AVAILABLE) | (Optional). This part replaces 13051-300-013.

13051-300-024

Unavailable

6

RING SET, PISTON (1.00) (RIKEN) | (Optional).

13051-300-024

Unavailable

8

PISTON (STD) This part replaces 13101-300-020.

13101-300-030

Unavailable

8

PISTON (OS 0.25) | (Optional). This part replaces 13102-300-020.

13102-300-030

$88.98

8

PISTON (OS 0.50) | (Optional). This part replaces 13103-300-020.

13103-300-030

Unavailable

8

PISTON (0.75) (NOT AVAILABLE) | (Optional). This part replaces 13104-300-020.

13104-300-030

Unavailable

8

PISTON (1.00) (NOT AVAILABLE) | (Optional). This part replaces 13105-300-020.

13105-300-030

Unavailable

8

PISTON (STD) (NOT AVAILABLE)

13101-300-030

Unavailable

8

PISTON (OVER SIZE) (0.25) (NOT AVAILABLE) | (Optional).

13102-300-030

$88.98

8

PISTON (OVER SIZE) (0.50) (NOT AVAILABLE) | (Optional).

13103-300-030

Unavailable

8

PISTON (OVER SIZE) (0.75) (NOT AVAILABLE) | (Optional).

13104-300-030

Unavailable

8

PISTON (1.00) | (Optional).

13105-300-030

Unavailable

9

PIN, PISTON

13111-300-000

$15.82

10

CLIP, PISTON PIN (15MM) This part replaces 13115-250-010.

94601-15000

$1.49

10

CLIP, PISTON PIN (15MM) This part replaces 90551-883-000.

94601-15000

$1.49

10

CLIP, PISTON PIN (15MM)

94601-15000

$1.49

11

O-RING (61.8X2.0)

91304-286-000

$10.25

12

O-RING (11X2.5) This part replaces 91309-035-000.

91310-426-000

$5.19

12

O-RING (11X2.5)

91310-426-000

$5.19

12

O-RING (11X2.5) This part replaces 91314-MA6-005.

91310-426-000

$5.19

13

PIN, DOWEL (12X15) (NOT AVAILABLE)

94301-12150

Unavailable

14

PIN, DOWEL (12X22) (NOT AVAILABLE)

94301-12220

Unavailable
