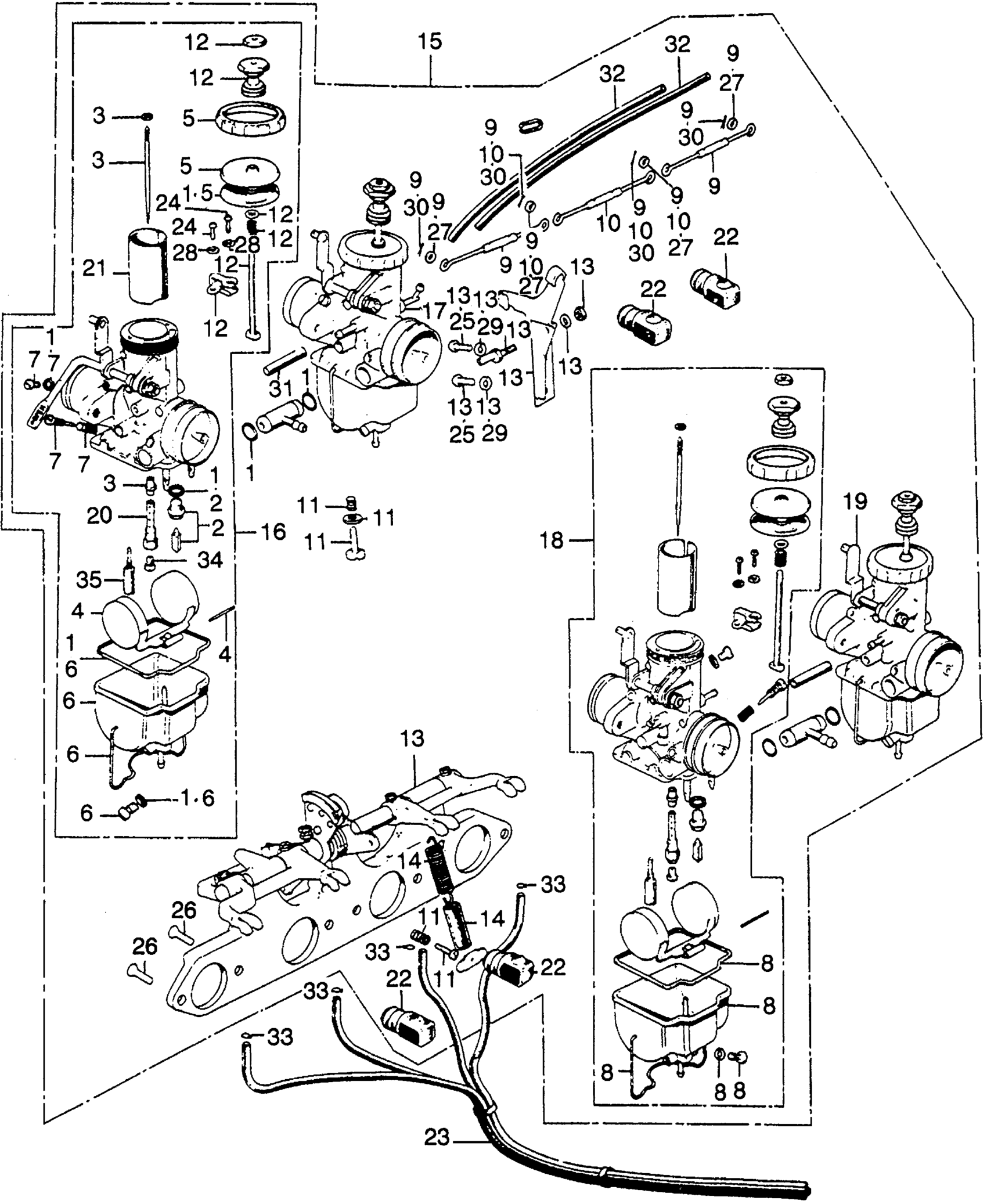

Honda CB750K1A MOTORCYCLE, JPN, VIN# CB750-1044650 CARBURETOR K1-K2 Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-300-014.

16010-300-305

$27.30

1

GASKET SET

16010-300-305

$27.30

2

VALVE SET, FLOAT This part replaces 16011-302-004.

16011-375-004

$28.96

2

VALVE SET, FLOAT

16011-375-004

$28.96

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-300-014

Unavailable

4

FLOAT SET

16013-300-004

Unavailable

5

TOP SET (NOT AVAILABLE)

16014-300-014

Unavailable

6

CHAMBER SET A, FLOAT (NOT AVAILABLE)

16015-300-004

Unavailable

7

SCREW SET A (NOT AVAILABLE)

16016-300-014

Unavailable

8

CHAMBER SET B, FLOAT (NOT AVAILABLE)

16023-300-004

Unavailable

9

ROD SET A, CHOKE (NOT AVAILABLE)

16025-300-004

Unavailable

10

ROD SET B, CHOKE (NOT AVAILABLE)

16026-300-004

Unavailable

11

SCREW SET B (NOT AVAILABLE)

16028-300-004

Unavailable

12

ROD SET, THROTTLE (NOT AVAILABLE)

16032-300-004

Unavailable

13

PLATE SET, STAY (NOT AVAILABLE)

16035-300-004

Unavailable

14

TUBE SET, PROTECT (NOT AVAILABLE)

16036-300-004

Unavailable

15

CARBURETOR ASSY. (NOT AVAILABLE)

16100-300-024

Unavailable

16

CARBURETOR ASSY. A (NOT AVAILABLE)

16101-300-024

Unavailable

17

CARBURETOR ASSY. B (NOT AVAILABLE)

16102-300-024

Unavailable

18

CARBURETOR ASSY. C (NOT AVAILABLE)

16103-300-024

Unavailable

19

CARBURETOR ASSY. D (NOT AVAILABLE)

16104-300-024

Unavailable

20

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-300-004

Unavailable

21

VALVE, THROTTLE (NOT AVAILABLE)

16141-300-014

Unavailable

22

CAP, DUST

16154-300-004

$23.26

23

TUBE, OVERFLOW (NOT AVAILABLE) | Use up to Engine SN 1075861 This part replaces 16290-300-000.

16290-300-010

Unavailable

23

TUBE, OVERFLOW (NOT AVAILABLE)

16290-300-010

Unavailable

24

SCREW, PAN (3X10)

93500-03010-0A

$1.49

25

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

25

SCREW, PAN (6X12)

93500-06012-0A

$1.49

25

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

26

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

26

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

27

WASHER, PLAIN (5MM)

94101-05000

$1.49

28

WASHER, SPRING (3MM)

94111-03000

$1.49

29

WASHER, SPRING (6MM)

94111-06000

$1.49

30

PIN, SPLIT (1.0MM) This part replaces 94201-10080.

94201-10150

$1.49

30

PIN, SPLIT (1.0MM) This part replaces 94201-10100.

94201-10150

$1.49

30

PIN, SPLIT (1.0MM)

94201-10150

$1.49

30

BULK HOSE, FUEL (3.5X3000) (3.5X26)

95001-35003-60M

$20.85

30

BULK HOSE, FUEL (3.5X3000) (3.5X240)

95001-35003-60M

$20.85

31

CLIP, TUBE (B7) | Use from Engine SN 1075862

95002-02070

$1.80

32

JET, MAIN (#120)

99114-246-1200

$8.10

33

JET, SLOW (#40) (NOT AVAILABLE) | Use from Engine SN 1044813 to 1132192

99124-300-0400

Unavailable
