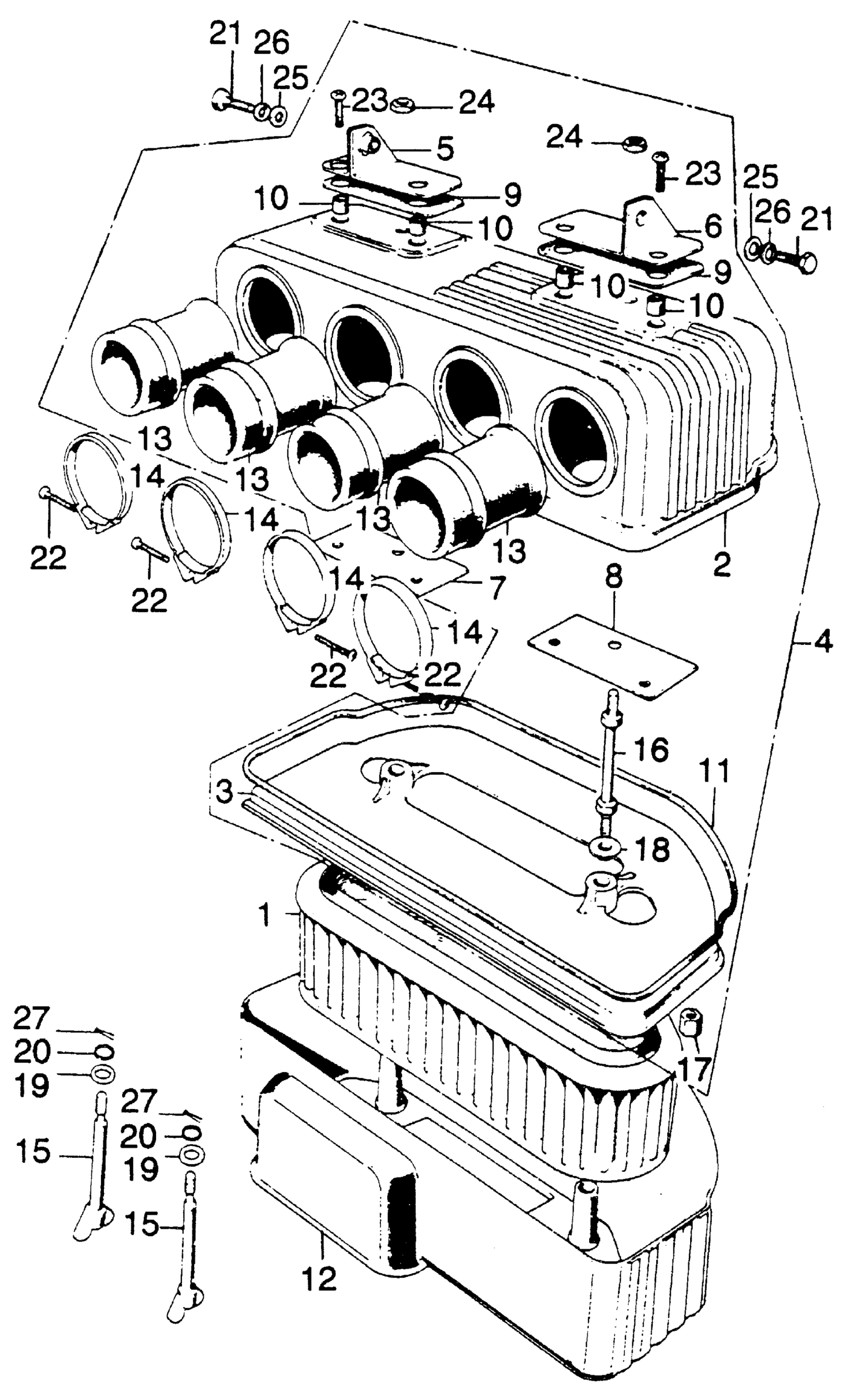

Honda CB750K1A MOTORCYCLE, JPN, VIN# CB750-1044650 AIR CLEANER CASE + ELEMENT Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER This part replaces 17211-300-020.

17211-405-000

Unavailable

1

ELEMENT, AIR CLEANER This part replaces 17211-341-000.

17211-405-000

Unavailable

1

ELEMENT, AIR CLEANER This part replaces 17211-392-000.

17211-405-000

Unavailable

1

ELEMENT, AIR CLEANER

17211-405-000

Unavailable

4

HOUSING, AIR CLEANER *PB2C* (CANDY BLUE GREEN) (NOT AVAILABLE)

17214-300-040AZ

Unavailable

4

HOUSING, AIR CLEANER *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

17214-300-040CM

Unavailable

4

HOUSING, AIR CLEANER *Y2C* (CANDY GOLD) (NOT AVAILABLE) | Use from Frame SN 1019210

17214-300-040CQ

Unavailable

5

STAY, R. AIR CLEANER HOUSING (NOT AVAILABLE) | Use up to Frame SN 1004006

17215-300-010

Unavailable

5

STAY, R. AIR CLEANER HOUSING (NOT AVAILABLE) | Use from Frame SN 1004007

17215-300-020

Unavailable

6

STAY, L. AIR CLEANER HOUSING (NOT AVAILABLE) | Use up to Frame SN 1004006

17216-300-010

Unavailable

6

STAY, L. AIR CLEANER HOUSING (NOT AVAILABLE) | Use from Frame SN 1004007

17216-300-020

Unavailable

9

RUBBER, CLEANER CASE MOUNT (NOT AVAILABLE) | Use from Frame SN 1004007

17219-300-000

Unavailable

10

COLLAR, AIR CLEANER HOUSING MOUNT (NOT AVAILABLE) | Use from Frame SN 1004007

17220-300-000

Unavailable

12

COVER, AIR CLEANER *PB2C* (CANDY BLUE GREEN) (NOT AVAILABLE)

17231-300-020AZ

Unavailable

12

COVER, AIR CLEANER *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

17231-300-020CM

Unavailable

12

COVER, AIR CLEANER *Y2C* (CANDY GOLD) (NOT AVAILABLE) | Use from Frame SN 1019210

17231-300-020CQ

Unavailable

13

TUBE, AIR CLEANER CONNECTING This part replaces 17253-300-330.

17253-341-300

$16.85

13

TUBE, AIR CLEANER CONNECTING

17253-341-300

$16.85

14

BAND, AIR CLEANER CONNECTING TUBE (46) This part replaces 17255-230-000.

95018-46250

$7.64

15

BOLT, AIR CLEANER COVER | Use up to Frame SN 1030390 This part replaces 90143-300-010.

90143-300-020

$8.99

15

BOLT, AIR CLEANER COVER | Use up to Frame SN 1030390

90143-300-020

$8.99

15

BOLT, AIR CLEANER COVER

90143-300-020

$8.99

19

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

19

WASHER (18MM)

90581-831-650

$1.87

20

O-RING (6MM)

91301-704-000

$2.92

21

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

22

SCREW, PAN (4X20)

93500-04020-0A

$1.49

23

SCREW, PAN (6X12) | Use up to Frame SN 1004006 This part replaces 93500-06012.

93500-06012-0A

$1.49

23

SCREW, PAN (6X12) | Use up to Frame SN 1004006

93500-06012-0A

$1.49

23

SCREW, PAN (6X12) | Use up to Frame SN 1004006 This part replaces 93500-06012-00.

93500-06012-0A

$1.49

23

SCREW, PAN (6X20) | Use from Frame SN 1004007 This part replaces 93500-06020.

93500-06020-0A

$1.49

23

SCREW, PAN (6X20) | Use from Frame SN 1004007

93500-06020-0A

$1.49

24

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM)

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

WASHER, SPRING (6MM)

94111-06000

$1.49

27

PIN, SPLIT (2.0X15) | Use from Frame SN 1030391

94201-20150

$1.49
