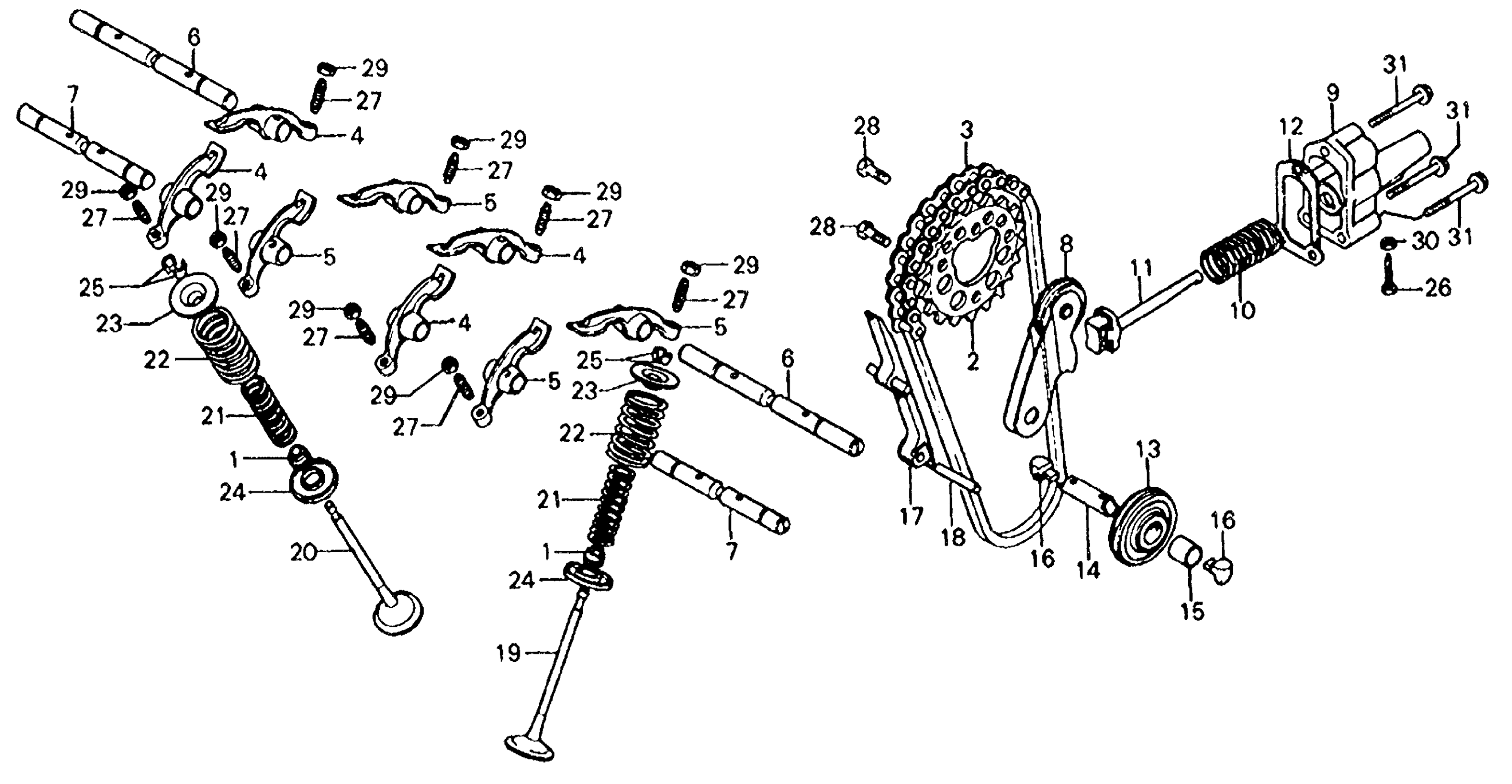

Honda CB750FA MOTORCYCLE, JPN, VIN# CB750F-1000002 TO CB750F-1015054 VALVE + CAM CHAIN TENSIONER Diagram

#

Description
Price

1

SEAL, VALVE STEM (NOK)

12209-MB9-003

$12.43

1

SEAL, VALVE STEM (NOK) This part replaces 12209-300-003.

12209-MB9-003

$12.43

2

SPROCKET, CAM

14321-392-000

Unavailable

3

CHAIN, CAM This part replaces 14401-286-003.

14401-410-003

Unavailable

3

CHAIN, CAM

14401-410-003

Unavailable

4

ARM A, VALVE ROCKER

14431-300-030

Unavailable

5

ARM B, VALVE ROCKER

14432-300-030

Unavailable

6

SHAFT, IN. ROCKER ARM (NOT AVAILABLE)

14461-300-020

Unavailable

7

SHAFT, EX. ROCKER ARM (NOT AVAILABLE)

14462-300-010

Unavailable

8

TENSIONER, CAM CHAIN

14500-300-000

$88.89

9

HOLDER, CAM CHAIN TENSIONER

14530-300-010

Unavailable

10

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE)

14541-300-000

Unavailable

11

BAR, CAM CHAIN TENSIONER PUSH (NOT AVAILABLE)

14550-300-030

Unavailable

12

PLATE, TENSIONER This part replaces 14592-300-000.

14592-300-306

Unavailable

12

PLATE, TENSIONER

14592-300-306

Unavailable

13

ROLLER, CAM CHAIN GUIDE

14601-312-000

$35.03

14

PIN, CAM CHAIN ROLLER (NOT AVAILABLE)

14605-286-020

Unavailable

15

COLLAR, CAM CHAIN ROLLER (NOT AVAILABLE)

14606-286-000

Unavailable

16

RUBBER, CAM CHAIN ROLLER PIN

14607-300-000

$8.56

17

GUIDE, CAM CHAIN

14611-300-000

Unavailable

18

PIN, CAM CHAIN GUIDE (NOT AVAILABLE)

14612-286-000

Unavailable

19

VALVE, IN.

14711-ME2-000

Unavailable

19

VALVE, IN. This part replaces 14711-300-005.

14711-ME2-000

Unavailable

20

VALVE, EX. (MITSUBISHI)

14721-300-005

Unavailable

21

SPRING, VALVE (INNER)

14751-300-003

Unavailable

22

SPRING, VALVE (OUTER)

14761-300-003

Unavailable

23

RETAINER, VALVE SPRING

14771-551-020

Unavailable

24

SEAT, VALVE SPRING (NOT AVAILABLE) This part replaces 14775-300-000.

14775-410-010

Unavailable

24

SEAT, VALVE SPRING (NOT AVAILABLE)

14775-410-010

Unavailable

25

COTTER, VALVE

14781-551-000

$6.44

26

BOLT, TENSIONER ADJUSTING (NOT AVAILABLE)

90009-300-010

Unavailable

27

SCREW, TAPPET ADJUSTING This part replaces 90012-300-000.

90012-426-000

$5.94

27

SCREW, TAPPET ADJ.

90012-426-000

$5.94

28

BOLT, FLANGE KNOCK (7X10.5) This part replaces 90081-246-000.

90082-HA0-000

$1.97

28

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

29

NUT, TAPPET ADJ. This part replaces 90205-300-000.

90206-250-000

$2.94

29

NUT, TAPPET ADJ.

90206-250-000

$2.94

30

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

30

NUT, HEX. (6MM)

94002-06000-0S

$1.49

31

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

31

BOLT, FLANGE (6X40)

95701-06040-00

$1.80
