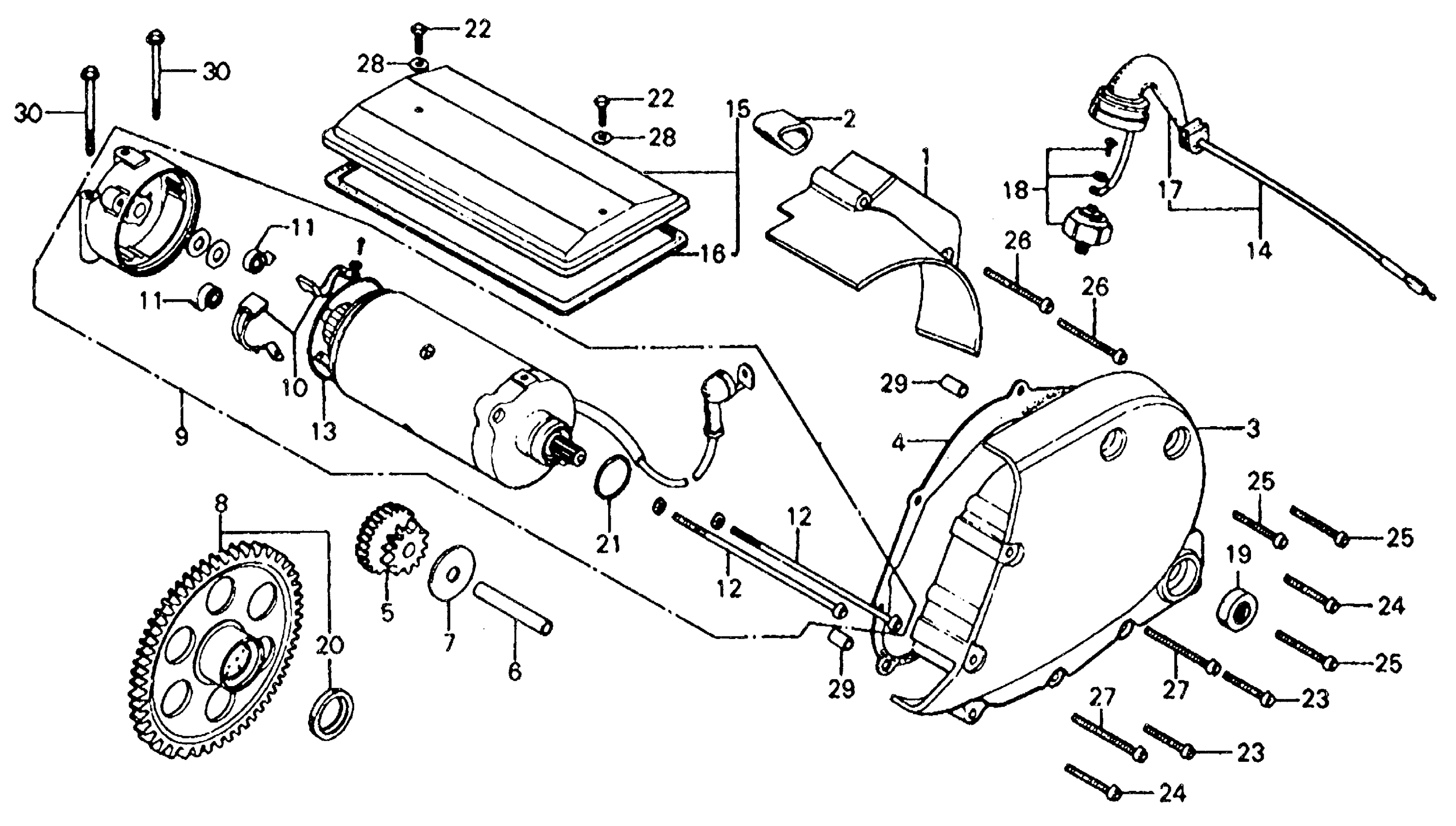

Honda CB750FA MOTORCYCLE, JPN, VIN# CB750F-1000002 TO CB750F-1015054 STARTER MOTOR + CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11351-300-060

Unavailable

2

RUBBER, FINAL CHAIN GUIDE (NOT AVAILABLE)

11354-300-010

Unavailable

3

COVER, CRANKCASE TRANSMISSION (NOT AVAILABLE)

11360-300-050

Unavailable

4

GASKET, TRANSMISSION COVER This part replaces 11395-300-040.

11395-300-306

$19.33

4

GASKET, TRANSMISSION COVER

11395-300-306

$19.33

5

GEAR, STARTER MOTOR REDUCTION (NOT AVAILABLE)

28101-300-000

Unavailable

6

SHAFT, STARTER REDUCTION GEAR (NOT AVAILABLE)

28106-300-000

Unavailable

7

PLATE, STARTER GEAR SETTING (NOT AVAILABLE)

28109-300-000

Unavailable

8

GEAR, STARTER CLUTCH (NOT AVAILABLE)

28110-300-000

Unavailable

9

MOTOR ASSY., STARTER (NOT AVAILABLE)

31200-300-030

Unavailable

10

BRUSH SET, CARBON

31201-292-158

$26.15

11

SPRING, CARBON BRUSH

31204-292-158

$3.83

12

BOLT, SETTING (NOT AVAILABLE)

31205-286-158

Unavailable

13

O-RING (60X1.4) This part replaces 31206-286-158.

31206-402-008

Unavailable

13

O-RING (60X1.4)

31206-402-008

Unavailable

14

WIRE ASSY., OIL PRESSURE SWITCH (SUMITOMO) (NOT AVAILABLE)

31270-300-154

Unavailable

15

COVER, STARTER MOTOR (NOT AVAILABLE)

31280-300-000

Unavailable

16

GASKET, STARTER MOTOR COVER (NOT AVAILABLE)

31282-300-020

Unavailable

17

GROMMET, OIL PRESSURE SWITCH WIRE (NOT AVAILABLE)

31283-300-000

Unavailable

18

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-333-004.

37240-P13-013

$44.49

18

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-333-014.

37240-P13-013

$44.49

18

SWITCH ASSY., OIL PRESSURE (DENSO)

37240-P13-013

$44.49

19

OIL SEAL (14X28X7) (ARAI) This part replaces 91206-286-005.

91206-286-013

$3.01

19

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

20

OIL SEAL (25X33X4)

91215-300-003

Unavailable

21

O-RING (24.4X3.1) This part replaces 91309-300-000.

91312-MG7-003

$6.34

21

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

21

O-RING (24.4X3.1)

91312-MG7-003

$6.34

22

BOLT, HEX. (6X12) This part replaces 92000-06012-02.

92101-06012-0B

$1.49

22

BOLT, HEX. (6X12)

92101-06012-0B

$1.49

23

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

23

SCREW, PAN (6X32)

93500-06032-0A

$1.49

24

SCREW, PAN (6X35)

93500-06035-0A

$1.49

24

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

25

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

25

SCREW, PAN (6X40)

93500-06040-0A

$1.49

26

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

26

SCREW, PAN (6X50)

93500-06050-0A

$1.49

27

SCREW, PAN (6X55)

93500-06055-0A

$1.49

27

SCREW, PAN (6X55) This part replaces 93500-06056.

93500-06055-0A

$1.49

28

WASHER, PLAIN (6MM)

94101-06200

$1.49

29

PIN A, DOWEL (8X14)

94301-08140

$2.25

30

BOLT, FLANGE (6X56) (NOT AVAILABLE)

95700-06056-00

Unavailable
