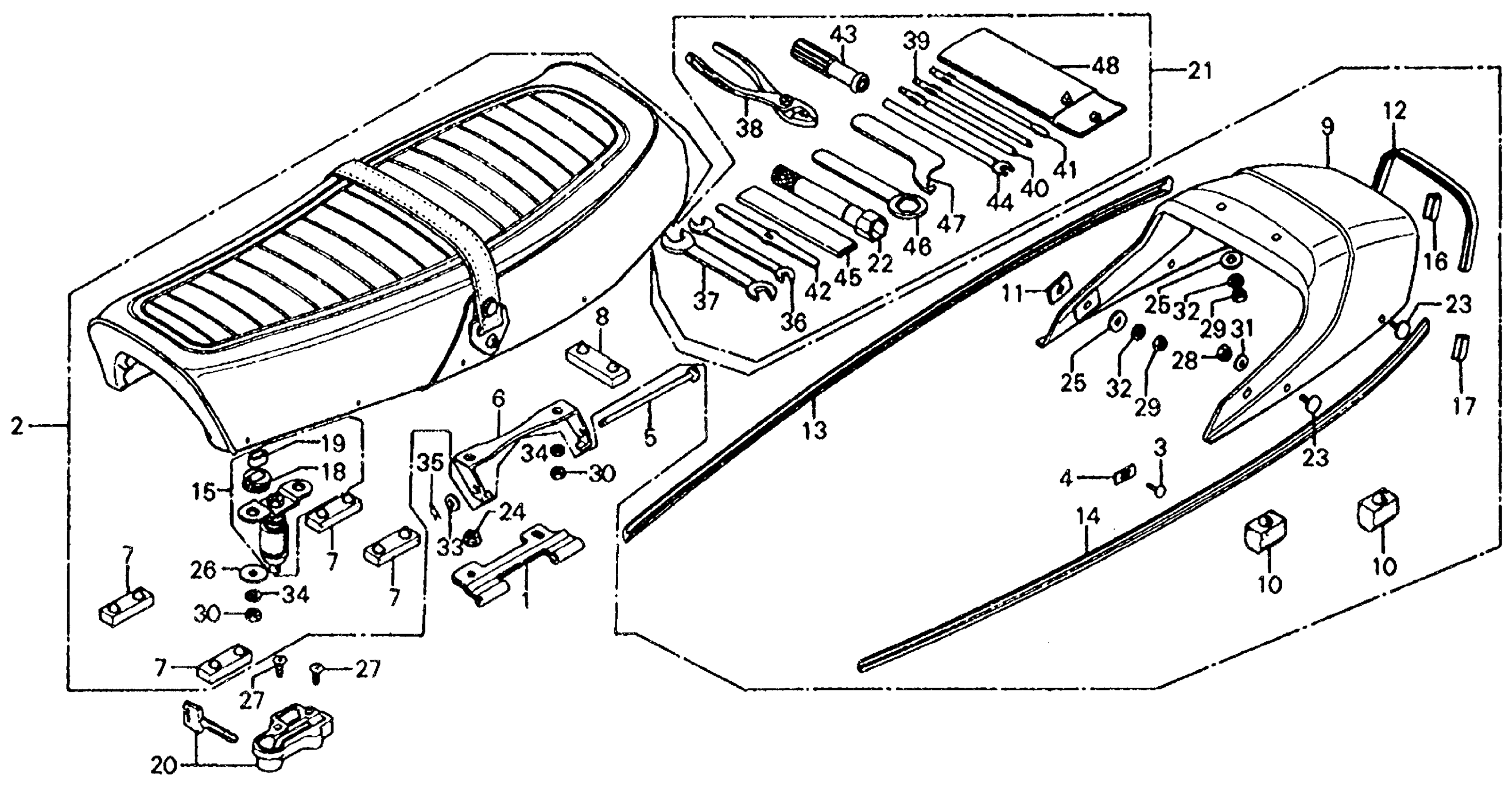

Honda CB750FA MOTORCYCLE, JPN, VIN# CB750F-1000002 TO CB750F-1015054 SEAT + TOOLS Diagram

#

Description
Price

1

PLATE A, SEAT HINGE (NOT AVAILABLE)

50223-392-000

Unavailable

2

SEAT ASSY. *R2CF* (FLAKE SUNRISE ORANGE) (NOT AVAILABLE)

77100-392-000ZA

Unavailable

2

SEAT ASSY. *PB3CC* (CANDY SAPPHIRE BLUE CUSTOM) (NOT AVAILABLE)

77100-392-000ZB

Unavailable

3

RIVET (4X18) (NOT AVAILABLE)

77101-392-000

Unavailable

4

WASHER, RIVET (NOT AVAILABLE)

77102-392-000

Unavailable

5

BAR, SEAT HINGE (NOT AVAILABLE)

77103-369-000

Unavailable

6

HINGE, SEAT (NOT AVAILABLE)

77201-369-000

Unavailable

7

RUBBER, SEAT SETTING

77204-312-000

$5.05

8

RUBBER B, SEAT SETTING

77205-286-000

$5.28

9

COVER, RR. SEAT *R2CF* (FLAKE SUNRISE ORANGE) (NOT AVAILABLE)

77210-392-000ZA

Unavailable

9

COVER, RR. SEAT *PB3CC* (CANDY SAPPHIRE BLUE CUSTOM) (NOT AVAILABLE)

77210-392-000ZB

Unavailable

10

RUBBER, RR. COVER MOUNT (NOT AVAILABLE)

77211-392-000

Unavailable

11

RUBBER, SEAT MOUNT (NOT AVAILABLE)

77212-392-000

Unavailable

12

MOLDING, RR. COVER (NOT AVAILABLE)

77215-392-000

Unavailable

13

MOLDING, R. RR. SEAT *NH1* (BLACK) (NOT AVAILABLE) This part replaces 77216-392-010ZA.

77216-392-010ZH

Unavailable

13

MOLDING, R. RR. SEAT *NH1* (BLACK) (NOT AVAILABLE) This part replaces 77216-392-010ZB.

77216-392-010ZH

Unavailable

14

MOLDING, L. RR. SEAT *NH1* (BLACK) (NOT AVAILABLE) This part replaces 77217-392-010ZA.

77217-392-010ZH

Unavailable

14

MOLDING, L. SEAT *PB3CC* (CANDY SAPPHIRE BLUE CUSTOM) (NOT AVAILABLE)

77217-392-010ZB

Unavailable

15

BAR ASSY., SEAT LOCK

77220-340-003

Unavailable

15

BAR ASSY., SEAT LOCK This part replaces 77220-340-010.

77220-340-003

Unavailable

15

BAR ASSY., SEAT LOCK This part replaces 77220-340-011.

77220-340-003

Unavailable

16

GARNISH, R. SEAT (NOT AVAILABLE)

77226-392-300

Unavailable

17

GARNISH, R. SEAT (NOT AVAILABLE) This part replaces 77227-392-300.

77226-392-300

Unavailable

18

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-000.

77228-340-003

$4.24

18

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-001.

77228-340-003

$4.24

18

RUBBER, SEAT LOCK BAR CUSHION

77228-340-003

$4.24

19

COLLAR, SEAT LOCK BAR This part replaces 77229-340-000.

77229-340-003

$2.92

19

COLLAR, SEAT LOCK BAR This part replaces 77229-340-001.

77229-340-003

$2.92

19

COLLAR, SEAT LOCK BAR

77229-340-003

$2.92

20

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-377-003.

77230-399-007

Unavailable

20

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-388-007.

77230-399-007

Unavailable

20

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-388-017.

77230-399-007

Unavailable

20

LOCK ASSY., SEAT (HONDALOCK)

77230-399-007

Unavailable

21

TOOL SET (NOT AVAILABLE)

89010-341-010

Unavailable

22

WRENCH, SPARK PLUG This part replaces 89216-300-000.

89216-323-000

Unavailable

22

WRENCH, SPARK PLUG

89216-323-000

Unavailable

23

BOLT, HEX. (4X9) (NOT AVAILABLE)

90012-392-000

Unavailable

24

NUT, COMBINATION BRACKET

90145-634-670

Unavailable

25

WASHER, STOPPER This part replaces 90483-034-000.

90483-041-000

$1.92

25

WASHER, STOPPER

90483-041-000

$1.92

26

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

26

WASHER, PLAIN (6MM)

94103-06800

$1.49

27

SCREW, FLAT (6X16)

93600-06016-0G

$1.49

28

NUT, HEX. (4MM)

94001-04000-0S

$1.49

29

NUT, HEX. (5MM) This part replaces 94001-05000.

94001-05000-0S

$2.74

29

NUT, HEX. (5MM)

94001-05000-0S

$2.74

30

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM)

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

31

WASHER, PLAIN (4MM)

94101-04000

$1.49

32

WASHER, PLAIN (5MM)

94101-05000

$1.49

33

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

33

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

33

WASHER, PLAIN (6MM)

94101-06800

$1.49

34

WASHER, SPRING (6MM)

94111-06000

$1.49

35

PIN, LOCK (6MM)

94251-06000

$1.49

36

WRENCH (10X12) (OPEN END)

99001-10120

$4.69

37

WRENCH (14X17) (OPEN END)

99001-14170

$7.49

38

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

39

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

40

SCREWDRIVER 2, PHILLIPS (NO.3)

99003-20000

$3.27

41

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

42

LEVER, TIRE

99003-40000

$1.49

43

GRIP

99003-50000

$3.27

44

BAR B, HANDLE

99005-02000

$2.52

45

HANDLE, EYE WRENCH (120MM)

99006-12000

$2.87

46

WRENCH, EYE (26MM) (NOT AVAILABLE)

99006-26000

Unavailable

47

WRENCH, PIN (45MM) (OPEN END)

99007-45000

$3.40

48

BAG, TOOL

89101-ME5-670

Unavailable

48

BAG, TOOL This part replaces 99008-02000.

89101-ME5-670

Unavailable
