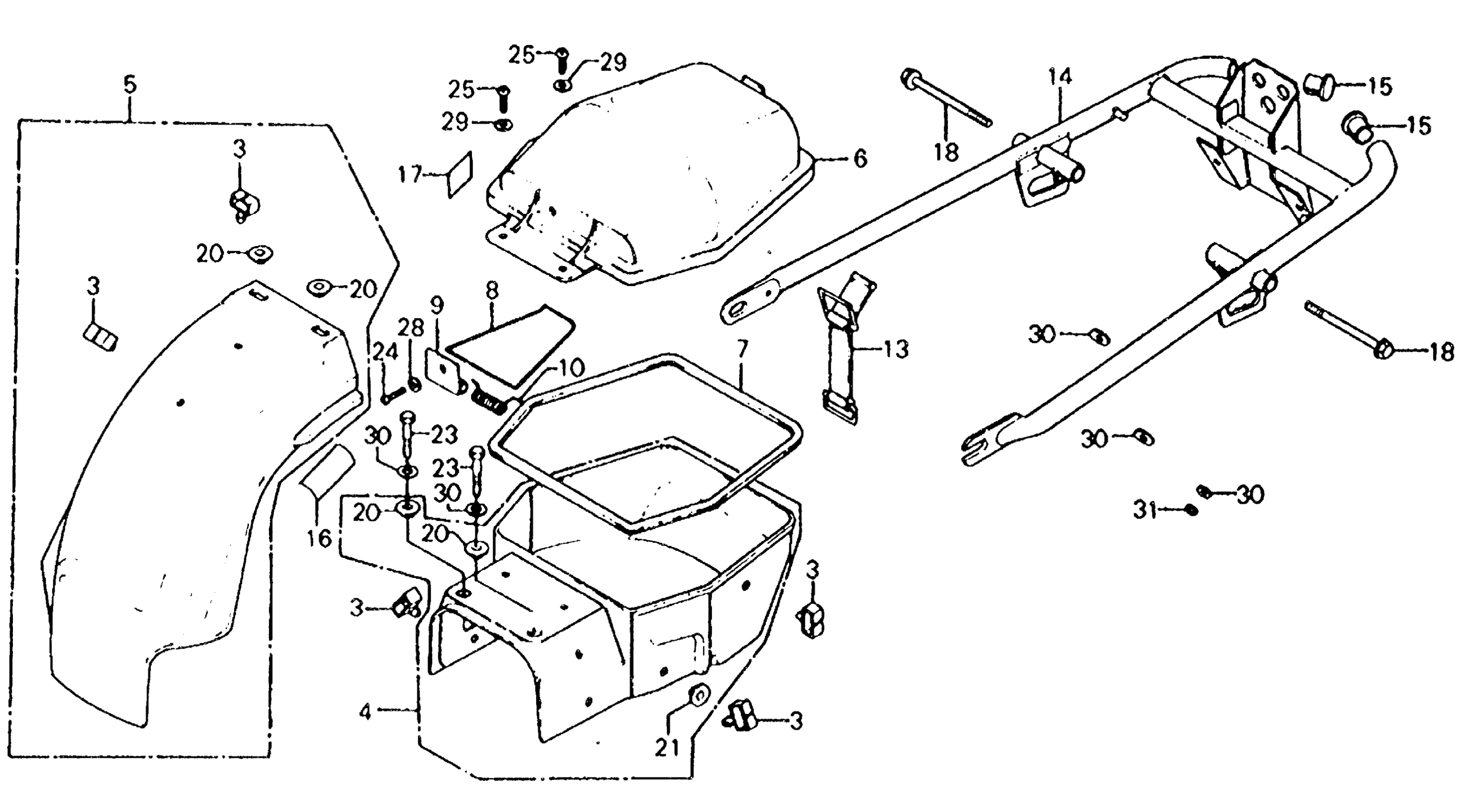

Honda CB750FA MOTORCYCLE, JPN, VIN# CB750F-1000002 TO CB750F-1015054 REAR FENDER + BUMPER Diagram

GROMMET, CABLE

32985-300-000

$3.35

FENDER A, RR. (NOT AVAILABLE)

80100-392-670

Unavailable

FENDER B, RR. (NOT AVAILABLE) This part replaces 80105-341-000.

80105-341-010

Unavailable

FENDER B, RR. (NOT AVAILABLE)

80105-341-010

Unavailable

CAP A, RR. FENDER (NOT AVAILABLE)

80110-392-000

Unavailable

RUBBER, RR. FENDER SEAL (NOT AVAILABLE)

80111-392-000

Unavailable

BAR, CLAMP (NOT AVAILABLE)

80112-392-000

Unavailable

BASE, CLAMP (NOT AVAILABLE)

80113-392-000

Unavailable

SPRING, CLAMP RETURN (NOT AVAILABLE)

80114-392-000

Unavailable

BAND, SIDE COVER

83606-356-000

$23.26

BUMPER, RR. (NOT AVAILABLE)

84101-392-000

Unavailable

CAP, RR. BUMPER

84103-392-000

$3.89

LABEL, BATTERY CAUTION (NOT AVAILABLE)

87506-392-670

Unavailable

LABEL, ACCESSORIES & LOADING CAUTION (NOT AVAILABLE)

87512-371-670

Unavailable

BOLT, FLANGE (8X85) This part replaces 90010-392-000.

95701-08085-00

$2.48

BOLT, FLANGE (8X85) This part replaces 95700-08085.

95701-08085-00

$2.48

BOLT, FLANGE (8X85) This part replaces 95700-08085-00.

95701-08085-00

$2.48

BOLT, FLANGE (8X85)

95701-08085-00

$2.48

WASHER (6X20)

90512-300-000

$3.08

WASHER (8X20) (NOT AVAILABLE)

90512-392-000

Unavailable

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

SCREW, PAN (4X12) This part replaces 93500-04012.

93500-04012-0A

$1.49

SCREW, PAN (4X12)

93500-04012-0A

$1.49

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

SCREW, PAN (4X12) This part replaces 93500-04012-10.

93500-04012-0A

$1.49

SCREW, PAN (4X16)

93500-04016-0G

$1.49

WASHER, PLAIN (4MM)

94101-04000

$1.49

WASHER, PLAIN (4MM)

94101-04700

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49
