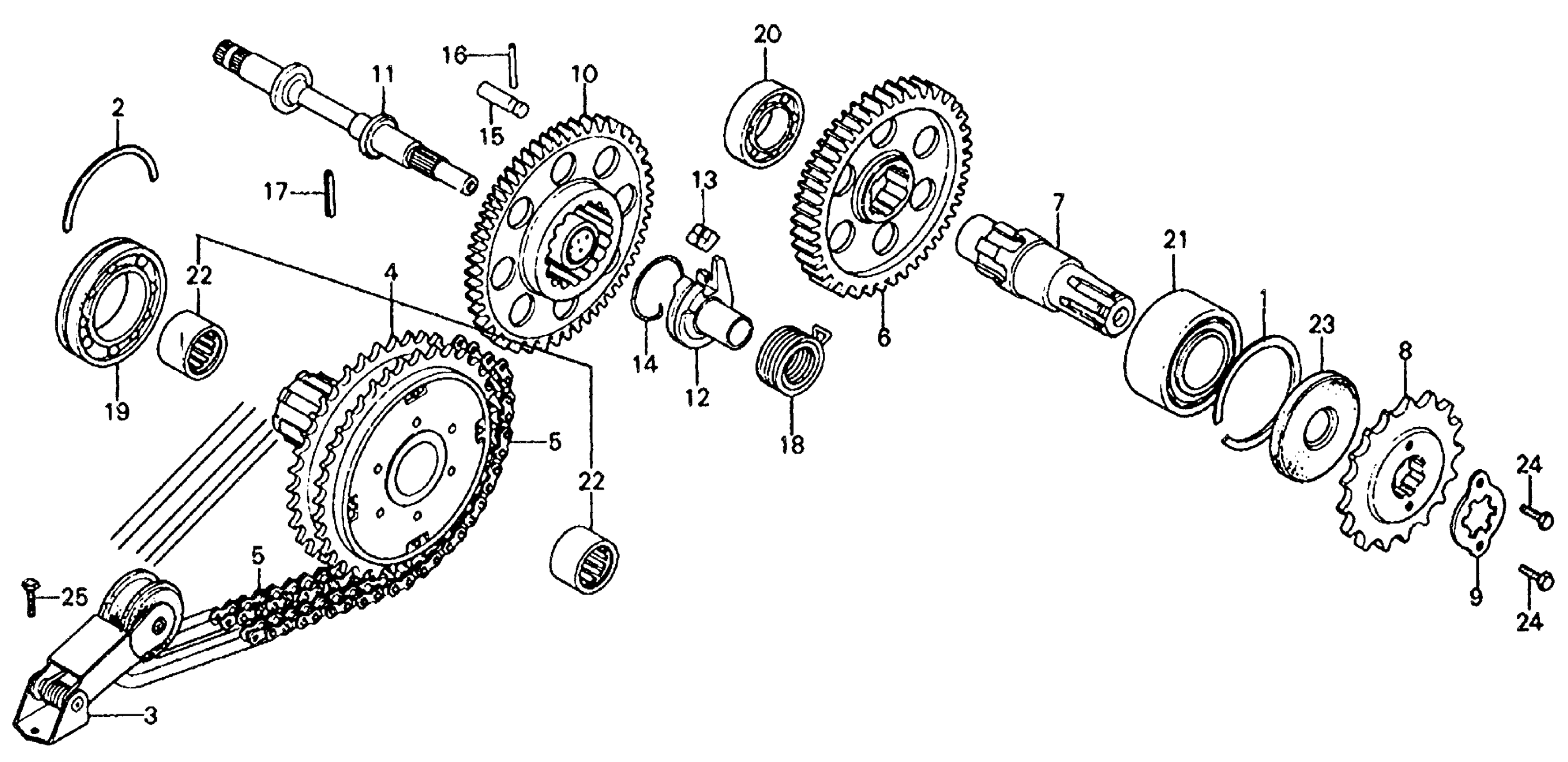

Honda CB750FA MOTORCYCLE, JPN, VIN# CB750F-1000002 TO CB750F-1015054 PRIMARY CHAIN + KICK STARTER Diagram

#

Description
Price

1

RING, BEARING SETTING (66.5MM) (NOT AVAILABLE)

13491-300-000

Unavailable

2

RING B, BALL BEARING SETTING (NOT AVAILABLE)

13496-300-000

Unavailable

3

TENSIONER, PRIMARY CHAIN

13620-300-010

Unavailable

4

SPROCKET, PRIMARY DRIVEN (NOT AVAILABLE)

23110-392-000

Unavailable

5

CHAIN, PRIMARY (68L) (TAKASAGO) This part replaces 23131-300-015.

23131-300-315

Unavailable

5

CHAIN, PRIMARY (68L) (TAKASAGO)

23131-300-315

Unavailable

6

GEAR, FINAL DRIVEN (50T)

23511-392-000

Unavailable

7

SHAFT, FINAL DRIVEN (NOT AVAILABLE)

23521-392-000

Unavailable

8

SPROCKET, DRIVE (17T)

23801-300-010

Unavailable

9

PLATE, DRIVE SPROCKET FIXING

23811-292-000

$2.51

10

GEAR, KICK STARTER (NOT AVAILABLE)

28210-300-000

Unavailable

11

SPINDLE, KICK STARTER

28250-300-020

Unavailable

12

FLANGE, KICK STARTER (NOT AVAILABLE) This part replaces 28251-300-030.

28271-393-000

Unavailable

12

FLANGE, KICK STARTER (NOT AVAILABLE)

28271-393-000

Unavailable

13

PAWL, KICK STARTER

28252-300-020

Unavailable

14

SPRING, KICK STARTER RATCHET (NOT AVAILABLE)

28253-300-000

Unavailable

15

PIN, KICK STOPPER (NOT AVAILABLE)

28254-300-000

Unavailable

16

PIN (4X37) (NOT AVAILABLE)

28255-300-000

Unavailable

17

PIN (6X35) (NOT AVAILABLE)

28256-300-000

Unavailable

18

SPRING, KICK STARTER RETURN (NOT AVAILABLE)

28261-300-010

Unavailable

19

BEARING, SPECIAL BALL (6008) (NOT AVAILABLE)

91004-300-000

Unavailable

20

BEARING, RADIAL BALL (6205) This part replaces 91006-300-008.

96100-62050-00

$18.63

20

BEARING, RADIAL BALL (6205) This part replaces 96100-62050.

96100-62050-00

$18.63

20

BEARING, RADIAL BALL (6205)

96100-62050-00

$18.63

20

BEARING, RADIAL BALL (6205)

96100-62050-10

$20.75

21

BEARING, RADIAL BALL (5206) This part replaces 91008-300-008.

91012-MG7-003

$95.20

21

BEARING, RADIAL BALL (5206)

91012-MG7-003

$95.20

22

BEARING, NEEDLE (25X32X20)

91010-300-008

Unavailable

23

OIL SEAL (25X62X7)

91205-300-005

Unavailable

24

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

24

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

24

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

25

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

25

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

25

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

25

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

25

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

25

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49
