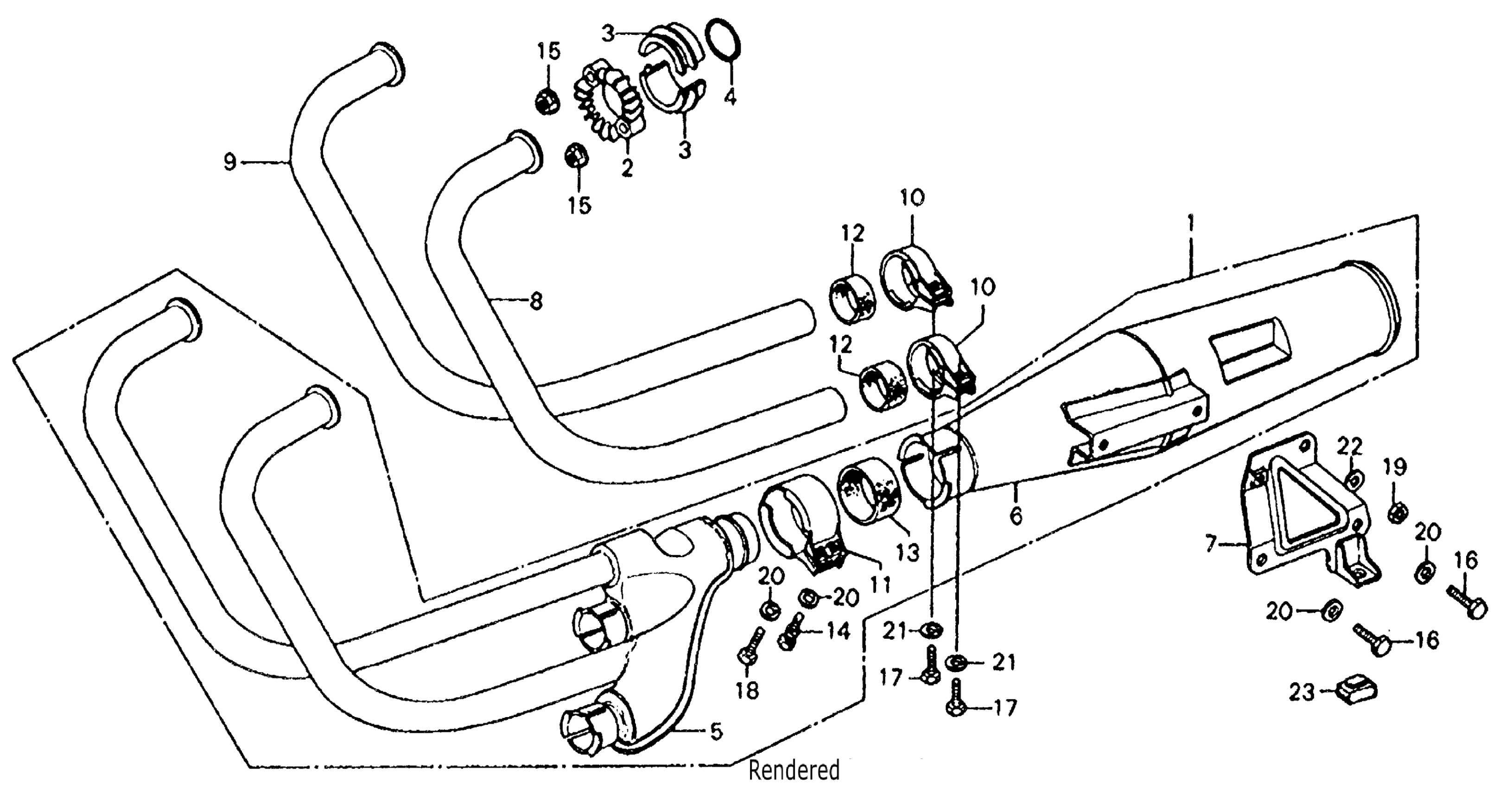

Honda CB750FA MOTORCYCLE, JPN, VIN# CB750F-1000002 TO CB750F-1015054 MUFFLER Diagram

MUFFLER ASSY., EX. (NOT AVAILABLE)

18200-392-000

Unavailable

JOINT, EX. PIPE (NOT AVAILABLE)

18231-392-000

Unavailable

COLLAR, EX. PIPE JOINT

18233-392-000

Unavailable

GASKET, EX. PIPE

18291-MM5-860

$5.17

GASKET, EX. PIPE This part replaces 18291-254-000.

18291-MM5-860

$5.17

PIPE, EX. (NOT AVAILABLE)

18300-392-000

Unavailable

MUFFLER (NOT AVAILABLE)

18310-392-000

Unavailable

BRACKET, MUFFLER (NOT AVAILABLE)

18312-392-000

Unavailable

PIPE 1, EX. (NOT AVAILABLE)

18331-392-000

Unavailable

PIPE 3, EX.

18361-392-000

Unavailable

BAND, EX. PIPE (NOT AVAILABLE)

18371-392-000

Unavailable

BAND, MUFFLER (63.5MM) (N/A: SEE ASSEMBLY)

18372-392-000

Unavailable

GASKET, MUFFLER

18391-MN5-650

$20.61

GASKET, MUFFLER This part replaces 18391-310-000.

18391-MN5-650

$20.61

GASKET, MUFFLER This part replaces 18391-310-306.

18391-MN5-650

$20.61

GASKET, MUFFLER This part replaces 18391-392-000.

18391-392-306

Unavailable

BOLT, MUFFLER SETTING (NOT AVAILABLE)

90105-390-000

Unavailable

NUT, HEX. (8MM)

90309-357-000

$3.40

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

BOLT, HEX. (8X28) This part replaces 92000-08028-0A.

92101-08028-0A

$1.80

BOLT, HEX. (8X28)

92101-08028-0A

$1.80

BOLT, HEX. (8X32) This part replaces 92000-08032-0A.

92101-08032-0B

$2.39

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

BOLT, HEX. (8X32)

92101-08032-0B

$2.39

NUT, HEX. (10MM)

94001-10000-0S

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49

WASHER, SPRING (8MM)

94111-10000

$1.49

RUBBER D, STAND STOPPER

95011-64000

$3.33
