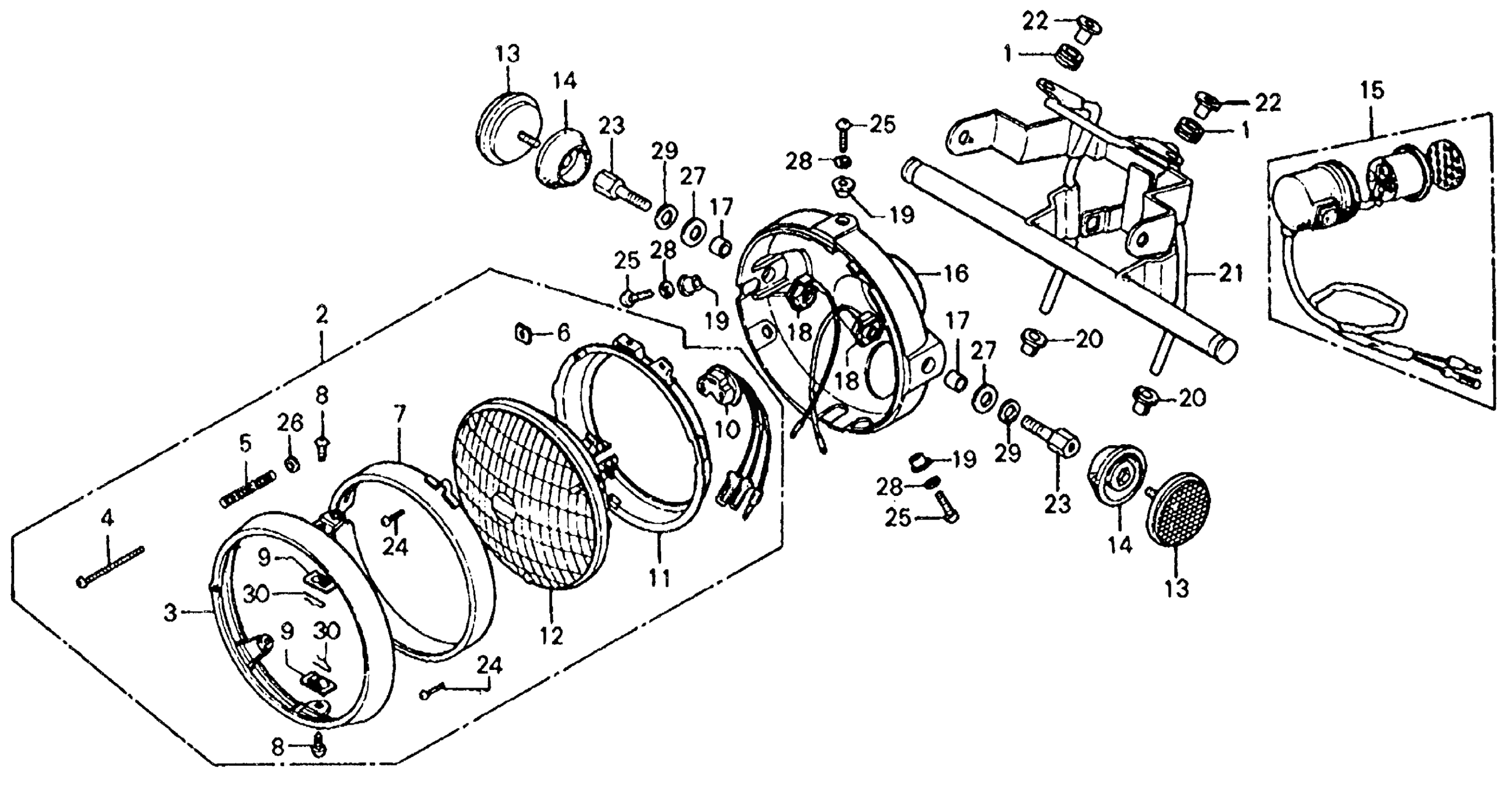

Honda CB750FA MOTORCYCLE, JPN, VIN# CB750F-1000002 TO CB750F-1015054 HEADLIGHT Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

2

HEADLIGHT ASSY. (12V50/40W) (STANLEY) (NOT AVAILABLE)

33100-371-672

Unavailable

3

RIM, HEADLIGHT This part replaces 33101-300-673.

33101-405-671

$71.39

3

RIM, HEADLIGHT

33101-405-671

$71.39

4

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.90

5

SPRING, HEADLIGHT BEAM ADJUSTING

33107-300-003

$3.01

6

NUT, HEADLIGHT BEAM ADJ.

33117-001-003

Unavailable

7

RING, RETAINING (NOT AVAILABLE)

33121-375-671

Unavailable

8

SCREW, UNIT HOLDER

33125-292-670

Unavailable

9

NUT, UNIT HOLDER

33128-292-670

$2.94

10

SOCKET, HEADLIGHT (NOT AVAILABLE) This part replaces 33130-300-671.

33130-300-003

Unavailable

11

RING, SETTING (NOT AVAILABLE)

33153-375-671

Unavailable

12

SET UNIT,HEAD LIG This part replaces 33321-341-701.

33120-431-505

Unavailable

12

SET UNIT,HEAD LIG This part replaces 33321-371-672.

33120-431-505

Unavailable

13

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

14

BASE, FR. REFLECTOR

33743-375-000

Unavailable

15

BUZZER ASSY., TURN SIGNAL (NOT AVAILABLE)

38400-341-674

Unavailable

16

CASE, HEADLIGHT *NH1* (STANLEY) (BLACK) (NOT AVAILABLE)

61301-375-003B

Unavailable

17

COLLAR, HEADLIGHT CASE

61302-300-000

Unavailable

18

WASHER, HEADLIGHT CASE

61303-336-000

Unavailable

19

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

20

GROMMET, HEADLIGHT STAY (NOT AVAILABLE)

61312-392-000

Unavailable

21

STAY, HEADLIGHT (NOT AVAILABLE)

61313-392-000

Unavailable

22

COLLAR C, MOUNTING (6.3) (NOT AVAILABLE)

80106-329-690

Unavailable

23

BOLT, HEADLIGHT STAY (NOT AVAILABLE)

90120-377-000

Unavailable

24

SCREW, PAN (3X12) (NOT AVAILABLE)

93500-03012-3B

Unavailable

25

SCREW, PAN (5X16)

93500-05016-0B

$1.49

26

WASHER, PLAIN (4MM)

94101-04000

$1.49

27

WASHER, PLAIN (10MM)

94101-10200

$1.49

28

WASHER, SPRING (5MM)

94111-05000

$1.49

29

WASHER, SPRING (8MM)

94111-10000

$1.49

30

PIN, LOCK (5MM)

94251-05000

$1.49
