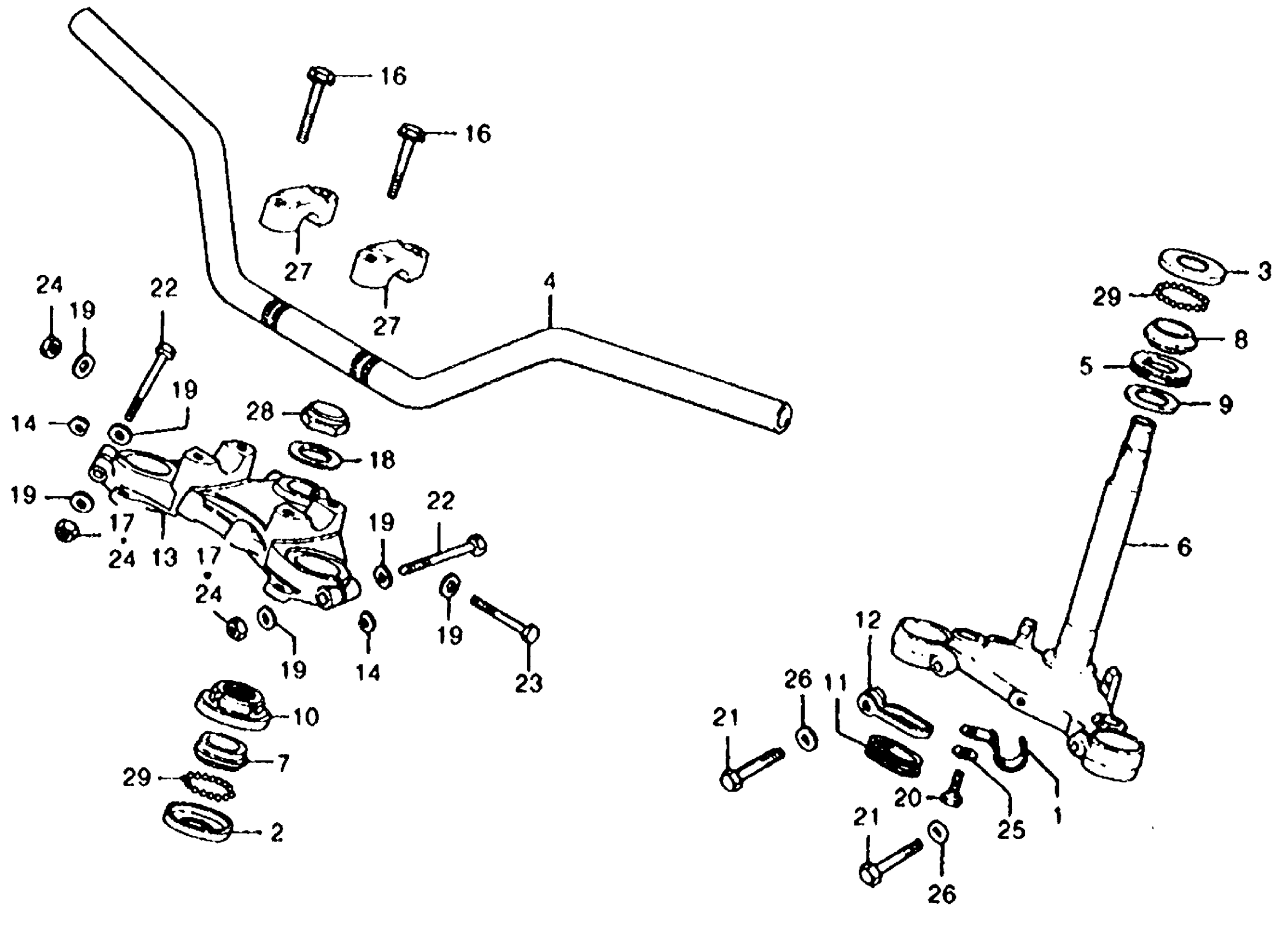

Honda CB750FA MOTORCYCLE, JPN, VIN# CB750F-1000002 TO CB750F-1015054 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

CLIP, WIRE HARNESS (NOT AVAILABLE)

32123-390-000

Unavailable

2

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$18.94

2

RACE, STEERING BALL (LOWER)

50302-268-010

$18.94

2

RACE, STEERING BALL (LOWER) This part replaces 50302-268-305.

50302-268-010

$18.94

3

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$19.29

3

RACE, STEERING BALL (UPPER)

50301-268-010

$19.29

3

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$19.29

4

HANDLEBAR (NOT AVAILABLE)

53100-341-700

Unavailable

5

DUST SEAL This part replaces 53124-250-000.

53214-K0T-J00

$2.81

5

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$2.81

6

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-392-000ZA

Unavailable

7

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$18.81

7

RACE, STEERING CONE (LOWER)

53212-250-010

$18.81

7

RACE, STEERING CONE (LOWER) This part replaces 53212-250-305.

53212-250-010

$18.81

8

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$23.45

8

RACE, STEERING CONE (UPPER)

53211-268-010

$23.45

8

RACE, STEERING TOP CONE This part replaces 53211-268-305.

53211-268-010

$23.45

9

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.13

10

THREAD, STEERING HEAD (UPPER)

53220-286-000

Unavailable

11

GUIDE, CABLE (INNER) (NOT AVAILABLE)

53225-333-000

Unavailable

12

BRACKET, CABLE GUIDE (NOT AVAILABLE)

53226-341-700

Unavailable

13

BRIDGE, FORK TOP (NOT AVAILABLE) This part replaces 53230-392-000.

53230-392-305

Unavailable

13

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-392-305

Unavailable

14

SPACER, FORK TOP BRIDGE (NOT AVAILABLE)

53235-300-000

Unavailable

16

BOLT, FLANGE (8X36)

90111-362-000

$4.47

18

WASHER, STEERING STEM

90503-283-000

$4.07

19

WASHER, PLAIN (8MM)

90518-921-000

$1.19

19

WASHER, PLAIN (8MM) This part replaces 90518-931-000.

90518-921-000

$1.19

19

WASHER, PLAIN (8MM) This part replaces 90555-283-000.

90518-921-000

$1.19

20

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.35

20

BOLT, HEX. (8X16)

92101-08016-0A

$1.35

21

BOLT, HEX. (10X40) This part replaces 92000-10040-0A.

92101-10040-0A

$2.58

21

BOLT, HEX. (10X40)

92101-10040-0A

$2.58

22

BOLT, HEX. (8X56) This part replaces 93000-08056-0B.

93101-08056-0B

Unavailable

23

BOLT, HEX. (8X74) This part replaces 93000-08074-0B.

93101-08074-0B

Unavailable

24

NUT, HEX. (8MM)

94001-08020-0S

$0.81

25

WASHER, PLAIN (8MM)

94102-08000

$0.86

26

WASHER, PLAIN (10MM)

94102-10000

$0.68

27

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$10.90

28

NUT, STEERING STEM

90304-415-000

$17.81

28

NUT, STEERING STEM This part replaces 95020-11300.

90304-415-000

$17.81

29

BALL, STEEL (#8) (1/4)

96211-08000

$1.13
