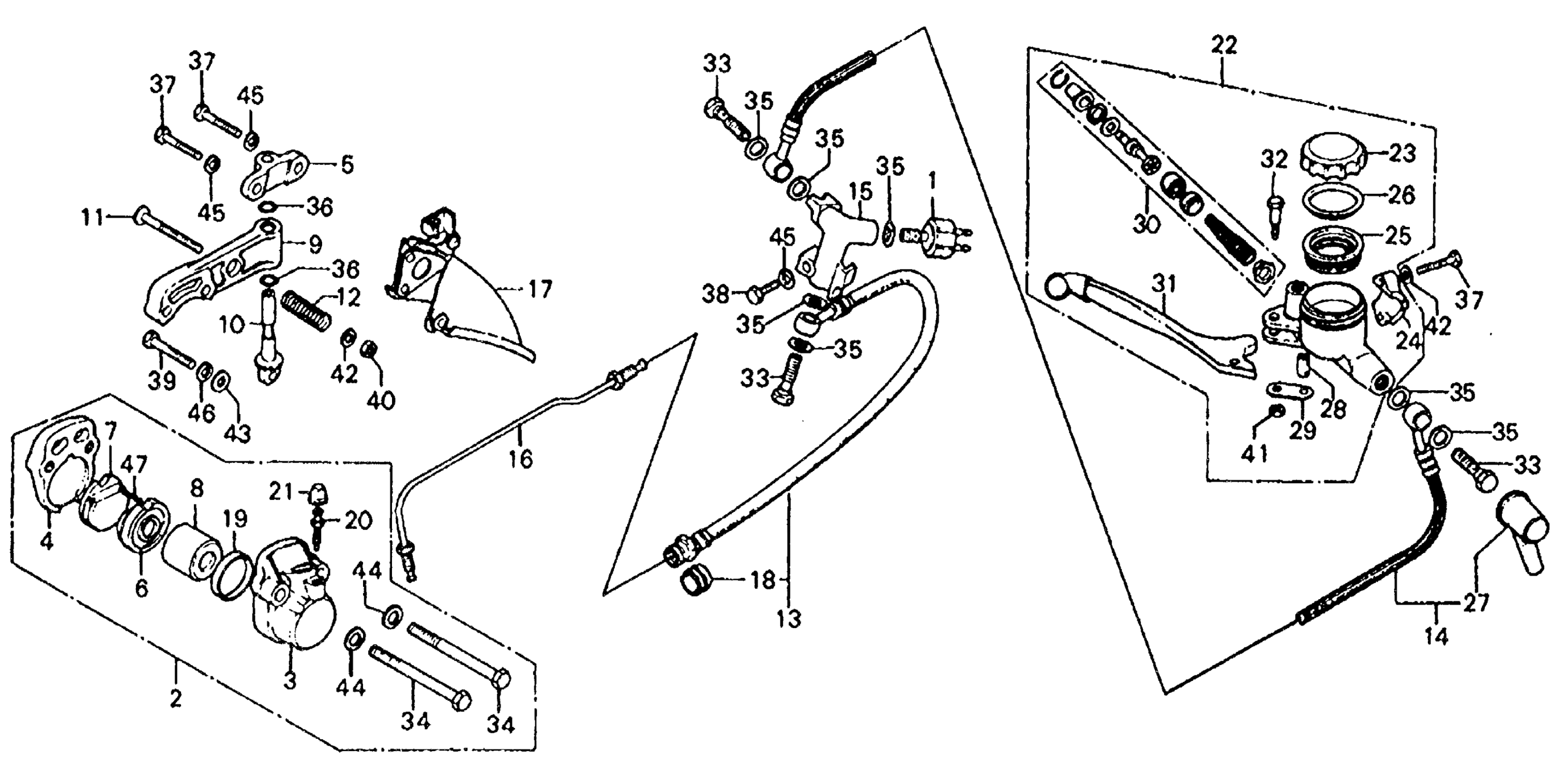

Honda CB750FA MOTORCYCLE, JPN, VIN# CB750F-1000002 TO CB750F-1015054 FRONT MASTER CYLINDER + FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

PAD, SET BRAKE

06455-390-405

Unavailable

NI

PAD, SET BRAKE This part replaces 451A0-390-670.

06455-390-405

Unavailable

1

SWITCH, STOP (NOT AVAILABLE)

35350-300-016

Unavailable

2

CALIPER ASSY. (TOKIKO) (NOT AVAILABLE)

45100-392-003

Unavailable

3

CALIPER A (TOKIKO) (NOT AVAILABLE)

45101-392-003

Unavailable

4

CALIPER B (TOKIKO) (NOT AVAILABLE)

45102-392-003

Unavailable

5

JOINT, CALIPER HOLDER

45104-317-700

Unavailable

6

PAD A, A (ASAHI) This part replaces 45105-390-003.

45105-390-305

Unavailable

6

PAD A, A (ASAHI) This part replaces 45105-390-006.

45105-390-305

Unavailable

6

PAD A, A (ASAHI)

45105-390-305

Unavailable

7

PAD B, B (ASAHI) This part replaces 45106-390-003.

45106-390-305

Unavailable

7

PAD B, B (ASAHI) This part replaces 45106-390-006.

45106-390-305

Unavailable

7

PAD B, B (ASAHI)

45106-390-305

Unavailable

8

PISTON (TOKIKO) (NOT AVAILABLE)

45107-392-003

Unavailable

9

HOLDER, CALIPER (ART)

45115-392-003

Unavailable

10

PIN, CALIPER HOLDER This part replaces 45116-323-020.

45116-367-690

Unavailable

11

BOLT, CALIPER ADJUSTING This part replaces 45117-300-020.

45117-341-700

$5.85

11

BOLT, CALIPER ADJUSTING

45117-341-700

$5.85

12

SPRING, CALIPER ADJ.

45119-300-020

$5.19

13

HOSE ASSY. A, FR. BRAKE (NICHIRIN)

45125-379-003

Unavailable

14

HOSE B, FR. BRAKE (NICHIRIN)

45126-341-003

Unavailable

15

JOINT, THREE-WAY

45127-323-000

Unavailable

16

PIPE, FR. BRAKE

45128-323-020

$14.36

17

COVER, DISK (NOT AVAILABLE)

45140-341-670

Unavailable

18

GROMMET, BRAKE HOSE

45146-300-000

$4.24

19

SEAL, PISTON

45215-533-004

Unavailable

19

SEAL, PISTON This part replaces 45215-533-043.

45215-533-004

Unavailable

20

VALVE, BLEEDER (TOKIKO)

45224-579-013

$16.77

21

CAP, BLEEDER SCREW (TOKIKO)

45225-579-013

Unavailable

22

MASTER CYLINDER ASSY. (N/A: SEE COMPONENTS)

45500-341-771

Unavailable

23

CAP, OIL CUP

43513-MJ6-006

Unavailable

23

CAP, OIL CUP This part replaces 43513-461-771.

43513-MJ6-006

Unavailable

23

CAP, OIL CUP This part replaces 45513-341-771.

43513-MJ6-006

Unavailable

24

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

24

HOLDER, MASTER CYLINDER This part replaces 45517-300-003.

45517-MA5-671

$29.30

25

DIAPHRAGM

45520-300-000

$9.05

26

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

26

PLATE, DIAPHRAGM This part replaces 45521-300-010.

45521-MJ6-006

$4.06

27

BOOT, MASTER CYLINDER

45522-300-010

$9.29

28

BUSH, R. HANDLEBAR CONTROL LEVER

45526-341-000

Unavailable

29

PLATE, CONTROL LEVER BUSH SETTING

45527-300-000

Unavailable

30

MASTER CYLINDER SET

45530-377-305

$62.67

31

LEVER, R. HANDLEBAR

53175-369-003

Unavailable

32

BOLT, HANDLEBAR LEVER PIVOT

90114-300-000

$8.07

33

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

33

BOLT, OIL

90145-300-010

$9.68

34

BOLT, CALIPER SETTING

90165-323-000

$9.49

35

WASHER, OIL BOLT

90545-300-000

$3.99

36

O-RING (9.5X1.7)

91259-333-000

$3.69

37

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

37

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

38

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

38

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

39

BOLT, HEX. (8X35) This part replaces 92200-08035-0A.

92201-08035-0A

$1.49

39

BOLT, HEX. (8X35)

92201-08035-0A

$1.49

40

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

40

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

40

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

40

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

40

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

40

NUT, HEX. (6MM)

94001-06200-0S

$1.49

40

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

41

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

41

NUT, HEX. (6MM)

94002-06000-0S

$1.49

42

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

42

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

42

WASHER, PLAIN (6MM)

94101-06800

$1.49

43

WASHER, PLAIN (8MM)

94101-08000

$1.49

44

WASHER, PLAIN (10MM)

94102-10000

$1.49

45

WASHER, SPRING (6MM)

94111-06000

$1.49

46

WASHER, SPRING (8MM)

94111-08000

$1.49

47

PIN, COTTER (1.6X22)

94201-16220

$1.49
