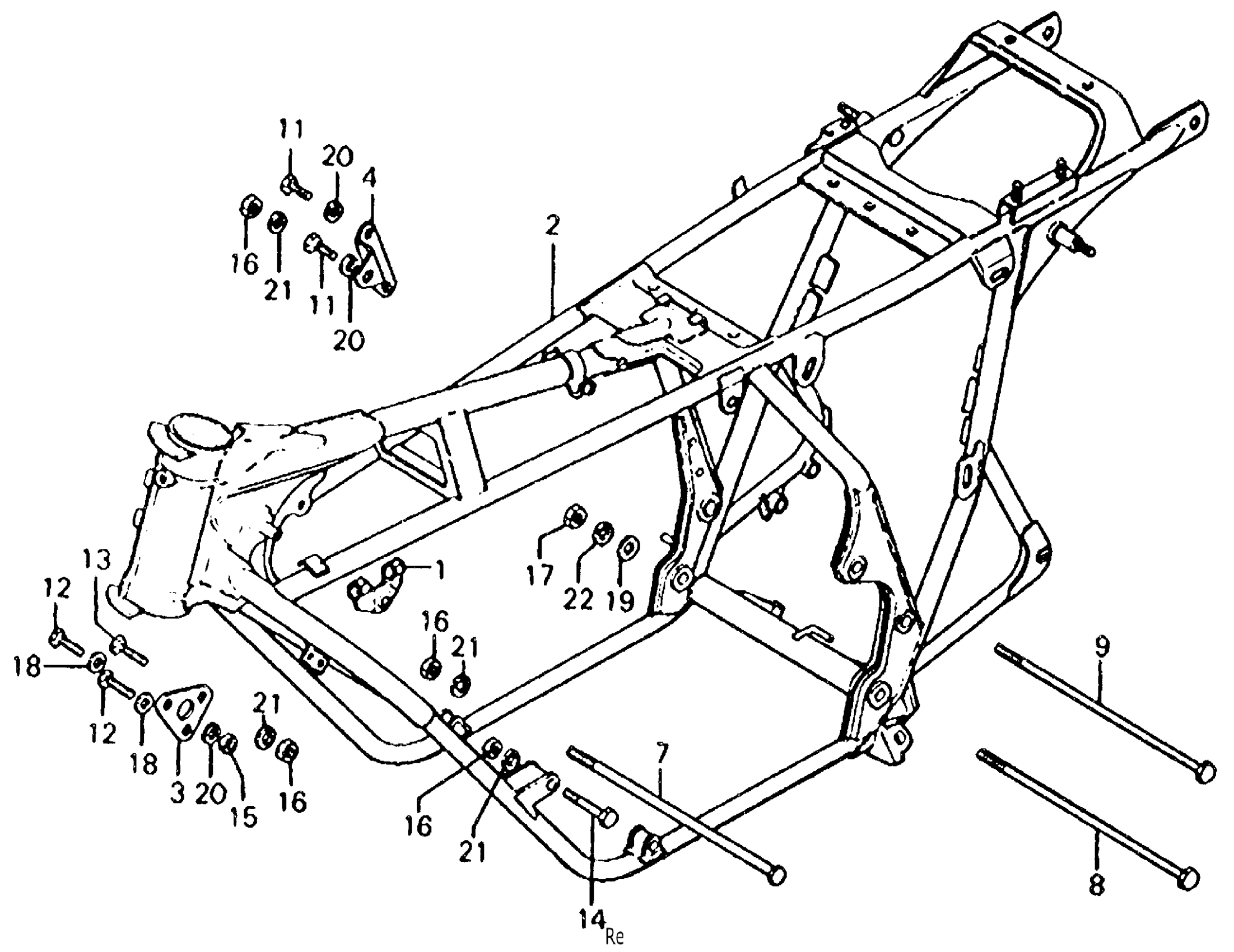

Honda CB750FA MOTORCYCLE, JPN, VIN# CB750F-1000002 TO CB750F-1015054 FRAME Diagram

#

Description
Price

1

HOLDER, WIRE HARNESS (NOT AVAILABLE)

32174-392-000

Unavailable

2

FRAME *NH1* (BLACK)

50100-392-670ZA

Unavailable

3

BRACKET, FR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50351-300-040.

50351-405-970B

Unavailable

3

BRACKET, FR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50351-300-040B.

50351-405-970B

Unavailable

3

BRACKET, FR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50351-405-970B

Unavailable

4

BRACKET, RR. ENGINE HANGER (NOT AVAILABLE)

50356-392-000

Unavailable

7

BOLT A, ENGINE HANGER (NOT AVAILABLE)

90152-300-010

Unavailable

8

BOLT, RR. ENGINE HANGER (LOWER) (NOT AVAILABLE)

90155-392-000

Unavailable

9

BOLT C, ENGINE HANGER (NOT AVAILABLE)

90156-300-000

Unavailable

11

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.48

11

BOLT, HEX. (8X20)

92101-08020-0A

$1.48

12

BOLT, HEX. (8X60) This part replaces 92000-08060-0A.

92101-08060-0A

Unavailable

13

BOLT, HEX. (10X50) This part replaces 92000-10050-0A.

92101-10050-0A

$2.75

13

BOLT, HEX. (10X50)

92101-10050-0A

$2.75

14

BOLT, HEX. (10X80)

92200-10080-0A

Unavailable

15

NUT, HEX. (8MM)

94001-08000-0S

$1.19

16

NUT, HEX. (10MM)

94030-10200

$0.88

17

NUT, HEX. (12MM)

94030-12200

$1.58

18

WASHER, PLAIN (8MM)

94102-08000

$0.86

19

WASHER, FLAT (12MM)

94102-12000

$1.12

20

WASHER, SPRING (8MM)

94111-08000

$0.90

21

WASHER, SPRING (8MM)

94111-10000

$1.22

22

WASHER, SPRING (12MM)

94111-12000

$1.12
