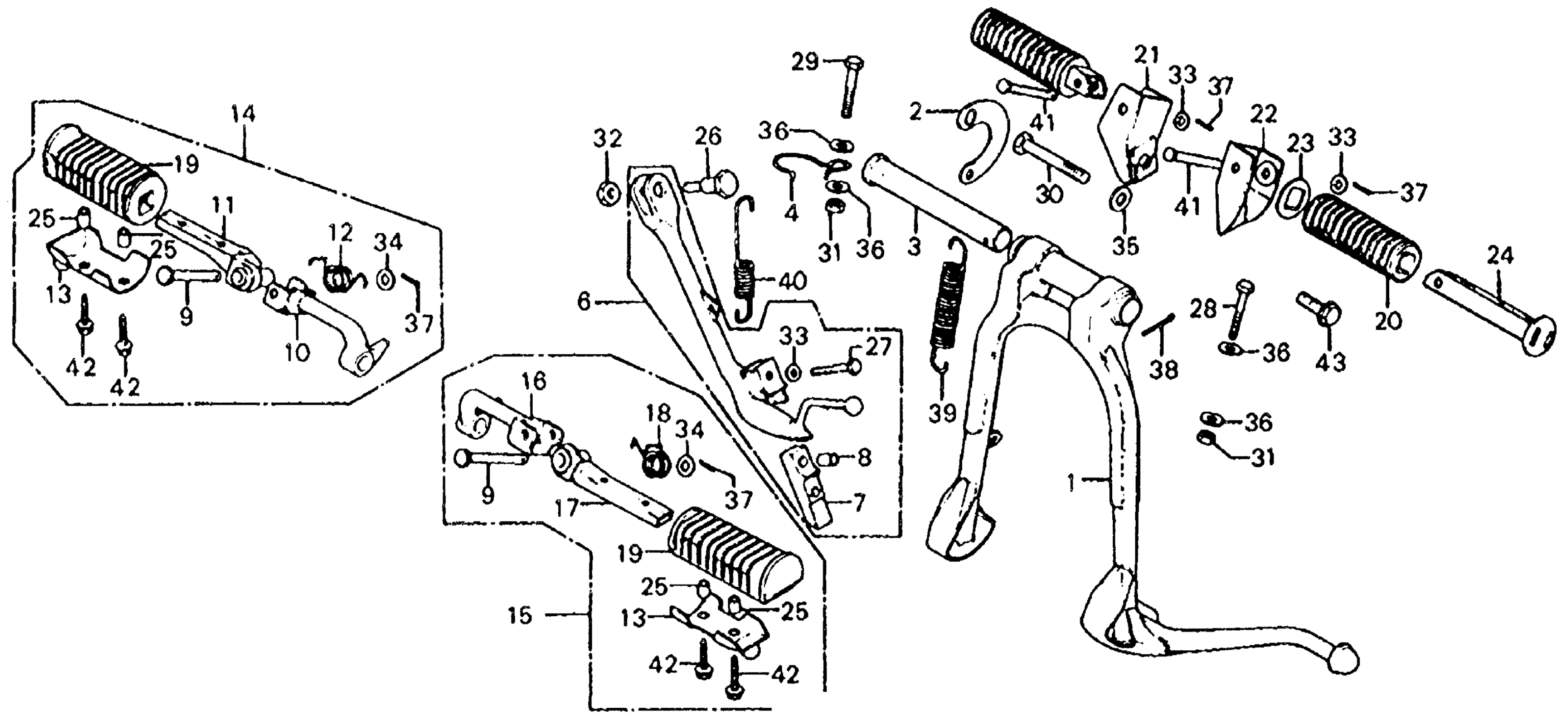

Honda CB750FA MOTORCYCLE, JPN, VIN# CB750F-1000002 TO CB750F-1015054 FOOTPEGS + MAIN STAND + SIDE STAND Diagram

#

Description
Price

1

STAND, MAIN (NOT AVAILABLE)

50500-392-000

Unavailable

2

PLATE, MAIN STAND SPRING

50523-300-010

Unavailable

3

PIPE, MAIN STAND PIVOT

50526-300-000

Unavailable

4

GUIDE, TUBE DRAIN

50527-392-000

Unavailable

6

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-390-000

Unavailable

7

RUBBER, STAND

50548-356-700

$10.50

8

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

9

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

9

PIN, STEP BAR JOINT

50603-033-010

$3.30

10

BAR, R. FOOTPEG

50615-392-000

Unavailable

11

ARM, R. FOOTPEG (NOT AVAILABLE)

50616-392-000

Unavailable

12

SPRING, R. STEP RETURN (NOT AVAILABLE) This part replaces 50617-300-000.

50617-300-670

Unavailable

12

SPRING, R. STEP RETURN

50617-300-670

Unavailable

13

STOPPER, STEP RUBBER (NOT AVAILABLE) This part replaces 50619-375-000.

50619-388-000

Unavailable

14

STEP ASSY., R. This part replaces 50630-392-000.

50630-392-700

Unavailable

15

STEP ASSY., L. This part replaces 50640-392-000.

50640-392-700

Unavailable

16

BAR, L. FOOTPEG *NH1* (BLACK)

50641-300-670B

Unavailable

17

STEP, L. *NH1* (BLACK)

50642-369-670B

Unavailable

18

SPRING, L. STEP RETURN

50644-300-670

Unavailable

19

RUBBER, FOOTPEG

50661-369-000

Unavailable

20

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$14.21

20

RUBBER, PILLION FOOTPEG

50716-371-660

$14.21

21

BRACKET, R. PILLION FOOTPEG (NOT AVAILABLE)

50711-374-670

Unavailable

22

BRACKET, L. PILLION FOOTPEG (NOT AVAILABLE)

50712-374-670

Unavailable

23

WASHER, PILLION FOOTPEG

50712-377-000

Unavailable

24

BAR, PILLION FOOTPEG

50715-MA6-000

$19.16

24

BAR, PILLION FOOTPEG This part replaces 50715-377-000.

50715-MA6-000

$19.16

25

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

26

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

27

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

27

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

28

BOLT, HEX. (8X40) This part replaces 92000-08040-0A.

92101-08040-0A

$1.80

28

BOLT, HEX. (8X40)

92101-08040-0A

$1.80

29

BOLT, HEX. (8X45) This part replaces 92000-08045-0A.

92101-08045-0A

$2.13

29

BOLT, HEX. (8X45)

92101-08045-0A

$2.13

30

BOLT, HEX. (10X55) (NOT AVAILABLE)

92000-10055-0A

Unavailable

31

NUT, HEX. (8MM)

94001-08000-0S

$1.49

32

NUT, HEX. (10MM)

94030-10200

$1.49

33

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

33

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

33

WASHER, PLAIN (6MM)

94101-06800

$1.49

34

WASHER, PLAIN (8MM)

94101-08000

$1.49

35

WASHER, PLAIN (10MM)

94101-10000

$1.49

36

WASHER, PLAIN (8MM)

94102-08000

$1.49

37

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

37

PIN, COTTER (1.6X25)

94201-16250

$1.49

38

PIN, COTTER (2.5MM)

94201-25300

$1.49

39

SPRING G, MAIN STAND This part replaces 95014-71701.

95014-71702

$4.08

39

SPRING G, MAIN STAND

95014-71702

$4.08

40

SPRING D, SIDE STAND This part replaces 95014-72400.

95014-72402

$2.92

40

SPRING D, SIDE STAND This part replaces 95014-72401.

95014-72402

$2.92

40

SPRING D, SIDE STAND

95014-72402

$2.92

41

PIN C, PILLION FOOTPEG

95015-83000

$2.41

42

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

42

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

43

BOLT, FLANGE (10X25) This part replaces 95700-10025-00.

95701-10025-00

$2.19

43

BOLT, FLANGE (10X25)

95701-10025-00

$2.19
