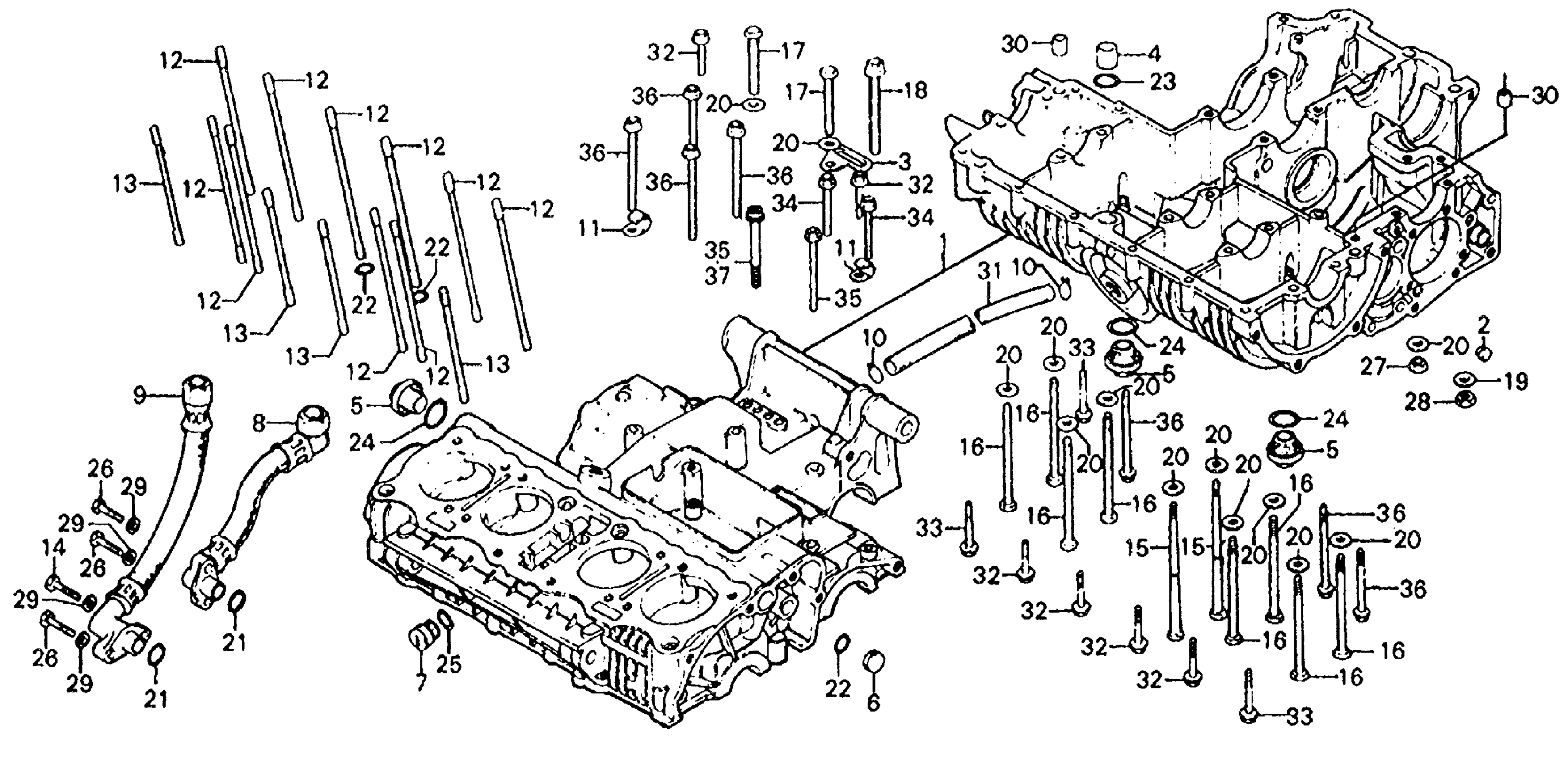

Honda CB750FA MOTORCYCLE, JPN, VIN# CB750F-1000002 TO CB750F-1015054 CRANKCASE Diagram

CRANKCASE ASSY. (NOT AVAILABLE) This part replaces 11000-300-305.

11000-300-315

Unavailable

CRANKCASE ASSY. (NOT AVAILABLE)

11000-300-315

Unavailable

CRANKCASE ASSY. (NOT AVAILABLE) This part replaces 11000-341-000.

11000-300-315

Unavailable

PLUG, SEALING RUBBER (8.5MM) (NOT AVAILABLE)

11209-300-000

Unavailable

GUIDE, OVERFLOW (NOT AVAILABLE)

11355-300-000

Unavailable

COLLAR, OIL PASSAGE (18MM)

15326-300-000

Unavailable

CAP, OIL PASSAGE

15331-300-000

Unavailable

PLUG, OIL PASSAGE (NOT AVAILABLE)

15336-300-010

Unavailable

PLUG, OIL TUBE

15337-300-010

Unavailable

HOSE A, OIL (NOT AVAILABLE)

15510-300-017

Unavailable

HOSE B, OIL (NOT AVAILABLE)

15520-392-020

Unavailable

CLIP, BREATHER TUBE

15772-551-000

$2.05

CLIP, BREATHER TUBE (NOT AVAILABLE)

15772-551-680

$6.39

CLAMP, CABLE

32111-323-000

$3.98

BOLT A, CYLINDER STUD

90033-300-030

Unavailable

BOLT A, CYLINDER STUD This part replaces 90033-300-040.

90033-300-030

Unavailable

BOLT B, CYLINDER STUD (NOT AVAILABLE) This part replaces 90034-300-030.

90034-300-040

Unavailable

BOLT B, CYLINDER STUD (NOT AVAILABLE)

90034-300-040

Unavailable

BOLT-WASHER (6X25) This part replaces 90040-300-000.

93401-06025-00

$1.49

BOLT-WASHER (6X25)

93401-06025-00

$1.49

BOLT-WASHER (6X25) This part replaces 93481-06025.

93401-06025-00

$1.49

BOLT-WASHER (6X25) This part replaces 93481-06025-00.

93401-06025-00

$1.49

BOLT, HEX. (8X140) (NOT AVAILABLE)

90041-300-000

Unavailable

BOLT, HEX. (8X120) This part replaces 90042-300-000.

92101-08120-0H

$3.61

BOLT, HEX. (8X120)

92101-08120-0H

$3.61

BOLT, HEX. (8X56) (NOT AVAILABLE)

90046-300-000

Unavailable

BOLT, HEX. (10X82) (NOT AVAILABLE)

90048-300-000

Unavailable

WASHER (10MM) This part replaces 90403-ML4-610.

90403-ML4-611

$6.21

WASHER (10MM) This part replaces 90403-300-000.

90403-ML4-611

$6.21

WASHER (10MM) This part replaces 90403-413-000.

90403-ML4-611

$6.21

WASHER (10MM) This part replaces 90403-413-010.

90403-ML4-611

$6.21

WASHER, THRUST (14MM)

90485-035-000

$2.92

O-RING (15X2.5)

91302-377-000

$5.31

O-RING (15X2.5) This part replaces 91304-028-000.

91302-377-000

$5.31

O-RING (11X2.5) This part replaces 91309-035-000.

91310-426-000

$5.19

O-RING (11X2.5)

91310-426-000

$5.19

O-RING (11X2.5) This part replaces 91314-MA6-005.

91310-426-000

$5.19

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

O-RING (18X3)

91307-035-000

$2.92

O-RING (18X3) This part replaces 91311-044-000.

91307-035-000

$2.92

O-RING (19.4X2.8) This part replaces 91315-044-000.

94608-40000

$1.49

O-RING (19.4X2.8)

94608-40000

$1.49

O-RING (13X2.5)

91319-300-000

$5.07

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

NUT, HEX. (8MM)

94001-08000-0S

$1.49

NUT, HEX. (10MM)

94001-10000-0S

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

PIN A, DOWEL (10X16)

94301-10160

$2.28

BULK HOSE, VACUUM (12X1000) (12X150)

95005-12001-20M

$34.11

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

BOLT, FLANGE (6X56) (NOT AVAILABLE)

95700-06056-00

Unavailable

BOLT, FLANGE (6X80) This part replaces 95700-06080-00.

95701-06080-00

$2.34

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

BOLT, FLANGE (6X100) This part replaces 95700-06100-00.

95701-06100-00

$2.79

BOLT, FLANGE (6X100)

95701-06100-00

$2.79
