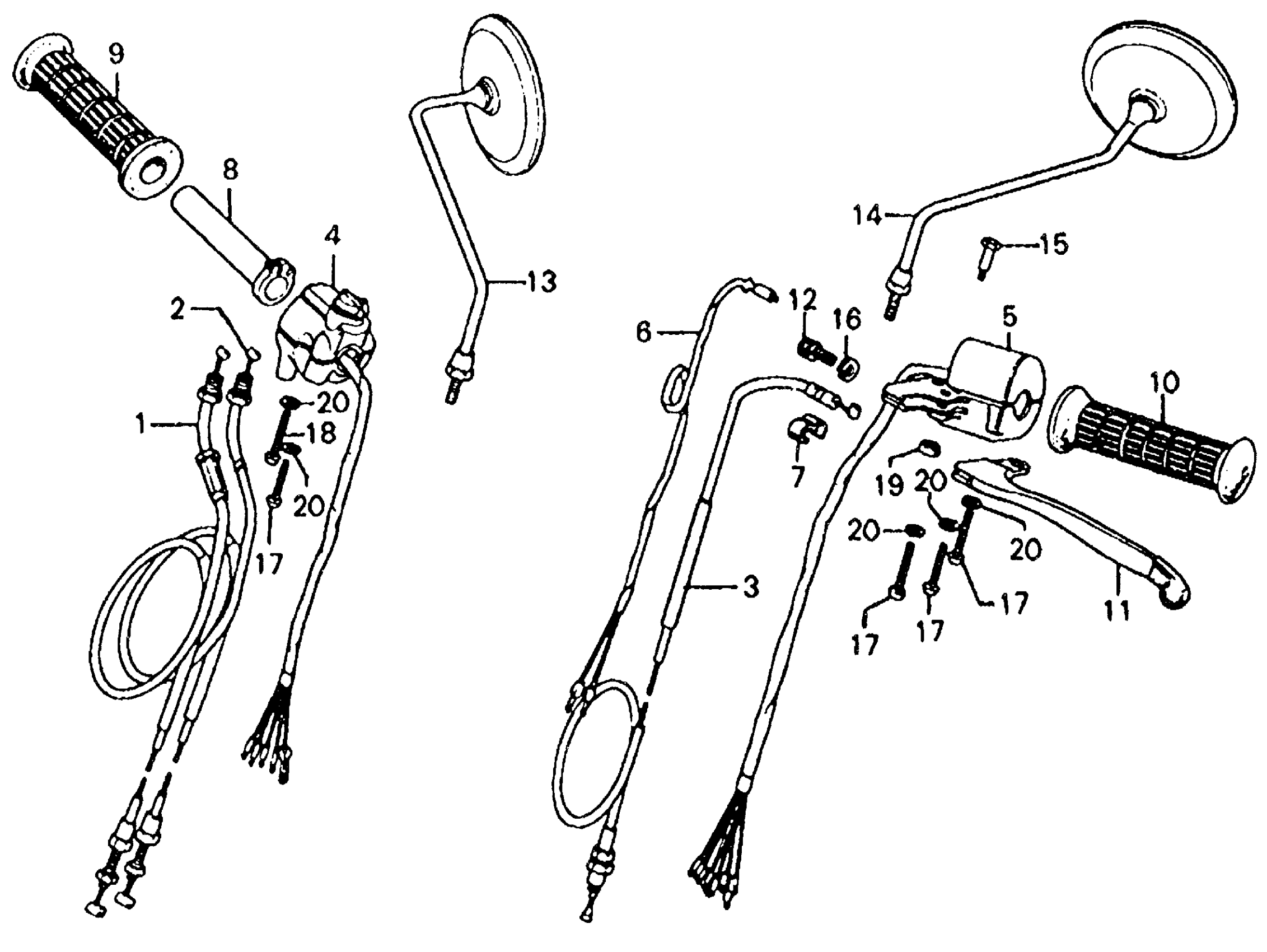

Honda CB750FA MOTORCYCLE, JPN, VIN# CB750F-1000002 TO CB750F-1015054 CONTROL LEVERS + SWITCHES + CABLES Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-341-000

Unavailable

2

CABLE B, THROTTLE

17920-341-000

$56.79

3

CABLE, CLUTCH This part replaces 22870-392-000.

22870-410-000

$38.98

3

CABLE, CLUTCH

22870-410-000

$38.98

4

SWITCH ASSY., STARTER STOP

35130-377-P00

Unavailable

4

SWITCH ASSY., STARTER STOP This part replaces 35130-377-670.

35130-377-P00

Unavailable

5

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-390-671

Unavailable

6

SWITCH ASSY., FR. STOP This part replaces 35360-341-000.

35340-329-003

$17.46

7

CLIP, FR. BRAKE CABLE

45465-270-000

$4.94

7

CLIP, FR. BRAKE CABLE This part replaces 45465-341-700.

45465-270-000

$4.94

8

PIPE, THROTTLE GRIP

53141-300-010

$20.93

9

GRIP, R. HANDLEBAR

53165-342-670

$15.64

10

GRIP, L. HANDLEBAR

53166-342-670

$13.49

11

LEVER, L. HANDLE This part replaces 53178-329-000.

53178-369-700

$28.35

11

LEVER, L. HANDLE

53178-369-700

$28.35

11

LEVER, L. HANDLE This part replaces 53190-329-000.

53178-369-700

$28.35

11

LEVER, L. HANDLE This part replaces 53190-329-010.

53178-369-700

$28.35

11

LEVER, L. HANDLE This part replaces 53190-369-700.

53178-369-700

$28.35

12

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

13

MIRROR, R. This part replaces 88100-333-004.

88110-333-611

$37.14

13

MIRROR, R. This part replaces 88100-333-610.

88110-333-611

$37.14

13

MIRROR, R. This part replaces 88100-371-980.

88110-333-611

$37.14

13

MIRROR, R.

88110-333-611

$37.14

14

MIRROR, L. This part replaces 88120-333-610.

88120-333-611

Unavailable

14

MIRROR, L.

88120-333-611

Unavailable

15

BOLT, HANDLE LEVER PIVOT This part replaces 90114-268-020.

90114-310-000

$4.90

15

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

16

NUT, FIXING This part replaces 90321-292-000.

90321-315-670

$7.31

16

NUT, FIXING

90321-315-670

$7.31

16

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

17

SCREW, PAN (5X25)

93500-05025-0A

$1.49

18

SCREW, PAN (5X32)

93500-05032-0A

$1.49

19

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM)

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

20

WASHER, SPRING (5MM)

94111-05000

$1.49
