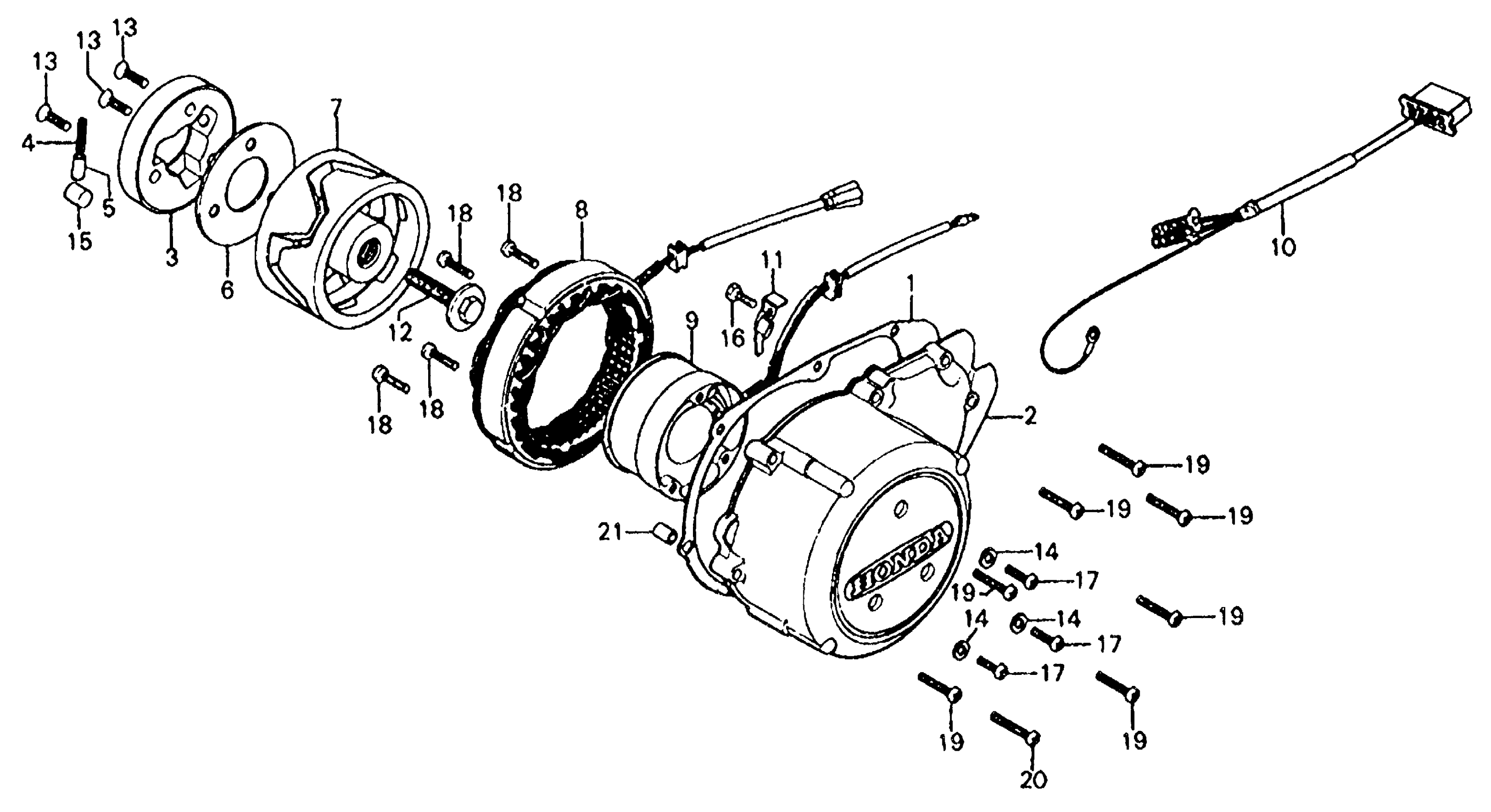

Honda CB750FA MOTORCYCLE, JPN, VIN# CB750F-1000002 TO CB750F-1015054 ALTERNATOR + ALTERNATOR COVER Diagram

#

Description
Price

1

GASKET, ALTERNATOR COVER This part replaces 11397-300-040.

11397-300-306

$19.65

1

GASKET, ALTERNATOR COVER This part replaces 11397-300-303.

11397-300-306

$19.65

1

GASKET, ALTERNATOR COVER

11397-300-306

$19.65

1

GASKET, ALTERNATOR COVER This part replaces 11397-393-000.

11397-300-306

$19.65

2

COVER, ALTERNATOR

11631-300-040

Unavailable

3

CLUTCH, STARTER (OUTER) (NOT AVAILABLE)

28120-300-000

Unavailable

4

SPRING, STARTER CLUTCH ROLLER

28125-516-030

$2.73

5

CAP, STARTER CLUTCH ROLLER SPRING

28126-516-020

$19.34

6

PLATE, STARTER CLUTCH SIDE (NOT AVAILABLE)

28128-516-000

Unavailable

7

ROTOR (HITACHI)

31101-300-035

Unavailable

8

STATOR (HITACHI) (NOT AVAILABLE) This part replaces 31102-300-035.

31102-300-045

Unavailable

8

STATOR (HITACHI) (NOT AVAILABLE)

31102-300-045

Unavailable

9

COIL, FIELD (HITACHI) (NOT AVAILABLE) This part replaces 31103-300-035.

31103-300-045

Unavailable

9

COIL, FIELD (HITACHI) (NOT AVAILABLE)

31103-300-045

Unavailable

10

WIRE HARNESS, ALTERNATOR (SUMITOMO) (NOT AVAILABLE)

31110-300-154

Unavailable

11

PLATE, ALTERNATOR WIRE SETTING (NOT AVAILABLE)

32116-300-010

Unavailable

12

BOLT, ROTOR SET (NOT AVAILABLE)

90014-392-010

Unavailable

13

SCREW, FLAT (8X22) (NOT AVAILABLE)

90053-300-000

Unavailable

14

WASHER, THRUST (11MM)

90425-300-000

$2.66

15

ROLLER (15X13)

91101-516-000

$6.32

16

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

17

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

17

SCREW, PAN (6X20)

93500-06020-0A

$1.49

18

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

18

SCREW, PAN (6X28)

93500-06028-0A

$1.49

19

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

19

SCREW, PAN (6X32)

93500-06032-0A

$1.49

20

SCREW, PAN (6X35)

93500-06035-0A

$1.49

20

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

21

PIN A, DOWEL (8X14)

94301-08140

$2.25
