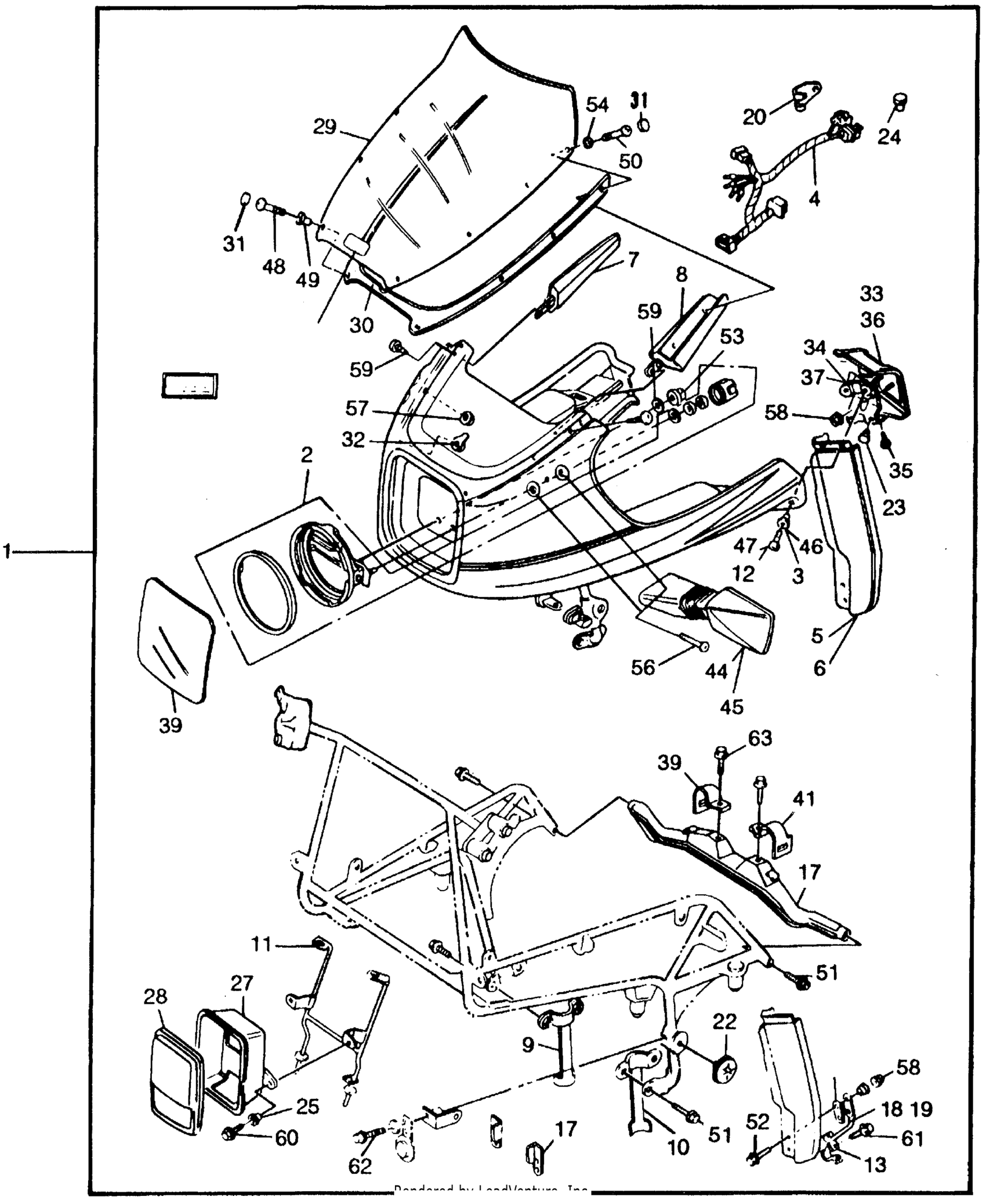

Honda CB750FA (82) 750 SUPER SPORT, JPN, VIN# JH2RC040-CM300003 TO JH2RC040-CM304252 SPORT FAIRING KIT 82 Diagram

#

Description
Price

1

SPORT FAIRING KIT *NH1* (BLACK) (NOT AVAILABLE)

08154-MC300

Unavailable

1

SPORT FAIRING KIT *NH104MU* (PLEIADES SILVER METALLIC) (NOT AVAILABLE)

08154-MC301

Unavailable

2

HDLT.MOUNT ASSY This part replaces 08154-4380005.

0Y154-4380005

Unavailable

3

COLLAR C

08154-4380006

Unavailable

4

SUB-HARNESS B

0Y154-4380028

Unavailable

4

SUB-HARNESS B This part replaces 08154-4380028.

0Y154-4380028

Unavailable

5

SHIELD, R. LEG *NH1* (BLACK) (NOT AVAILABLE)

08154-4380064A

Unavailable

5

SHIELD, R. LEG *NH104MU* (PLEIADES SILVER METALLIC) (NOT AVAILABLE)

08154-4380064B

Unavailable

6

SHIELD, L. LEG *NH1* (BLACK) (NOT AVAILABLE)

08154-4380065A

Unavailable

6

SHIELD, L. LEG *NH104MU* (PLEIADES SILVER METALLIC) (NOT AVAILABLE)

08154-4380065B

Unavailable

7

PILLAR, L. This part replaces 08154-4380013A.

08154-4380013N

Unavailable

7

PILLAR, R. *NH1* (BLACK) (NOT AVAILABLE)

08154-4380013H

Unavailable

8

PILLAR, L. This part replaces 08154-4380014A.

08154-4380014N

Unavailable

8

PILLAR, L. *NH1* (BLACK) (NOT AVAILABLE)

08154-4380014H

Unavailable

9

RETAINER, R. FAIRING BRACKET (NOT AVAILABLE)

08154-4381004

Unavailable

10

RETAINER, L. FAIRING BRACKET (NOT AVAILABLE)

08154-4381005

Unavailable

11

BRACKET, METER

61311-MC3-610

Unavailable

12

SCREW, PAN (6X17) (NOT AVAILABLE)

08154-4380007

Unavailable

13

HOLDER, L. SHIELD BRACKET

08154-4381009

Unavailable

17

STAY FAIR RR This part replaces 08154-4381006.

0Y154-4381006

Unavailable

18

STAY, R. (LOWER)

0Y154-4381007

$12.51

18

STAY, R. (LOWER) This part replaces 08154-4381007.

0Y154-4381007

$12.51

19

STAY, R. (LOWER)

0Y154-4381008

$12.07

19

STAY, R. (LOWER) This part replaces 08154-4381008.

0Y154-4381008

$12.07

20

HOLDER, WIRE HARNESS

32174-438-000

Unavailable

22

REFLECTOR, FR. REFLEX This part replaces 33741-413-003.

33742-HB9-641

$13.14

22

REFLECTOR, FR. REFLEX This part replaces 33741-413-013.

33742-HB9-641

$13.14

22

REFLECTOR, FR. REFLEX

33742-HB9-641

$13.14

23

PLUG, CHAIN GUARD

40514-333-000

$2.57

24

PLUG, HANDLEBAR BRACKET

53174-116-670

$2.48

24

PLUG, HANDLE LEVER BRACKET This part replaces 53174-463-770.

53174-116-670

$2.48

25

COLLAR, FR. FENDER SETTING

61101-441-000

$4.13

26

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

26

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

27

HOLDER, CONNECTOR

61305-438-851

Unavailable

28

COVER, CONNECTOR HOLDER

61306-438-850

Unavailable

28

COVER, CONNECTOR HOLDER This part replaces 61306-438-851.

61306-438-850

Unavailable

29

WINDSHIELD (NOT AVAILABLE)

64100-MA2-000

Unavailable

30

RUBBER, SCREEN BASE (NOT AVAILABLE)

64101-MA2-000

Unavailable

31

CAP

64109-438-850

Unavailable

32

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

32

SCREW, PAN (6X28)

93500-06028-0A

$1.49

33

PAD, R. KNEE

64261-438-850

Unavailable

33

PAD, R. KNEE This part replaces 64261-438-851.

64261-438-850

Unavailable

34

STAY, R. KNEE PAD

64262-438-850

Unavailable

34

STAY, R. KNEE PAD This part replaces 64262-438-851.

64262-438-850

Unavailable

35

GROMMET, PAD SET

64264-438-850

Unavailable

36

PAD, L. KNEE

64271-438-851

Unavailable

37

BRACKET, L. KNEE PAD

64272-438-851

Unavailable

38

BAND, R. RR. STAY

64503-438-850

Unavailable

38

BAND, R. RR. STAY This part replaces 64503-438-851.

64503-438-850

Unavailable

39

SHIELD, HEADLIGHT (NOT AVAILABLE)

64220-MA2-000

Unavailable

40

RUBBER, LEG SHIELD

64512-438-850

Unavailable

41

BAND, L. RR. STAY

64513-438-850

Unavailable

44

MIRROR, L. (NOT AVAILABLE) This part replaces 88120-MA2-620.

88120-MA3-720

Unavailable

45

MIRROR, R. (NOT AVAILABLE) This part replaces 88110-MA2-620.

88110-MA3-720

Unavailable

46

COLLAR (C)

90003-438-850

$5.05

49

COLLAR, WINDSHIELD

90007-438-850

Unavailable

50

SCREW B

90009-MA2-000

Unavailable

51

BOLT, SPECIAL FLANGE (8X22)

90100-438-850

$4.85

52

BOLT, FR. COWL MOUNT (NOT AVAILABLE)

90103-463-770

Unavailable

53

NUT, OPEN STAY (6MM)

90301-693-000

$6.36

54

WASHER, PLAIN (4MM) This part replaces 90502-438-850.

90508-KA3-830

Unavailable

54

WASHER, PLAIN (4MM)

90508-KA3-830

Unavailable

55

MIRROR, L. (NOT AVAILABLE) This part replaces 88120-MA2-620.

88120-MA3-720

Unavailable

56

SCREW, TAPPING (4X12)

93903-14310

Unavailable

57

NUT, FLANGE (4MM)

94050-04000

$1.49

58

NUT, FLANGE (6MM)

94050-06000

$1.49

59

WASHER, PLAIN (6MM)

94103-06700

$1.49

60

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

60

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

61

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

61

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

62

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

62

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

63

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

63

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
