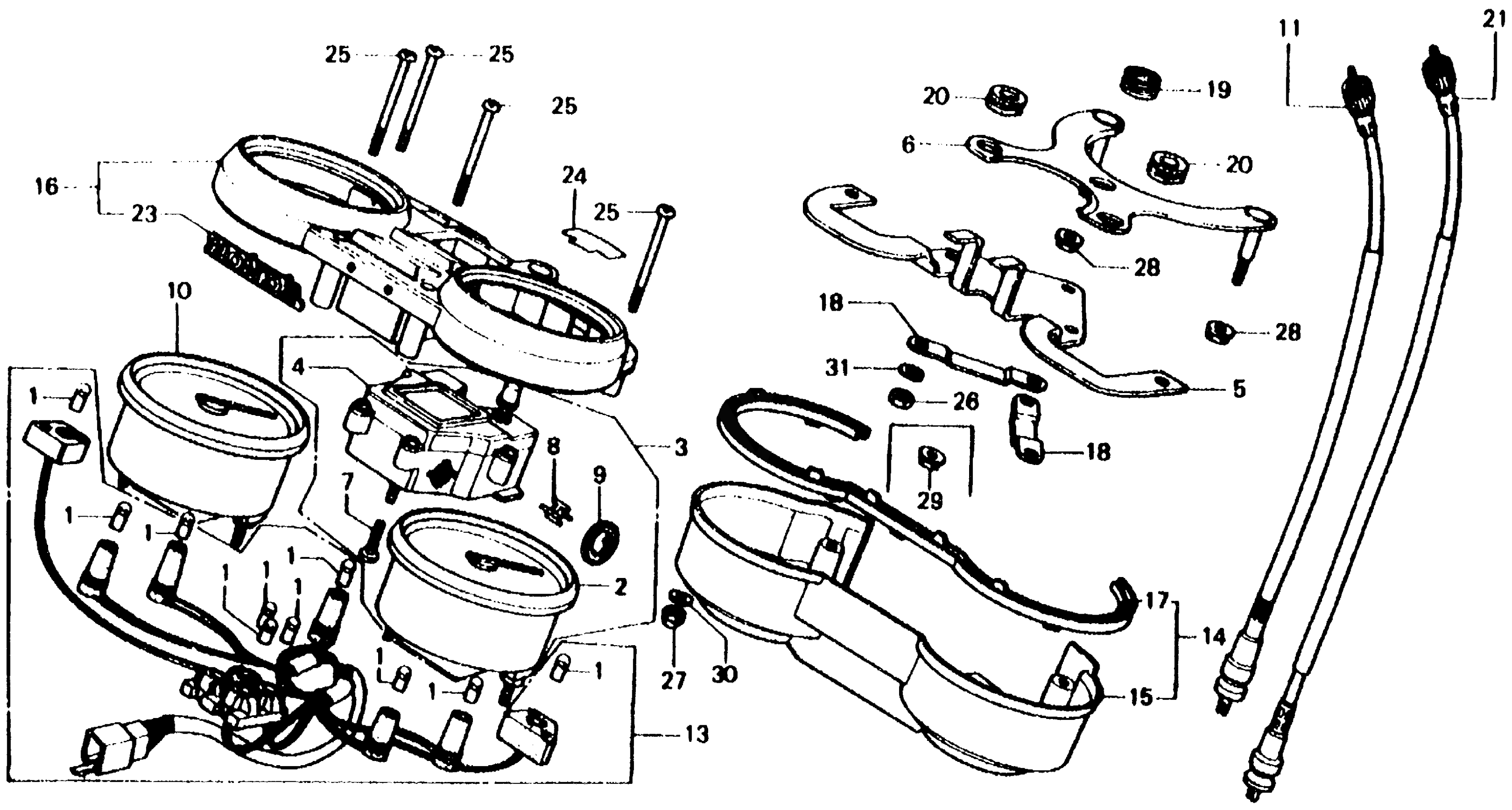

Honda CB750FA (82) 750 SUPER SPORT, JPN, VIN# JH2RC040-CM300003 TO JH2RC040-CM304252 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

2

SPEEDOMETER ASSY. (MPH) (DENSO) (NOT AVAILABLE) This part replaces 37200-MA4-671.

37200-MA4-673

Unavailable

2

SPEEDOMETER ASSY. (MPH) (DENSO) (NOT AVAILABLE) This part replaces 37200-MA4-672.

37200-MA4-673

Unavailable

2

SPEEDOMETER ASSY. (MPH) (DENSO) (NOT AVAILABLE)

37200-MA4-673

Unavailable

4

ODOMETER ASSY. (MPH) (DENSO) (NOT AVAILABLE)

37210-425-671

$109.46

5

STAY A, INSTRUMENT SETTING

37211-425-009

Unavailable

6

STAY B, METER SETTING (NOT AVAILABLE)

37212-425-009

Unavailable

7

SCREW, PAN (4X20) (NOT AVAILABLE)

37213-425-000

Unavailable

8

JOINT, ODOMETER (NOT AVAILABLE)

37214-425-009

Unavailable

9

RUBBER, SUB-COMBINATION METER (NOT AVAILABLE)

37215-425-000

Unavailable

10

TACHOMETER ASSY. (DENSO)

37250-MA4-602

Unavailable

10

TACHOMETER ASSY. (DENSO) | Use up to Frame SN CM304342

37250-MA4-602

Unavailable

10

TACHOMETER ASSY. (DENSO) This part replaces 37250-MA4-672.

37250-MA4-602

Unavailable

10

TACHOMETER ASSY. (DENSO) | Use up to Frame SN CM304342 This part replaces 37250-MA4-672.

37250-MA4-602

Unavailable

10

TACHOMETER ASSY. (DENSO) | Use up to Frame SN CM304342 This part replaces 37250-MA4-671.

37250-MA4-602

Unavailable

10

TACHOMETER ASSY. (DENSO) | Use up to Frame SN CM304342 This part replaces 37250-460-841.

37250-MA4-602

Unavailable

11

CABLE ASSY., TACHOMETER This part replaces 37260-MA5-670.

37260-ME8-000

Unavailable

11

CABLE ASSY., TACHOMETER This part replaces 37260-ME1-670.

37260-ME8-000

Unavailable

11

CABLE ASSY., TACHOMETER

37260-ME8-000

Unavailable

11

CABLE ASSY., TACHOMETER This part replaces 37260-425-870.

37260-ME8-000

Unavailable

13

WIRE, METER

37612-425-671

Unavailable

15

COVER, METER (LOWER)

37617-425-019

Unavailable

16

COVER, INSTRUMENT (UPPER) (NOT AVAILABLE) This part replaces 37620-425-671.

37620-460-841

Unavailable

16

COVER, INSTRUMENT (UPPER) (NOT AVAILABLE)

37620-460-841

Unavailable

16

COVER, INSTRUMENT (UPPER) (NOT AVAILABLE) This part replaces 37620-MA4-671.

37620-460-841

Unavailable

17

RING, INSTRUMENT COVER (NOT AVAILABLE)

37621-425-009

Unavailable

18

CLAMP, WIRE (NOT AVAILABLE)

37622-425-009

Unavailable

19

RUBBER, CUSHION (NOT AVAILABLE)

37630-425-009

Unavailable

20

RUBBER, CUSHION (NOT AVAILABLE)

37631-425-009

Unavailable

21

CABLE ASSY., SPEEDOMETER This part replaces 44830-323-000.

44830-425-870

$29.28

21

CABLE ASSY., SPEEDOMETER This part replaces 44830-346-000.

44830-425-870

$29.28

21

CABLE ASSY., SPEEDOMETER This part replaces 44830-390-000.

44830-425-870

$29.28

21

CABLE ASSY., SPEEDOMETER This part replaces 44830-415-000.

44830-425-870

$29.28

21

CABLE ASSY., SPEEDOMETER

44830-425-870

$29.28

23

EMBLEM, INSTRUMENT TOP

87106-425-009

Unavailable

24

LABEL, BREAK IN CAUTION (NOT AVAILABLE)

87523-410-790

Unavailable

25

SCREW, PAN (4X45) (NOT AVAILABLE)

90150-425-000

Unavailable

26

NUT, HEX. (6MM) This part replaces 94001-06080.

94001-06080-0S

$1.49

26

NUT, HEX. (6MM)

94001-06080-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06080-08.

94001-06080-0S

$1.49

27

NUT, CAP (6MM)

94021-06020

$1.73

28

NUT, FLANGE (6MM)

94050-06080

$1.49

29

NUT-WASHER (6MM)

94070-06080

$1.49

30

WASHER, PLAIN (6MM)

94101-06700

$1.49

31

WASHER, SPRING (6MM)

94111-06000

$1.49
