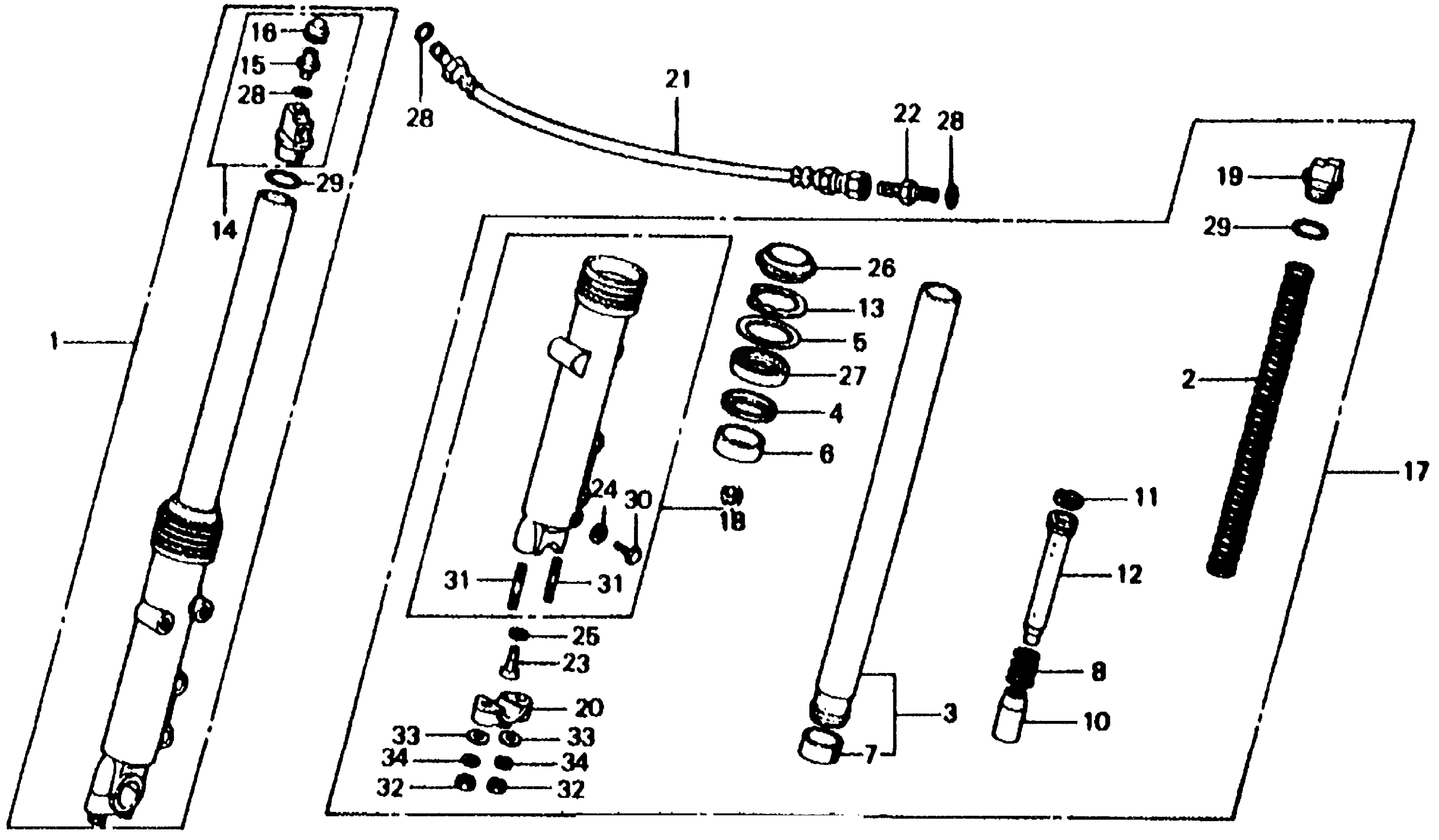

Honda CB750FA (82) 750 SUPER SPORT, JPN, VIN# JH2RC040-CM300003 TO JH2RC040-CM304252 FRONT FORK 81-82 Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA) (NOT AVAILABLE)

51400-445-631

Unavailable

2

SPRING, FR. FORK (SHOWA) (NOT AVAILABLE)

51401-445-631

Unavailable

3

PIPE, FR. FORK (SHOWA) (NOT AVAILABLE)

51410-445-631

Unavailable

4

RING, BACK-UP

51412-461-003

$7.04

5

PLATE, BACK-UP

51413-461-003

Unavailable

6

BUSH, GUIDE

51414-MN4-003

$13.34

6

BUSH, GUIDE This part replaces 51414-461-003.

51414-MN4-003

$13.34

7

BUSH, SLIDER

51415-461-003

$20.08

8

SPRING, REBOUND (NOT AVAILABLE)

51416-461-003

$5.80

9

CASE, R. (LOWER) (SHOWA)

51421-445-631

Unavailable

10

PIECE, OIL LOCK (NOT AVAILABLE)

51432-461-771

Unavailable

11

RING, PISTON

51437-461-003

$9.59

12

PIPE, SEAT (SHOWA) (NOT AVAILABLE)

51440-445-631

Unavailable

13

CIRCLIP (INNER) (50MM)

51447-461-003

$4.53

14

BOLT ASSY., FR. FORK (SHOWA) (NOT AVAILABLE)

51450-461-013

Unavailable

15

VALVE, AIR (SHOWA)

51456-469-013

$33.69

16

CAP ASSY., AIR VALVE

51457-469-000

Unavailable

17

FORK ASSY., L. FR. (SHOWA) (NOT AVAILABLE)

51500-445-631

Unavailable

18

CASE, L. (LOWER) (SHOWA) (NOT AVAILABLE)

51521-445-631

Unavailable

19

BOLT, L. FR. FORK (NOT AVAILABLE)

51555-461-003

Unavailable

20

HOLDER 1B, FR. FORK AXLE (NOT AVAILABLE) This part replaces 51634-410-003.

95014-41100

Unavailable

21

HOSE, FR. FORK JOINT (NOT AVAILABLE)

53137-461-771

Unavailable

22

CONNECTOR

53139-463-000

Unavailable

23

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

23

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

24

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

25

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

26

DUST SEAL

91254-KAZ-003

$17.00

26

DUST SEAL This part replaces 91254-461-003.

91254-KAZ-003

$17.00

26

DUST SEAL This part replaces 91254-461-004.

91254-KAZ-003

$17.00

27

OIL SEAL (37X50X11)

91255-461-003

$25.90

27

OIL SEAL (37X50X11) This part replaces 91255-461-004.

91255-461-003

$25.90

28

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

28

O-RING (5.8X1.9)

91305-323-000

$2.92

28

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

29

O-RING (29X2.4)

91344-PC9-004

$3.51

29

O-RING (29X2.4) (NOK) This part replaces 91356-371-000.

91344-PC9-004

$3.51

30

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

30

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

30

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

31

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

31

BOLT, STUD (8X50)

92900-08028-3B

$1.59

32

NUT, HEX. (8MM)

94030-08000

$1.49

33

WASHER, PLAIN (8MM)

94101-08000

$1.49

34

WASHER, SPRING (8MM)

94111-08000

$1.49
