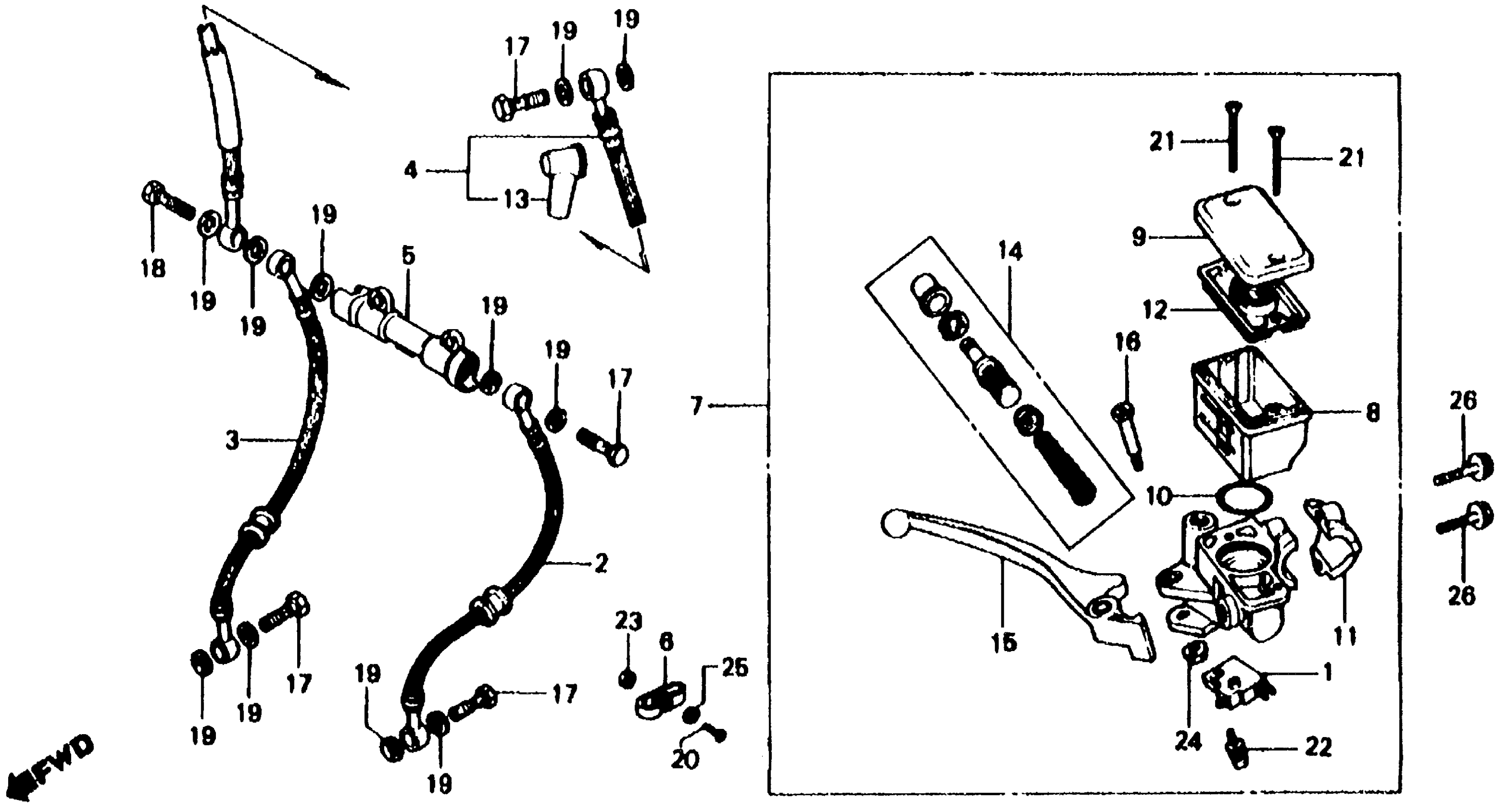

Honda CB750FA (82) 750 SUPER SPORT, JPN, VIN# JH2RC040-CM300003 TO JH2RC040-CM304252 FRONT BRAKE MASTER CYLINDER 81-82 Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$21.98

2

HOSE, L. FR. BRAKE This part replaces 45124-438-671.

45124-438-672

Unavailable

3

HOSE, R. FR. BRAKE This part replaces 45125-438-671.

45125-438-672

Unavailable

4

HOSE B, FR. BRAKE (NOT AVAILABLE) This part replaces 45126-425-831.

45126-425-832

Unavailable

4

HOSE B, FR. BRAKE (NOT AVAILABLE)

45126-425-832

Unavailable

5

JOINT, TWO-WAY

45127-422-003

Unavailable

6

CLAMP, BRAKE HOSE (NOT AVAILABLE)

45128-463-000

Unavailable

7

MASTER CYLINDER ASSY., FR. (NA USE ALT:45510-445-406)

45500-445-632

Unavailable

8

CUP, OIL

45511-MA5-671

$40.13

9

CAP, OIL CUP

45513-MA5-671

Unavailable

10

O-RING (26.7X2.4)

45516-166-006

$6.35

11

HOLDER, MASTER CYLINDER

45517-MA5-671

$26.32

12

DIAPHRAGM This part replaces 45520-MA5-671.

45520-MA5-672

$16.27

12

DIAPHRAGM

45520-MA5-672

$16.27

13

BOOT, MASTER CYLINDER

45522-422-000

$7.79

14

MASTER CYLINDER SET

45530-MA5-671

$64.38

15

LEVER, R. HANDLEBAR

53175-MA5-671

Unavailable

16

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$8.46

17

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$8.32

17

BOLT, OIL

90145-300-010

$8.32

18

BOLT, OIL This part replaces 90145-422-010.

90145-422-020

Unavailable

19

WASHER, OIL BOLT

90545-300-000

$3.72

20

SCREW, PAN (4X20)

93500-04020-0A

$0.75

21

SCREW, FLAT (4X45)

93600-04045-1G

$0.84

22

SCREW-WASHER (4X12)

93893-04012-08

$1.22

22

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.22

23

NUT, HEX. (4MM)

94002-04000-0S

$0.94

24

NUT, FLANGE (6MM)

94050-06000

$0.59

25

WASHER, PLAIN (4MM)

94101-04000

$0.90

26

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.64

26

BOLT, FLANGE (6X25)

95701-06025-07

$1.64
