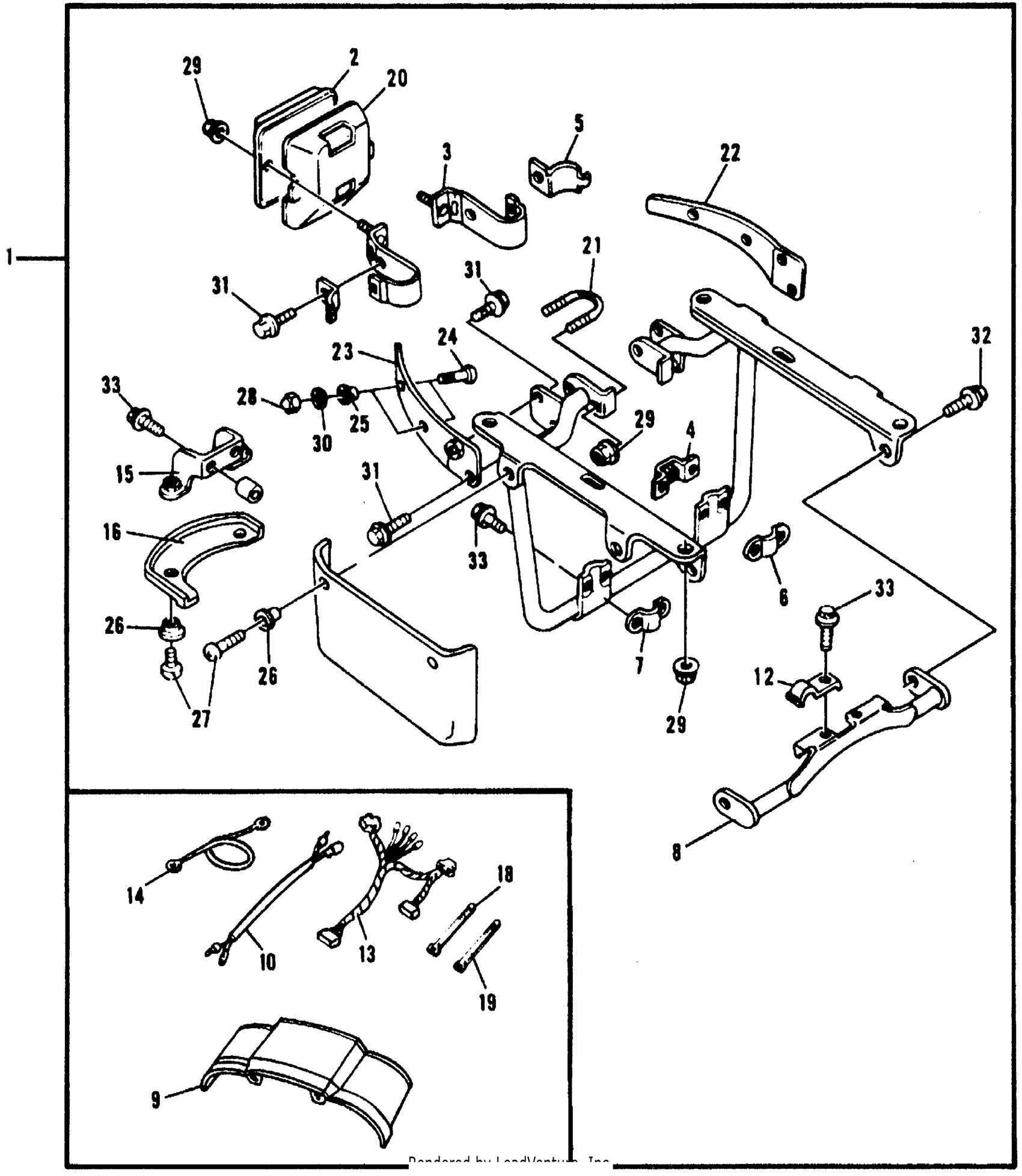

Honda CB750FA (82) 750 SUPER SPORT, JPN, VIN# JH2RC040-CM300003 TO JH2RC040-CM304252 FAIRING MOUNT SET 81-82 Diagram

#

Description
Price

1

MOUNT SET, FAIRING (NOT AVAILABLE)

08154-MA432

Unavailable

2

FAIRING

08154-MA43001

Unavailable

3

STAY

08154-MA43002

Unavailable

4

HORN STAY

08154-MA43003

Unavailable

5

BAND

08154-MA43004

Unavailable

6

PLATE, R. STAY

08154-MA43006

Unavailable

7

CLAMP, L.

08154-MA43007

Unavailable

8

STAY (UPPER)

08154-MA43008

Unavailable

9

METER, HOOD

08154-MA46001

Unavailable

10

SUB-HARNESS B

08154-MA46003

Unavailable

12

BAND, COWL STAY

08154-4611004

Unavailable

13

SUB-HARNESS F

08154-4610006

Unavailable

14

SUB-HARNESS C

08154-4610009

Unavailable

15

BRACKET, FR. COVER

08154-4611011

Unavailable

16

COVER, FR.

08154-4611012

Unavailable

18

BAND B1, CABLE

32161-404-000

$2.23

19

BAND, CABLE

32161-438-000

$4.13

20

HOLDER, CONNECTOR

61305-463-770

Unavailable

21

BOLT, COWL STAY MOUNT (NOT AVAILABLE)

62504-463-770

Unavailable

22

STAY, R. FR. COWL (NOT AVAILABLE)

64513-463-770

Unavailable

23

STAY, L. FR. COWL (NOT AVAILABLE)

64514-463-770

Unavailable

24

BOLT, FR. COWL MOUNT (NOT AVAILABLE)

90103-463-770

Unavailable

25

COLLAR, COWL SETTING

90120-463-770

Unavailable

26

WASHER, RR. COVER

90506-425-000

$2.89

27

SCREW, PAN (6X16)

93500-06016-0G

$1.49

29

NUT, FLANGE (6MM)

94050-06000

$1.49

30

WASHER, SPRING (6MM)

94111-06700

$1.49

31

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

31

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

32

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

32

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

33

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

33

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
