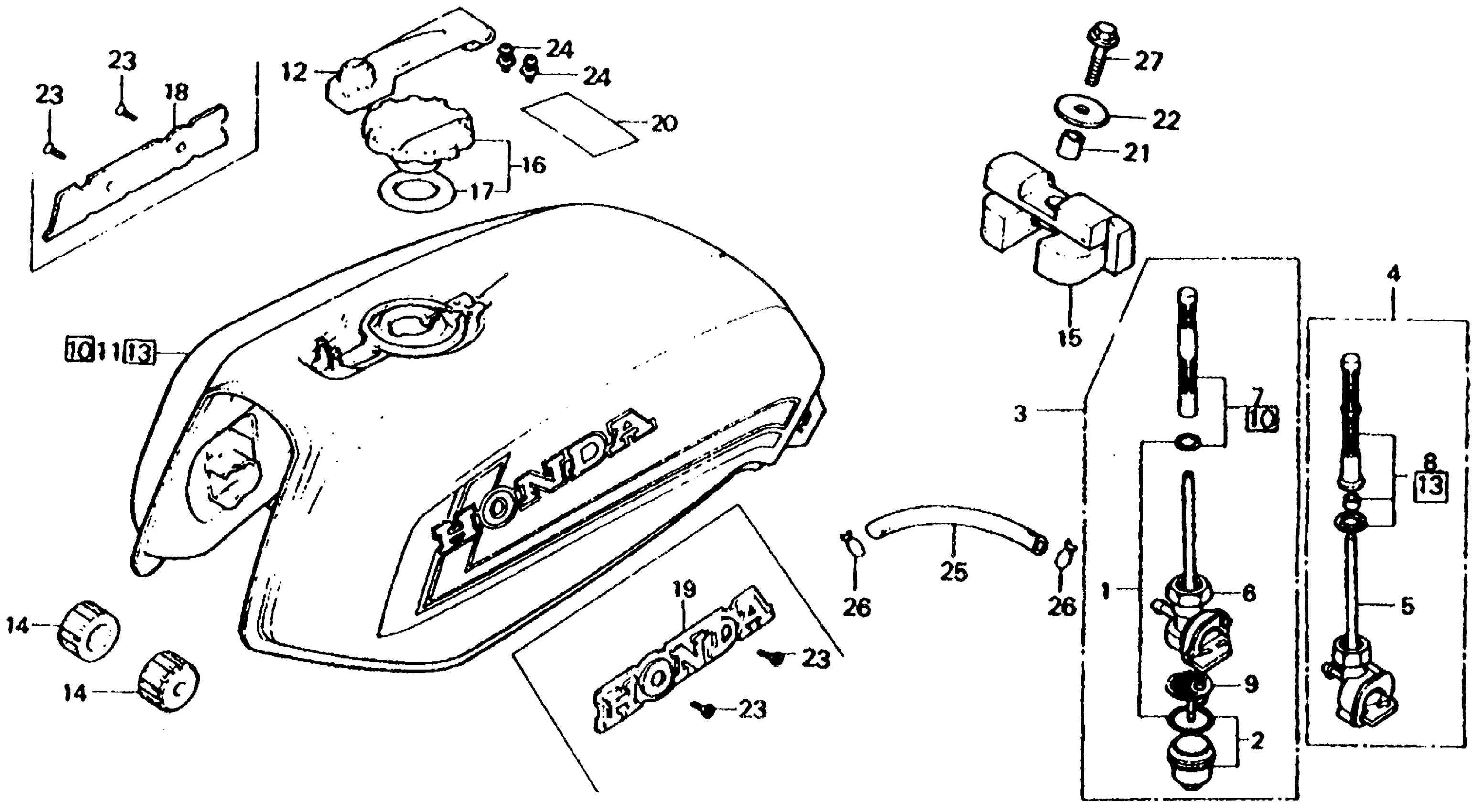

Honda CB750FA (81) 750 SUPER SPORT, JPN, VIN# JH2RC040-BM200001 TO JH2RC040-BM207766 FUEL TANK Diagram

#

Description
Price

4

PETCOCK ASSY.

16950-MA4-671

Unavailable

5

BODY, PETCOCK (NOT AVAILABLE)

16951-461-771

Unavailable

8

SCREEN SET, FUEL STRAINER

16952-MA4-671

Unavailable

12

LID, FUEL TANK (NOT AVAILABLE)

17530-443-305

Unavailable

12

LID, FUEL TANK (NOT AVAILABLE) This part replaces 17530-443-612.

17530-443-305

Unavailable

13

TANK SET, FUEL *NH104MU* (PLEIADES SILVER METALLIC) (NOT AVAILABLE)

175A1-445-630ZA

Unavailable

13

TANK SET, FUEL *NH1* (BLACK) (NOT AVAILABLE)

175A1-445-630ZB

Unavailable

13

TANK SET, FUEL *NH104MU* (PLEIADES SILVER METALLIC) (NOT AVAILABLE) This part replaces 17540-445-630ZA.

175A1-445-630ZA

Unavailable

13

TANK SET, FUEL *NH1* (BLACK) (NOT AVAILABLE) This part replaces 17540-445-630ZB.

175A1-445-630ZB

Unavailable

14

RUBBER, FR. FUEL TANK

17611-425-000

$7.61

15

RUBBER, RR. FUEL TANK

17613-438-000

Unavailable

16

CAP, FUEL FILLER

17620-469-000

Unavailable

17

GASKET This part replaces 17632-176-771.

17632-176-772

$9.90

17

GASKET This part replaces 17632-469-000.

17632-176-772

$9.90

18

EMBLEM, R. FUEL TANK (NOT AVAILABLE)

87121-445-000

Unavailable

19

EMBLEM, L. FUEL TANK (NOT AVAILABLE)

87122-445-000

Unavailable

20

MARK, DRIVE CAUTION (TYPEB) This part replaces 87560-181-760.

87560-181-760ZE

$3.68

20

LABEL, DRIVE CAUTION *NH0* (TYPEW) (CHAMPIONSHIP WHITE)

87560-181-760ZB

Unavailable

20

LABEL, DRIVE CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87560-181-760ZD

Unavailable

20

MARK, DRIVE CAUTION (TYPEB)

87560-181-760ZE

$3.68

21

COLLAR (8MM)

90324-300-000

$4.04

22

WASHER (8.3MM)

90534-011-000

$1.41

23

SCREW, OVAL (4X6)

93700-04006-0G

$0.91

24

SCREW-WASHER (4X6)

93892-04006-00

$0.46

27

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.62

27

BOLT, FLANGE (8X25)

95701-08025-00

$1.62
