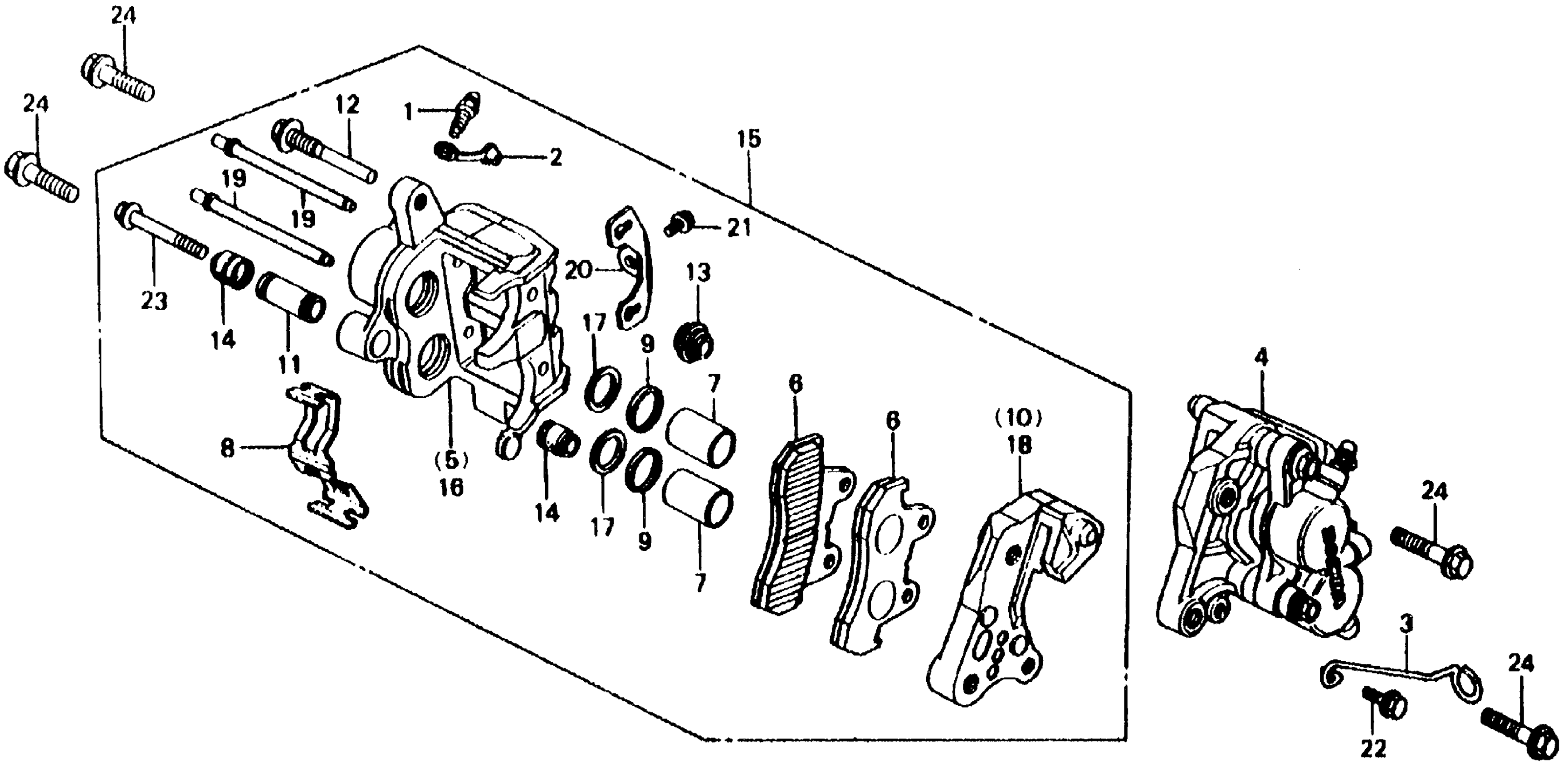

Honda CB750FA (81) 750 SUPER SPORT, JPN, VIN# JH2RC040-BM200001 TO JH2RC040-BM207766 FRONT BRAKE CALIPER 81-82 Diagram

#

Description
Price

NI

PAD SET This part replaces 06455-KN8-405.

06455-MM9-405

$36.44

NI

PAD SET This part replaces 451A0-443-670.

06455-MM9-405

$36.44

1

SCREW, BLEEDER

43352-568-003

$7.95

2

CAP, BLEEDER

43353-461-771

$5.05

3

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-MA3-000

Unavailable

4

CALIPER, L. FR. | Use up to Frame SN BM204787 This part replaces 45100-445-631.

45100-445-407

Unavailable

4

CALIPER ASSY., L. FR. (NOT AVAILABLE) | Use up to Frame SN BM204787

45100-445-632

Unavailable

4

CALIPER, L. FR. This part replaces 45100-445-633.

45100-445-407

Unavailable

4

CALIPER, L. FR. This part replaces 45100-445-634.

45100-445-407

Unavailable

5

CALIPER, L.

45101-MA3-006

Unavailable

6

PAD, FR. This part replaces 45105-KN8-026.

45105-MM9-782

$24.40

6

PAD, FR. This part replaces 45105-443-761.

45105-MM9-782

$24.40

6

PAD, FR. This part replaces 45105-443-762.

45105-MM9-782

$24.40

7

PISTON

45107-MA3-006

$50.26

8

SPRING, PAD

45108-MA3-006

$6.28

9

DUST SEAL

45109-166-006

$6.41

10

BRACKET, L. FR. | Use up to Frame SN BM204787 This part replaces 45110-445-631.

45110-445-632

Unavailable

10

BRACKET, L. FR. | Use up to Frame SN BM204787

45110-445-632

Unavailable

10

BRACKET, L. FR.

45110-445-632

Unavailable

11

SLEEVE

45111-MA3-006

$13.38

12

PIN, BOLT

45131-MA3-006

$17.59

13

BOOT B

45133-MA3-006

$5.46

14

BOOT, PIN

45133-166-016

$3.85

15

CALIPER ASSY., R. FR. (JB) (NISSHIN) (NOT AVAILABLE) | Use up to Frame SN BM204787

45200-445-631

Unavailable

15

CALIPER ASSY., R. FR. (JB) (NISSHIN) (N/A: SEE COMPONENTS) | Use up to Frame SN BM204787 This part replaces 45200-445-632.

45200-445-633

Unavailable

15

CALIPER ASSY., R. FR. (JB) (NISSHIN) (N/A: SEE COMPONENTS)

45200-445-633

Unavailable

15

CALIPER ASSY., R. FR. (JB) (NISSHIN) (N/A: SEE COMPONENTS) This part replaces 45200-445-634.

45200-445-633

Unavailable

16

CALIPER, R. (NOT AVAILABLE)

45201-MA3-006

Unavailable

17

SEAL, PISTON

45209-166-006

$8.64

18

BRACKET, R. FR. (NOT AVAILABLE) | Use up to Frame SN BM204787 This part replaces 45210-438-731.

45210-445-632

Unavailable

18

BRACKET, R. FR. (NOT AVAILABLE) | Use up to Frame SN BM204787 This part replaces 45210-445-631.

45210-445-632

Unavailable

18

BRACKET, R. FR. (NOT AVAILABLE)

45210-445-632

Unavailable

19

PIN, HANGER

45215-MA3-006

$12.77

20

PLATE

45217-MA3-006

$4.45

21

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

21

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

22

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

22

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

23

BOLT, FLANGE (8X50) This part replaces 95800-08050-07.

95801-08050-07

$1.85

23

BOLT, FLANGE (8X50)

95801-08050-07

$1.85

24

BOLT, FLANGE (10X40) This part replaces 95800-10040-07.

95801-10040-07

$1.79

24

BOLT, FLANGE (10X40)

95801-10040-07

$1.79
