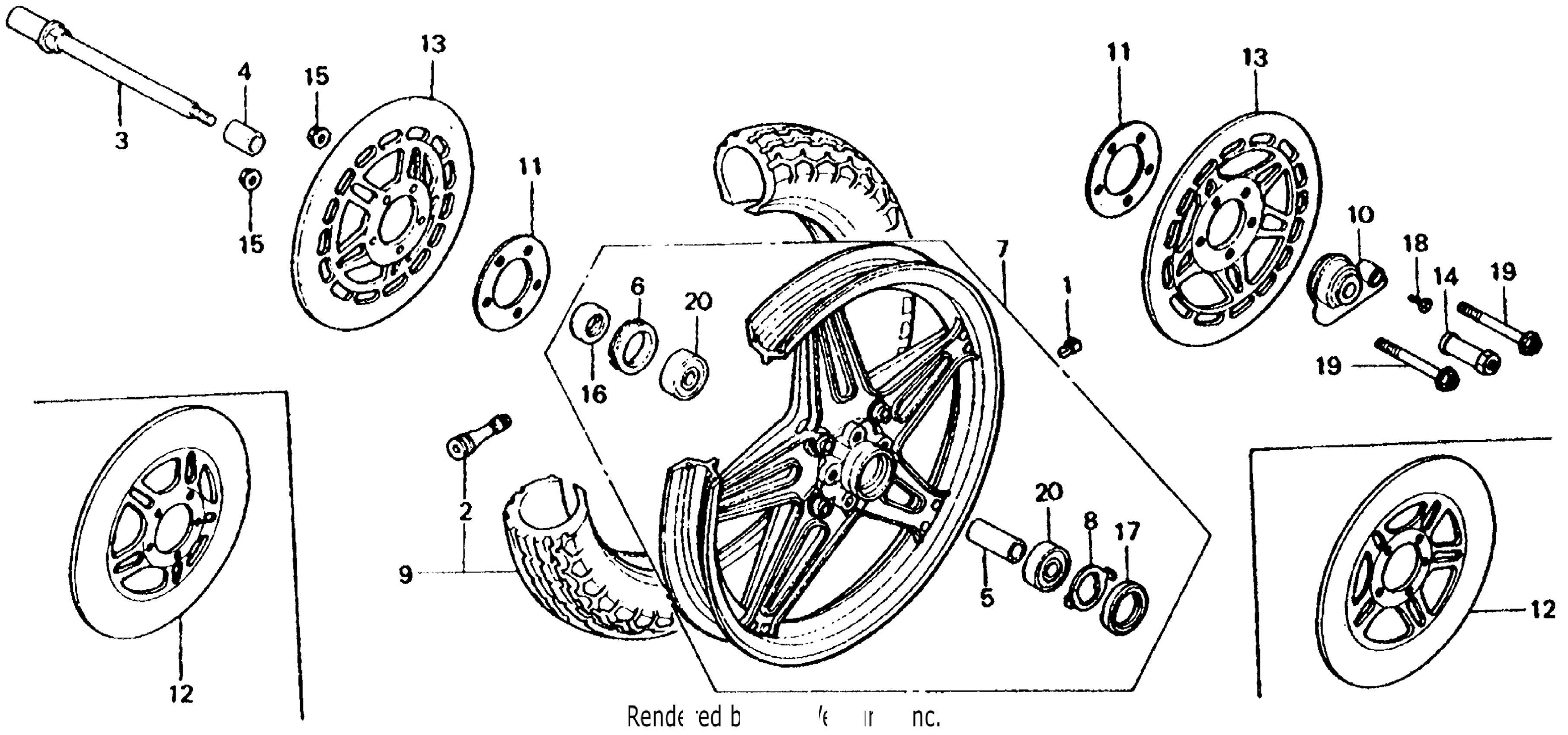

Honda CB750FA (80) 750 SUPER SPORT, JPN, VIN# RC04-2100003 TO RC04-2116089 FRONT WHEEL 80-82 Diagram

#

Description
Price

1

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

1

WEIGHT, BALANCE (30G)

42706-410-000

$11.69

2

VALVE, RIM (BS)

42753-425-003

$11.00

2

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

3

AXLE, FR. WHEEL (NOT AVAILABLE) This part replaces 44301-393-000.

44301-425-870

Unavailable

3

AXLE, FR. WHEEL (NOT AVAILABLE) This part replaces 44301-422-000.

44301-425-870

Unavailable

3

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-425-870

Unavailable

4

COLLAR, FR. WHEEL SIDE (NOT AVAILABLE) This part replaces 44311-410-000.

44311-425-870

Unavailable

5

COLLAR, FR. WHEEL DISTANCE

44620-410-000

Unavailable

6

RETAINER, FR. WHEEL BEARING

44643-300-000

$15.70

7

WHEEL, FR. (NOT AVAILABLE)

44650-445-771

Unavailable

8

RETAINER, GEAR BOX

44680-410-000

$5.80

9

TIRE ASSY., FR. (3.25H19) (BS) (NOT AVAILABLE) This part replaces 44710-445-671.

44711-426-671

Unavailable

9

TIRE ASSY., FR. (3.25H19) (DUNLOP) (NOT AVAILABLE) TIRE ASSY., FR. (3.25H19) (BS)

44710-445-672

Unavailable

9

TIRE ASSY., FR. (3.25H19) (BS) (NOT AVAILABLE)

44711-426-671

Unavailable

10

BOX ASSY., SPEEDOMETER GEAR

44800-425-013

Unavailable

12

DISK, FR. BRAKE

452A5-438-305

Unavailable

12

DISK, FR. BRAKE This part replaces 45251-422-000.

452A5-438-305

Unavailable

12

DISK, FR. BRAKE This part replaces 45251-422-010.

452A5-438-305

Unavailable

14

NUT, AXLE (12MM) (NOT AVAILABLE) This part replaces 90305-333-000.

90306-425-870

Unavailable

14

NUT, AXLE (12MM) (NOT AVAILABLE)

90306-425-870

Unavailable

15

NUT, HEX. (8MM)

90309-357-000

$3.40

16

DUST SEAL (22X36X8)

91252-300-003

$10.73

17

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-003.

91258-410-013

$9.80

17

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-006.

91258-410-013

$9.80

17

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

18

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

19

BOLT, FLANGE (8X100) (NOT AVAILABLE)

95812-08100-00

Unavailable

20

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

20

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
