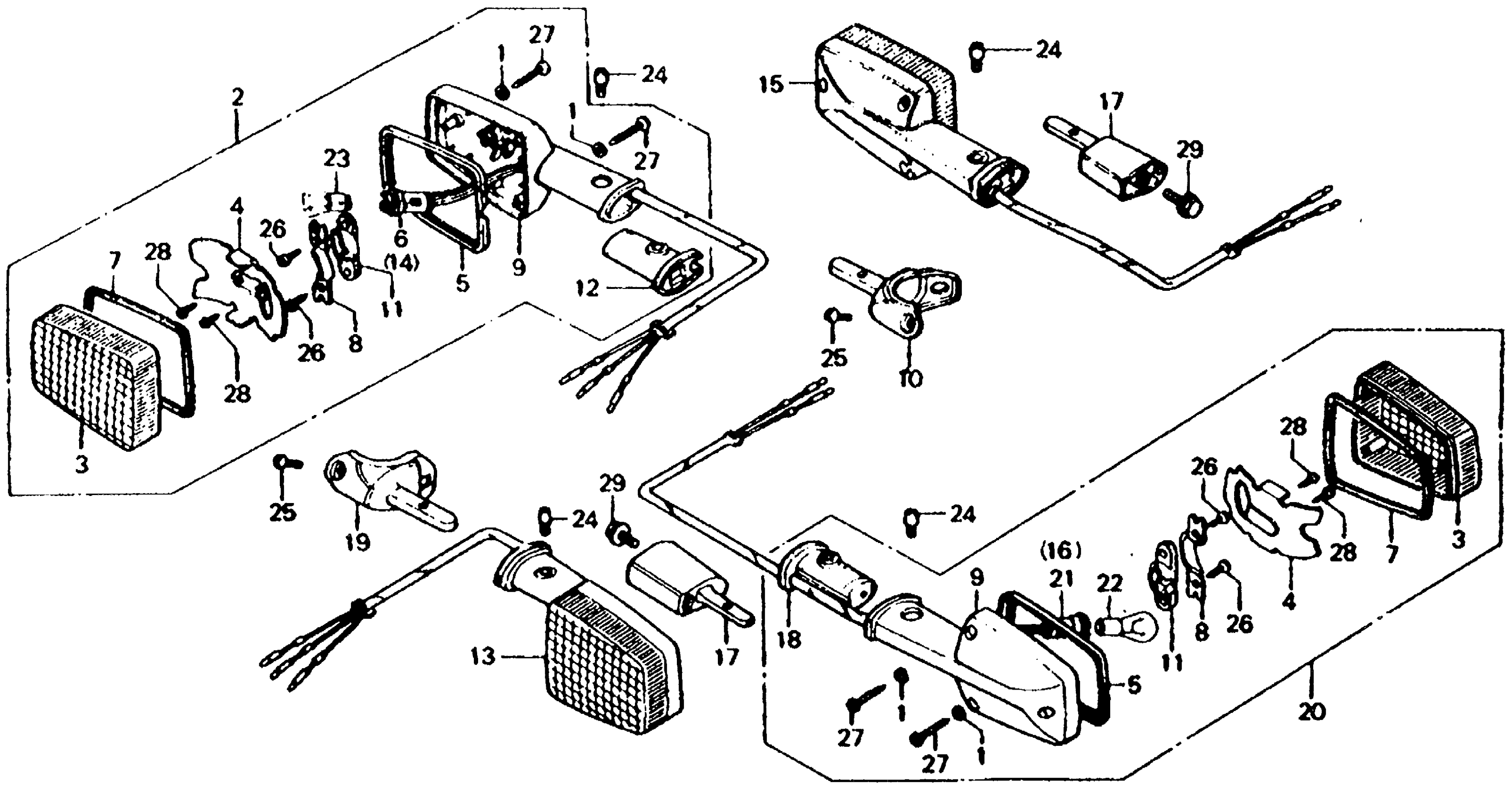

Honda CB750FA (79) 750 SUPER SPORT, JPN, VIN# RC04-2000023 TO RC04-2010669 TURN SIGNAL Diagram

#

Description
Price

1

WASHER

33318-567-003

$1.58

2

TURN SIGNAL ASSY., R. FR. This part replaces 33400-445-671.

33400-445-679

Unavailable

2

TURN SIGNAL ASSY., R. FR.

33400-445-679

Unavailable

2

TURN SIGNAL ASSY., R. FR. This part replaces 33450-445-671.

33400-445-679

Unavailable

3

LENS, TURN SIGNAL

33402-431-782

Unavailable

4

REFLECTOR, TURN SIGNAL (NOT AVAILABLE)

33403-431-782

Unavailable

5

RIM, TURN SIGNAL (NOT AVAILABLE)

33404-438-003

Unavailable

6

SOCKET, R. FR. TURN SIGNAL (NOT AVAILABLE) This part replaces 33405-425-671.

33405-425-672

Unavailable

6

SOCKET, R. FR. TURN SIGNAL (NOT AVAILABLE)

33405-425-672

Unavailable

7

GASKET, TURN SIGNAL LENS

33406-431-781

Unavailable

8

HOLDER, SOCKET (NOT AVAILABLE)

33407-431-781

Unavailable

9

BASE, TURN SIGNAL (NOT AVAILABLE)

33409-438-003

Unavailable

10

STAY, R. FR. TURN SIGNAL

33410-425-000

Unavailable

11

RUBBER, SOCKET

33411-431-782

Unavailable

12

RUBBER, FR. TURN SIGNAL (NOT AVAILABLE)

33417-425-000

Unavailable

13

TURN SIGNAL ASSY., R. FR.

33400-445-679

Unavailable

13

TURN SIGNAL ASSY., R. FR. This part replaces 33450-445-671.

33400-445-679

Unavailable

14

SOCKET, L. FR. TURN SIGNAL This part replaces 33455-425-671.

33455-425-672

Unavailable

14

SOCKET, L. FR. TURN SIGNAL

33455-425-672

Unavailable

15

TURN SIGNAL ASSY., R. RR. (NOT AVAILABLE) This part replaces 33600-445-671.

33600-445-679

Unavailable

15

TURN SIGNAL ASSY., R. RR. (NOT AVAILABLE)

33600-445-679

Unavailable

15

TURN SIGNAL ASSY., R. RR. (NOT AVAILABLE) This part replaces 33650-445-671.

33600-445-679

Unavailable

16

SOCKET, R. RR. TURN SIGNAL This part replaces 33605-431-781.

33605-431-782

$14.18

16

SOCKET, R. RR. TURN SIGNAL

33605-431-782

$14.18

17

STAY, RR. TURN SIGNAL

33605-438-000

Unavailable

18

RUBBER, RR. TURN SIGNAL SETTING (NOT AVAILABLE)

33609-425-000

Unavailable

19

STAY, L. FR. TURN SIGNAL (NOT AVAILABLE)

33610-425-000

Unavailable

20

TURN SIGNAL ASSY., R. RR. (NOT AVAILABLE)

33600-445-679

Unavailable

20

TURN SIGNAL ASSY., R. RR. (NOT AVAILABLE) This part replaces 33650-445-671.

33600-445-679

Unavailable

21

SOCKET COMP.L.RR. This part replaces 33655-431-781.

33655-MA1-671

Unavailable

21

SOCKET COMP.L.RR. This part replaces 33655-431-782.

33655-MA1-671

Unavailable

22

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

23

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

23

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

24

SCREW, OVAL (5X8)

90380-431-780

Unavailable

25

SCREW, PAN (6X12)

93500-06012-0G

$1.49

26

SCREW, TAPPING (4X8)

93901-24120

$2.30

27

SCREW, TAPPING (4X25)

93901-24680

$1.49

28

SCREW, TAPPING (3X6)

93901-32020

Unavailable

29

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

29

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
