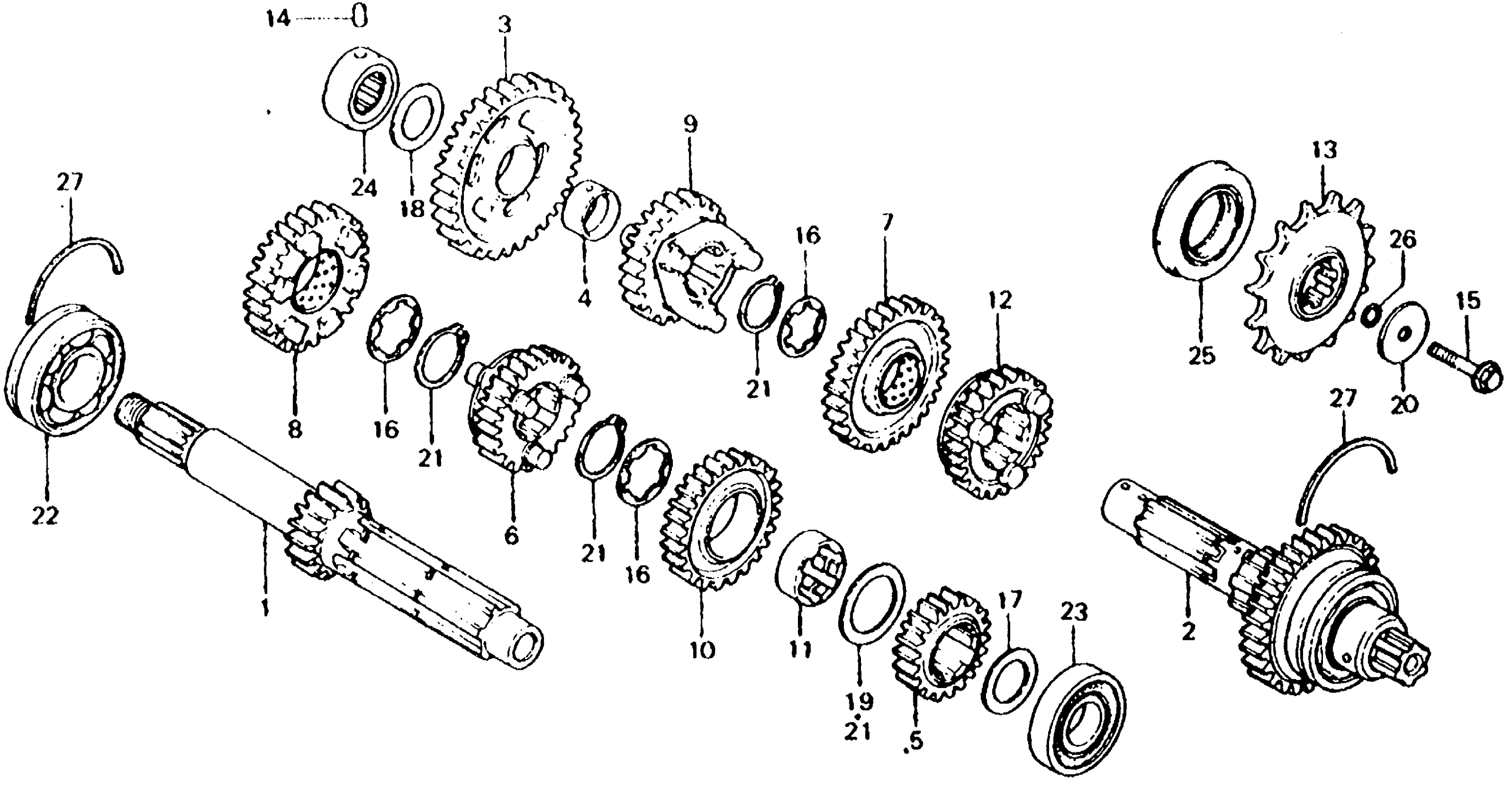

Honda CB750FA (79) 750 SUPER SPORT, JPN, VIN# RC04-2000023 TO RC04-2010669 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (15T) (NOT AVAILABLE)

23211-425-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION (34T)

23220-425-010

Unavailable

3

GEAR, COUNTERSHAFT LOW (38T) (NOT AVAILABLE)

23411-425-000

Unavailable

4

BUSH, COUNTERSHAFT LOW GEAR (NOT AVAILABLE)

23422-425-000

Unavailable

5

GEAR, MAINSHAFT SECOND (19T)

23431-425-000

Unavailable

6

GEAR, MAINSHAFT THIRD (23T) This part replaces 23451-425-000.

23451-MC3-630

Unavailable

6

GEAR, MAINSHAFT THIRD (23T) This part replaces 23451-425-010.

23451-MC3-630

Unavailable

6

GEAR, MAINSHAFT THIRD (23T)

23451-MC3-630

Unavailable

6

GEAR, MAINSHAFT THIRD (23T) This part replaces 23451-438-010.

23451-MC3-630

Unavailable

7

GEAR, COUNTERSHAFT THIRD (32T) (NOT AVAILABLE) This part replaces 23461-425-000.

23461-438-010

Unavailable

7

GEAR, COUNTERSHAFT THIRD (32T) (NOT AVAILABLE) This part replaces 23461-425-010.

23461-438-010

Unavailable

7

GEAR, COUNTERSHAFT THIRD (32T)

23462-425-020

Unavailable

8

GEAR, MAINSHAFT FOURTH (25T) | Use up to Engine SN 2108118 This part replaces 23471-425-000.

23471-425-030

Unavailable

8

GEAR, MAINSHAFT FOURTH (25T) | Use up to Engine SN 2108118 This part replaces 23471-425-010.

23471-425-030

Unavailable

8

GEAR, MAINSHAFT FOURTH (25T) | Use up to Engine SN 2108118 This part replaces 23471-425-020.

23471-425-030

Unavailable

8

GEAR, MAINSHAFT FOURTH (25T) | Use up to Engine SN 2108118

23471-425-030

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (29T) This part replaces 23481-425-000.

23481-438-000

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (29T) (NOT AVAILABLE)

23481-425-010

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (29T)

23481-438-000

Unavailable

10

GEAR, MAINSHAFT FIFTH (28T) (NOT AVAILABLE) This part replaces 23491-425-000.

23491-MG1-670

Unavailable

10

GEAR, MAINSHAFT FIFTH (28T) (NOT AVAILABLE) This part replaces 23491-461-000.

23491-MG1-670

Unavailable

10

GEAR, MAINSHAFT FIFTH (28T) (NOT AVAILABLE) This part replaces 23491-MC3-630.

23491-MG1-670

Unavailable

10

GEAR, MAINSHAFT FIFTH (28T) (NOT AVAILABLE) This part replaces 23491-425-010.

23491-MG1-670

Unavailable

11

COLLAR, SPLINE (28X17) (NOT AVAILABLE)

23495-422-000

Unavailable

12

GEAR, COUNTERSHAFT FIFTH (27T)

23501-MC3-630

Unavailable

12

GEAR, COUNTERSHAFT FIFTH (27T) This part replaces 23501-425-000.

23501-MC3-630

Unavailable

13

SPROCKET, DRIVE (15T)

23801-425-670

Unavailable

14

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

15

BOLT, SPECIAL (10MM) This part replaces 90037-422-000.

90037-422-003

$7.32

15

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

16

WASHER, THRUST (28MM)

90451-422-000

$8.36

17

WASHER, THRUST (22.5MM) (NOT AVAILABLE) | Use from Engine SN 2007944

90453-426-000

Unavailable

17

WASHER, THRUST (22.5MM) (NOT AVAILABLE) | Use up to Engine SN 2007943 This part replaces 90453-704-000.

90453-426-000

Unavailable

18

WASHER, THRUST (NOT AVAILABLE)

90457-425-000

Unavailable

19

WASHER (27MM) (NOT AVAILABLE)

90457-703-000

Unavailable

20

WASHER (10.2MM) (NOT AVAILABLE) | Use up to Engine SN 2009898

90459-422-000

Unavailable

20

WASHER (10.2MM) | Use from Engine SN 2009899

90459-438-000

$5.83

21

CIRCLIP (OUTER) (28MM)

90601-422-000

$2.98

22

BEARING, RADIAL BALL (6305)

91004-MG5-671

Unavailable

22

BEARING, BALL (6305) (NACHI) This part replaces 91004-657-003.

91004-657-008

$54.92

22

BEARING, BALL (6305) (NACHI)

91004-657-008

$54.92

22

BEARING, RADIAL BALL (6305) This part replaces 91004-689-000.

91004-MG5-671

Unavailable

23

BEARING, RADIAL BALL (63/22U) (NOT AVAILABLE)

91005-425-003

Unavailable

24

BEARING, NEEDLE (22MM) (NOT AVAILABLE) | Use up to Engine SN 2008888 This part replaces 91022-425-008.

91022-438-008

Unavailable

24

BEARING, NEEDLE (22MM) (NOT AVAILABLE) | Use from Engine SN 2008889

91022-438-008

Unavailable

25

OIL SEAL (40X62X13)

91205-425-003

$32.89

26

O-RING (9.8X2.4)

91305-422-000

$2.47

26

O-RING (9.8X2.4) This part replaces 91352-425-003.

91305-422-000

$2.47

26

O-RING (9.8X2.4) This part replaces 91352-526-000.

91305-422-000

$2.47

27

SET-RING (62MM) (NOT AVAILABLE) This part replaces 95015-26200.

90602-428-000

Unavailable

27

SET-RING (62MM) (NOT AVAILABLE)

90602-428-000

Unavailable
