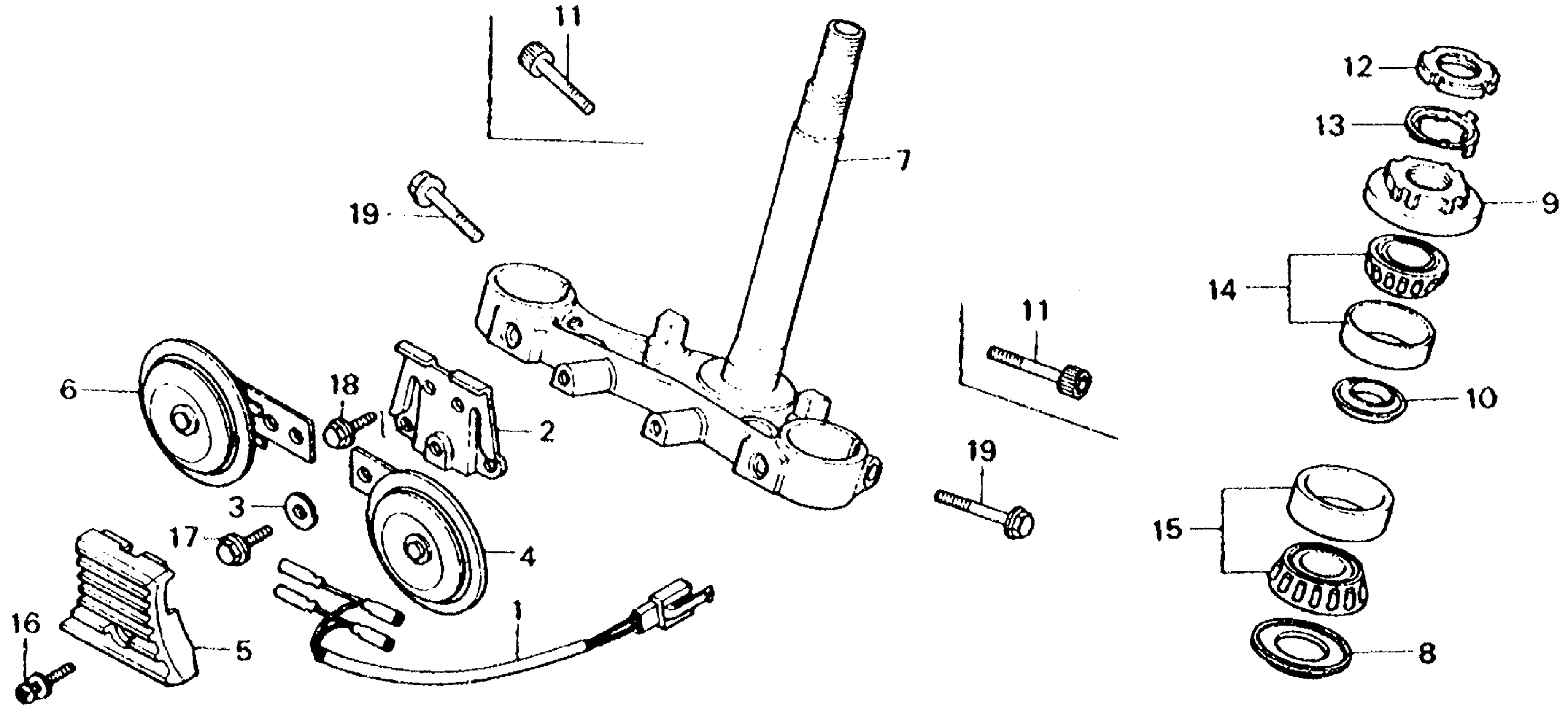

Honda CB750FA (79) 750 SUPER SPORT, JPN, VIN# RC04-2000023 TO RC04-2010669 STEERING STEM + HORN Diagram

SUB-WIRE HARNESS A (NOT AVAILABLE)

32101-438-000

Unavailable

STAY, HORN (NOT AVAILABLE)

38102-438-004

Unavailable

WASHER, PLAIN (20MM) (NOT AVAILABLE)

38106-410-004

Unavailable

HORN (HIGH) (MITSUBA)

38110-GT8-621

$55.64

HORN (HIGH) (MITSUBA) This part replaces 38110-ME2-601.

38110-GT8-621

$55.64

HORN (HIGH) (MITSUBA) This part replaces 38110-410-004.

38110-GT8-621

$55.64

HORN (HIGH) (MITSUBA) This part replaces 38110-438-004.

38110-GT8-621

$55.64

HORN (HIGH) (MITSUBA) This part replaces 38110-438-601.

38110-GT8-621

$55.64

EMBLEM, HORN (NOT AVAILABLE)

38111-438-000

Unavailable

HORN (LOW) This part replaces 38120-438-004.

38120-438-601

Unavailable

HORN (LOW)

38120-438-601

Unavailable

STEM, STEERING *NH1* (BLACK)

53200-425-000ZA

Unavailable

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

THREAD, STEERING HEAD (UPPER)

53220-422-000

$32.73

HOLDER, GREASE

53223-371-010

Unavailable

BOLT, SOCKET (10X32) (NOT AVAILABLE)

90164-422-000

Unavailable

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-371-000

Unavailable

BEARING, HEAD PIPE (LOWER)

91016-371-000

$55.12

SCREW-WASHER (5X20)

93891-05020-07

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
