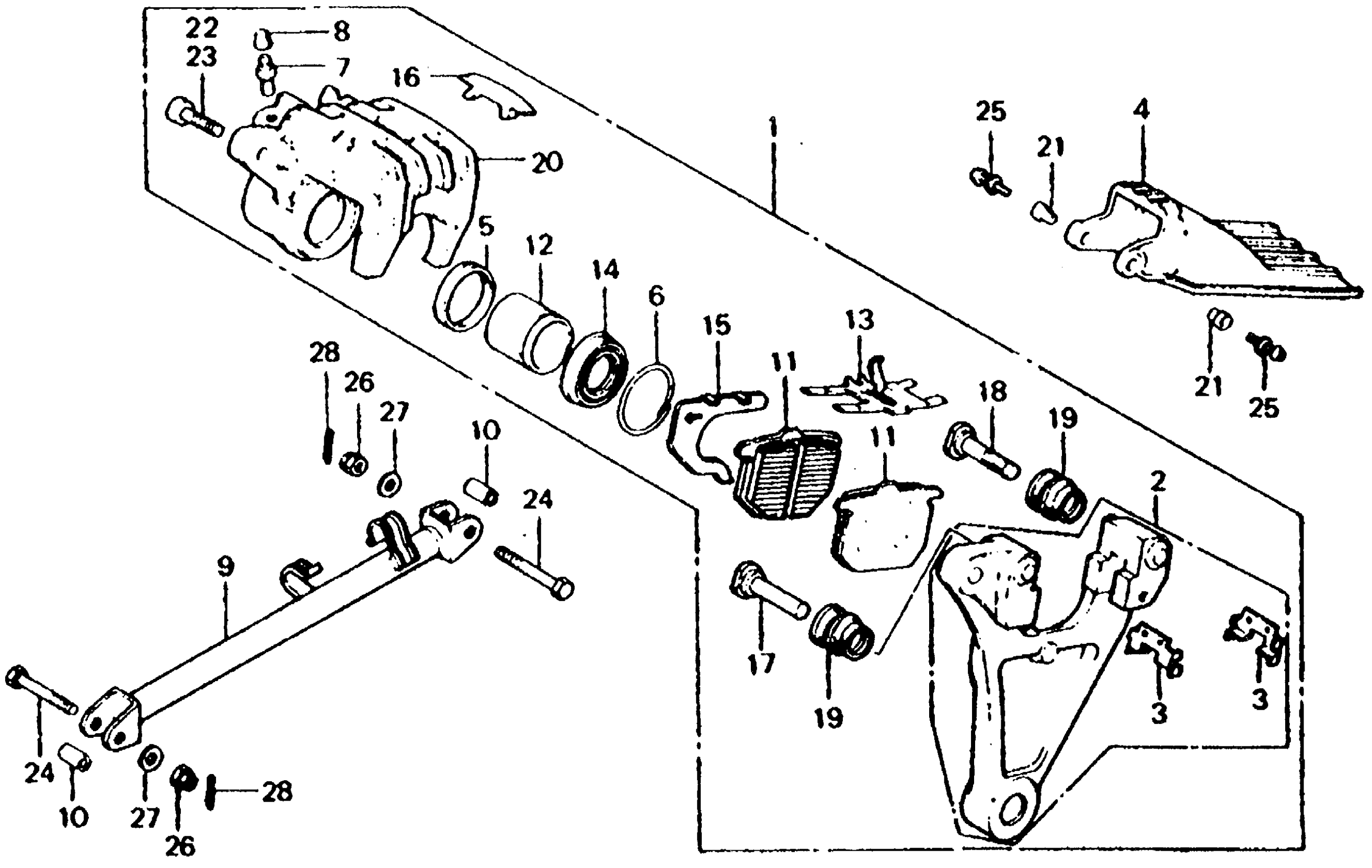

Honda CB750FA (79) 750 SUPER SPORT, JPN, VIN# RC04-2000023 TO RC04-2010669 REAR BRAKE CALIPER 79-80 Diagram

#

Description
Price

NI

PAD SET, BRAKE This part replaces 06455-371-405.

06455-410-406

Unavailable

NI

PAD SET, BRAKE This part replaces 06455-438-405.

06455-410-406

Unavailable

NI

PAD SET, BRAKE This part replaces 451A0-438-670.

06455-410-406

Unavailable

1

CALIPER ASSY., RR. (JB) (NISSHIN) (NOT AVAILABLE)

43100-438-006

Unavailable

1

CALIPER ASSY., RR. (ASK) (NISSHIN) CALIPER ASSY., RR. (JB)

43100-438-007

Unavailable

2

BRACKET, RR. (NOT AVAILABLE)

43110-410-006

Unavailable

3

RETAINER, RR. BRACKET (NISSHIN)

43112-410-006

Unavailable

4

COVER, RR. DISK (NOT AVAILABLE)

43140-410-000

Unavailable

5

SEAL, PISTON (38MM)

43209-371-006

$10.85

6

CLIP, DUST COVER

43218-371-006

$13.86

7

SCREW, BLEEDER

43352-568-003

$7.95

8

CAP, BLEEDER SCREW

43353-548-003

$4.93

9

LINK, TORQUE (NOT AVAILABLE)

43431-422-000

Unavailable

10

COLLAR, LINK

43435-392-000

$5.90

11

PAD COMP This part replaces 45105-410-305.

45105-410-005

Unavailable

11

PAD COMP This part replaces 45105-438-000.

45105-410-005

Unavailable

11

PAD COMP This part replaces 45105-438-004.

45105-410-005

Unavailable

11

PAD COMP This part replaces 45105-438-007.

45105-410-005

Unavailable

12

PISTON (NISSHIN)

45107-410-006

Unavailable

13

SPRING, PAD (NISSHIN)

45108-410-006

Unavailable

14

BOOT, PISTON

45109-371-006

$26.38

15

SHIM B, PAD

45116-371-006

Unavailable

16

CAP, INDICATOR

45119-371-000

Unavailable

17

PIN A (NISSHIN)

45131-410-006

Unavailable

18

PIN B (NISSHIN)

45132-410-006

Unavailable

19

COVER, DUST

45133-371-006

$7.68

20

CALIPER, R. (NOT AVAILABLE) This part replaces 45201-410-006.

45201-442-701

Unavailable

20

CALIPER, R. (NOT AVAILABLE) BODY, R. CALIPER

45201-442-701

Unavailable

21

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

23

BOLT, SOCKET (8X23)

90116-422-006

Unavailable

24

BOLT, RR. BRAKE STOPPER ARM

90124-392-000

Unavailable

25

SCREW-WASHER (5X16)

93892-05016-07

$1.49

26

NUT, SELF-LOCK (8MM)

94011-08000-0S

$9.38

27

WASHER, PLAIN (8MM)

94101-08000

$1.49

28

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

28

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

28

PIN, COTTER (2.0X22)

94201-20220

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

28

PIN, COTTER (2.0X35)

94201-20350

$1.49

28

PIN, COTTER (2.0X22)

94201-29220

$1.49
