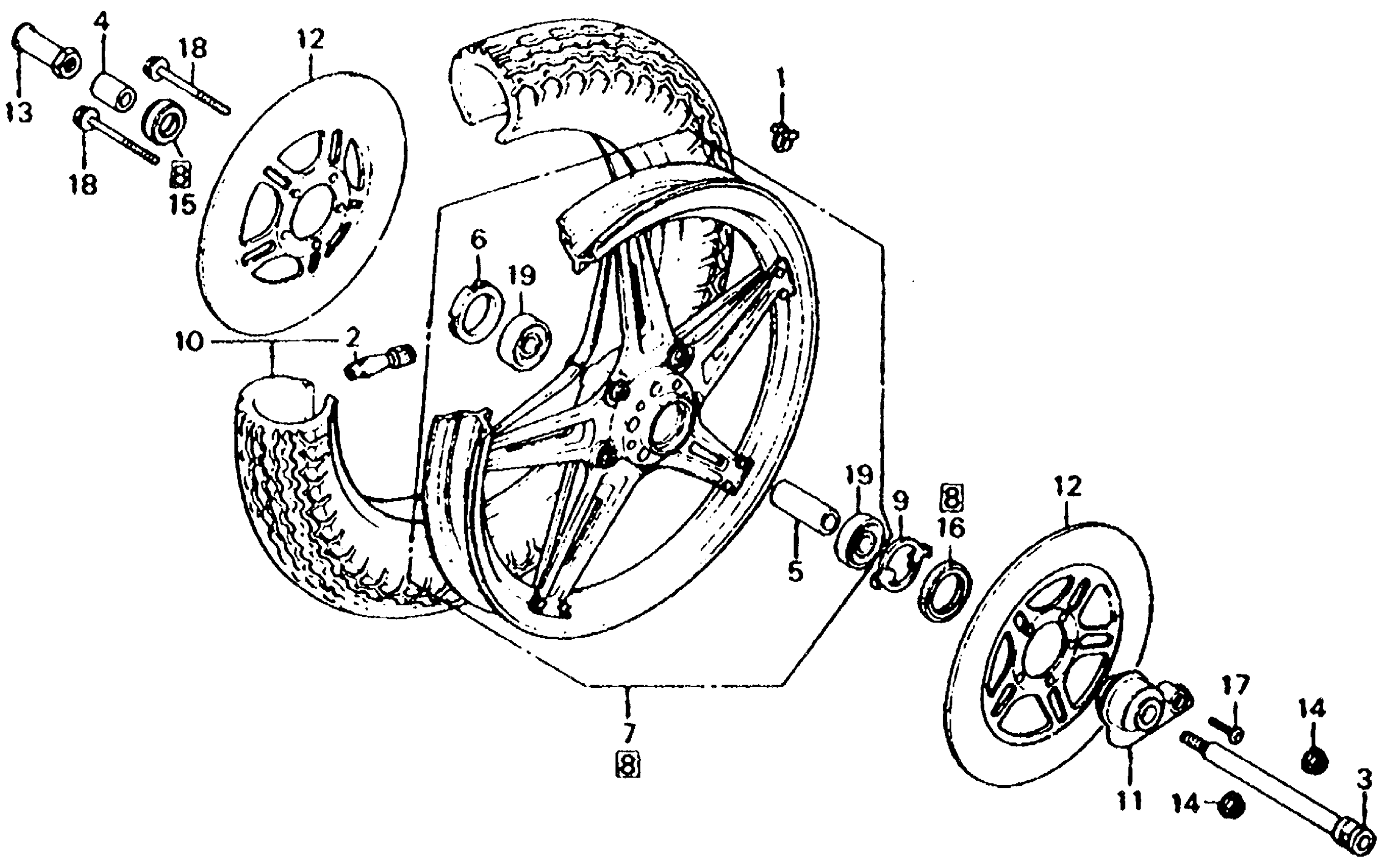

Honda CB750FA (79) 750 SUPER SPORT, JPN, VIN# RC04-2000023 TO RC04-2010669 FRONT WHEEL 79 Diagram

#

Description
Price

1

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

1

WEIGHT, BALANCE (30G)

42706-410-000

$11.69

2

VALVE, RIM (BS)

42753-425-003

$11.00

2

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

3

AXLE, FR. WHEEL (NOT AVAILABLE) This part replaces 44301-422-000.

44301-425-870

Unavailable

3

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-425-870

Unavailable

4

COLLAR, FR. WHEEL SIDE (NOT AVAILABLE) This part replaces 44311-410-000.

44311-425-870

Unavailable

5

COLLAR, FR. WHEEL DISTANCE

44620-410-000

Unavailable

6

RETAINER, FR. WHEEL BEARING

44643-300-000

$15.70

7

WHEEL, FR. (NOT AVAILABLE) This part replaces 44650-422-305.

44650-422-315

Unavailable

7

WHEEL, FR. (NOT AVAILABLE)

44650-422-315

Unavailable

8

WHEEL, FR. (NOT AVAILABLE)

44650-422-315

Unavailable

9

RETAINER, GEAR BOX

44680-410-000

$5.80

10

TIRE ASSY., FR. (3.25H19) (BS) (NOT AVAILABLE) This part replaces 44710-445-671.

44711-426-671

Unavailable

10

TIRE ASSY., FR. (3.25H19) (DUNLOP) (NOT AVAILABLE)

44710-445-672

Unavailable

10

TIRE ASSY., FR. (3.25H19) (BS) (NOT AVAILABLE)

44711-426-671

Unavailable

11

BOX ASSY., SPEEDOMETER GEAR

44800-425-013

Unavailable

12

DISK, FR. BRAKE

452A5-438-305

Unavailable

12

DISK, FR. BRAKE This part replaces 45251-422-000.

452A5-438-305

Unavailable

12

DISK, FR. BRAKE This part replaces 45251-422-010.

452A5-438-305

Unavailable

13

NUT, AXLE (12MM) (NOT AVAILABLE) This part replaces 90305-333-000.

90306-425-870

Unavailable

13

NUT, AXLE (12MM) (NOT AVAILABLE)

90306-425-870

Unavailable

14

NUT, HEX. (8MM)

90309-357-000

$3.40

15

DUST SEAL (22X36X8)

91252-300-003

$10.73

16

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-003.

91258-410-013

$9.80

16

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-006.

91258-410-013

$9.80

16

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

17

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

18

BOLT, FLANGE (8X100) (NOT AVAILABLE)

95812-08100-00

Unavailable

19

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

19

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
