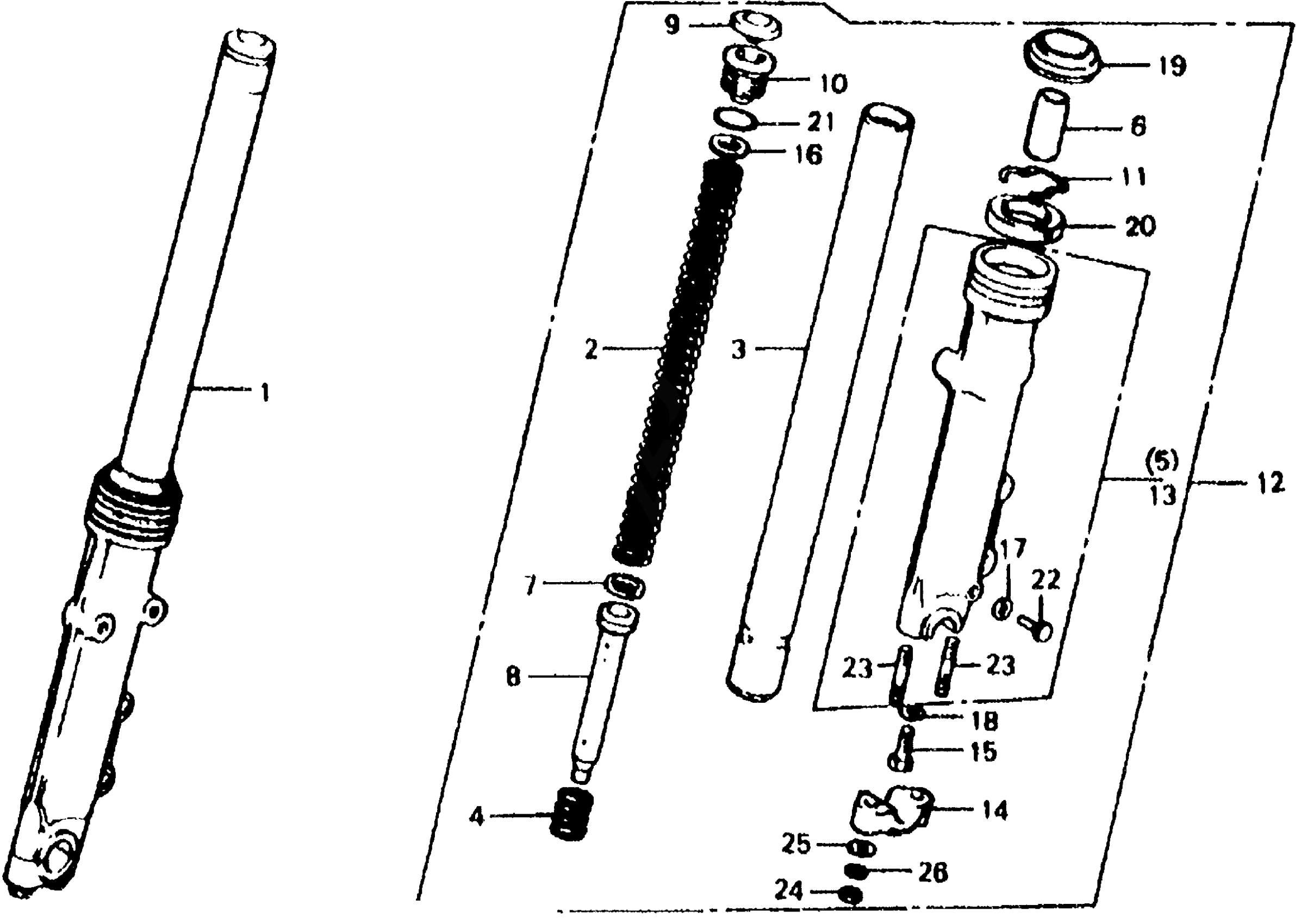

Honda CB750FA (79) 750 SUPER SPORT, JPN, VIN# RC04-2000023 TO RC04-2010669 FRONT FORK 79-80 Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA) (NOT AVAILABLE) This part replaces 51400-445-003.

51400-445-013

Unavailable

1

FORK ASSY., R. FR. (SHOWA) (NOT AVAILABLE)

51400-445-013

Unavailable

2

SPRING, FR. FORK (NOT AVAILABLE)

51401-425-000

Unavailable

3

PIPE, FR. FORK (NOT AVAILABLE)

51410-425-003

Unavailable

4

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

5

CASE, R. (LOWER) (NOT AVAILABLE)

51421-445-003

Unavailable

6

PIECE, OIL LOCK (NOT AVAILABLE)

51432-371-003

Unavailable

7

RING, PISTON

51437-400-771

$6.30

8

SEAT (LOWER) (NOT AVAILABLE)

51440-425-003

Unavailable

9

CAP, FORK PIPE

51449-428-003

Unavailable

10

BOLT, FR. FORK

51454-422-003

Unavailable

10

BOLT, FR. FORK (NOT AVAILABLE)

51454-428-003

Unavailable

11

RING, OIL SEAL STOPPER

51447-KL4-951

$4.03

11

RING, OIL SEAL STOPPER This part replaces 51466-375-000.

51447-KL4-951

$4.03

12

FORK ASSY., L. FR. (SHOWA) (NOT AVAILABLE) This part replaces 51500-445-003.

51500-445-013

Unavailable

12

FORK ASSY., L. FR. (SHOWA) (NOT AVAILABLE)

51500-445-013

Unavailable

13

CASE, L. (LOWER) (NOT AVAILABLE)

51521-445-003

Unavailable

14

HOLDER 1B, FR. FORK AXLE (NOT AVAILABLE) This part replaces 51634-410-003.

95014-41100

Unavailable

15

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

15

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

16

WASHER, FR. FORK (NOT AVAILABLE)

90504-425-003

Unavailable

17

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

18

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

19

DUST SEAL (35MM) This part replaces 91254-400-771.

91254-434-003

$13.96

19

DUST SEAL (35MM)

91254-434-003

$13.96

20

OIL SEAL (35X48X11) This part replaces 91255-434-003.

91255-KBH-003

$13.24

20

OIL SEAL (35X48X11)

91255-KBH-003

$13.24

20

OIL SEAL (35X48X11) This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

20

OIL SEAL (35X48X11) This part replaces 91255-434-013.

91255-KBH-003

$13.24

21

O-RING (25.7X2.8)

91356-428-003

$3.60

22

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

22

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

22

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

23

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

23

BOLT, STUD (8X50)

92900-08028-3B

$1.59

24

NUT, HEX. (8MM)

94030-08000

$1.49

25

WASHER, PLAIN (8MM)

94101-08000

$1.49

26

WASHER, SPRING (8MM)

94111-08000

$1.49
