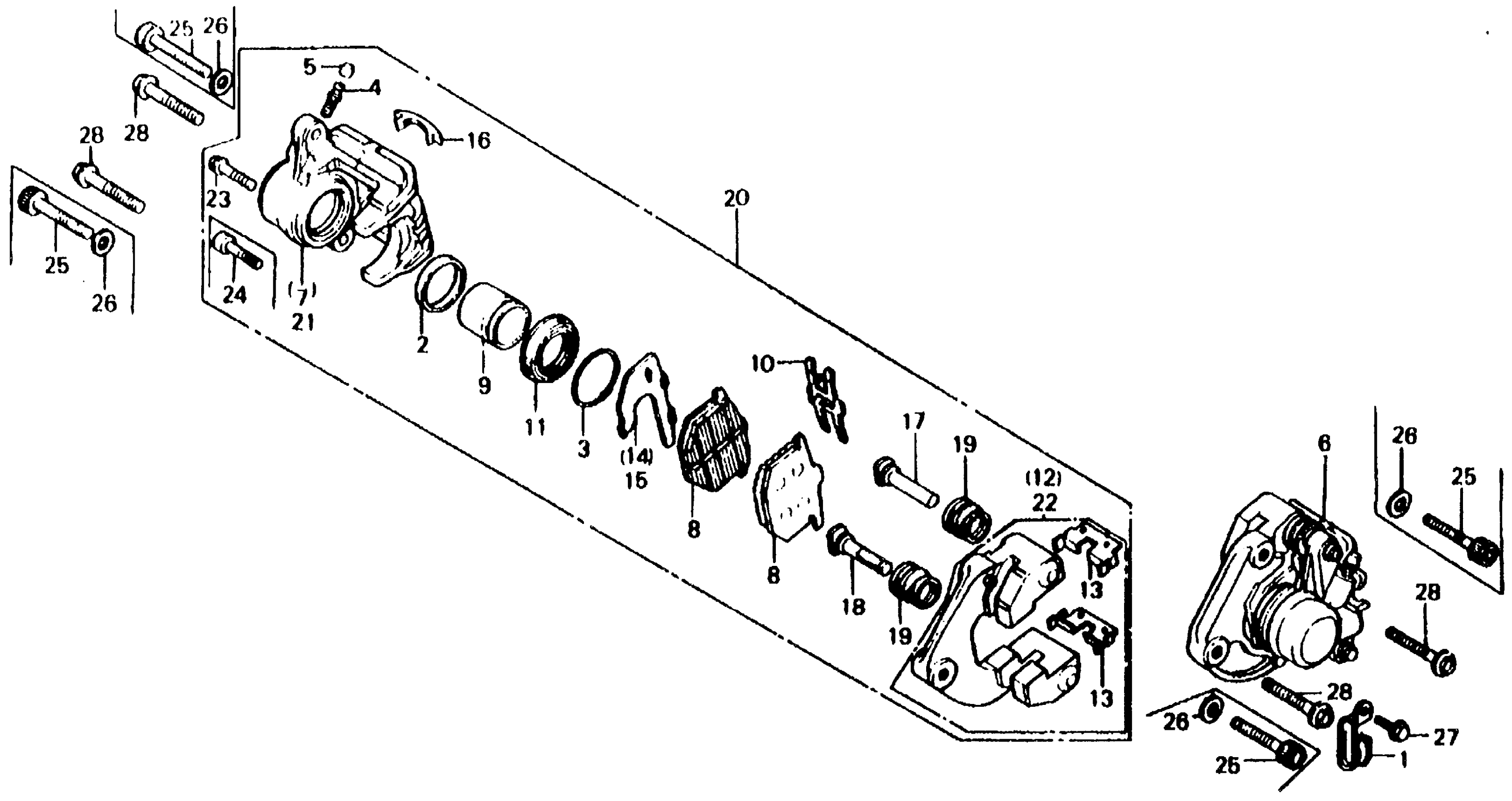

Honda CB750FA (79) 750 SUPER SPORT, JPN, VIN# RC04-2000023 TO RC04-2010669 FRONT BRAKE CALIPER 79-80 Diagram

#

Description
Price

NI

PAD SET, BRAKE This part replaces 06455-371-405.

06455-410-406

Unavailable

NI

PAD SET, BRAKE This part replaces 06455-438-405.

06455-410-406

Unavailable

NI

PAD SET, BRAKE This part replaces 451A0-438-670.

06455-410-406

Unavailable

1

CLIP, CABLE

32906-049-000

Unavailable

2

SEAL, PISTON (38MM)

43209-371-006

$10.85

3

CLIP, DUST COVER

43218-371-006

$13.86

4

SCREW, BLEEDER

43352-568-003

$7.95

5

CAP, BLEEDER SCREW

43353-548-003

$4.93

6

CALIPER ASSY., L. FR. (JB) (NISSHIN) (NOT AVAILABLE)

45100-438-006

Unavailable

6

CALIPER ASSY., L. FR. (ASK) (NISSHIN) (NOT AVAILABLE) CALIPER ASSY., L. FR. (JB)

45100-438-007

Unavailable

7

CALIPER, L. (NOT AVAILABLE) This part replaces 45101-410-006.

45101-442-701

Unavailable

8

PAD COMP This part replaces 45105-438-000.

45105-410-005

Unavailable

8

PAD COMP This part replaces 45105-410-305.

45105-410-005

Unavailable

8

PAD COMP This part replaces 45105-438-004.

45105-410-005

Unavailable

8

PAD COMP This part replaces 45105-438-007.

45105-410-005

Unavailable

9

PISTON (NISSHIN)

45107-410-006

Unavailable

10

SPRING, PAD (NISSHIN)

45108-410-006

Unavailable

11

BOOT, PISTON

45109-371-006

$26.38

12

BRACKET, L. FR. (NOT AVAILABLE) This part replaces 45110-422-006.

45110-422-016

Unavailable

12

BRACKET, L. FR. (NOT AVAILABLE)

45110-422-016

Unavailable

13

RETAINER, BRACKET

45112-410-006

Unavailable

14

SHIM A, PAD

45114-371-006

Unavailable

15

SHIM B, PAD

45116-371-006

Unavailable

16

CAP, INDICATOR

45119-371-000

Unavailable

17

PIN A (NISSHIN)

45131-410-006

Unavailable

18

PIN B (NISSHIN)

45132-410-006

Unavailable

19

COVER, DUST

45133-371-006

$7.68

20

CALIPER ASSY., R. FR. (JB) (NISSHIN) (NOT AVAILABLE)

45200-438-006

Unavailable

20

CALIPER ASSY., R. FR. (ASK) (NISSHIN) (NOT AVAILABLE) CALIPER ASSY., R. FR. (JB)

45200-438-007

Unavailable

21

CALIPER, R. (NOT AVAILABLE) This part replaces 45201-410-006.

45201-442-701

Unavailable

21

CALIPER, R. (NOT AVAILABLE)

45201-442-701

Unavailable

22

BRACKET, R. FR. (NOT AVAILABLE) This part replaces 45210-422-006.

45210-422-016

Unavailable

22

BRACKET, R. FR. (NOT AVAILABLE)

45210-422-016

Unavailable

24

BOLT, SOCKET (8X23)

90116-422-006

Unavailable

25

BOLT, SOCKET (10X32) (NOT AVAILABLE)

90164-422-000

Unavailable

26

WASHER, FLAT (10MM)

94102-10700

$1.49

27

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

27

BOLT, FLANGE (6X10)

95701-06010-00

$1.49
