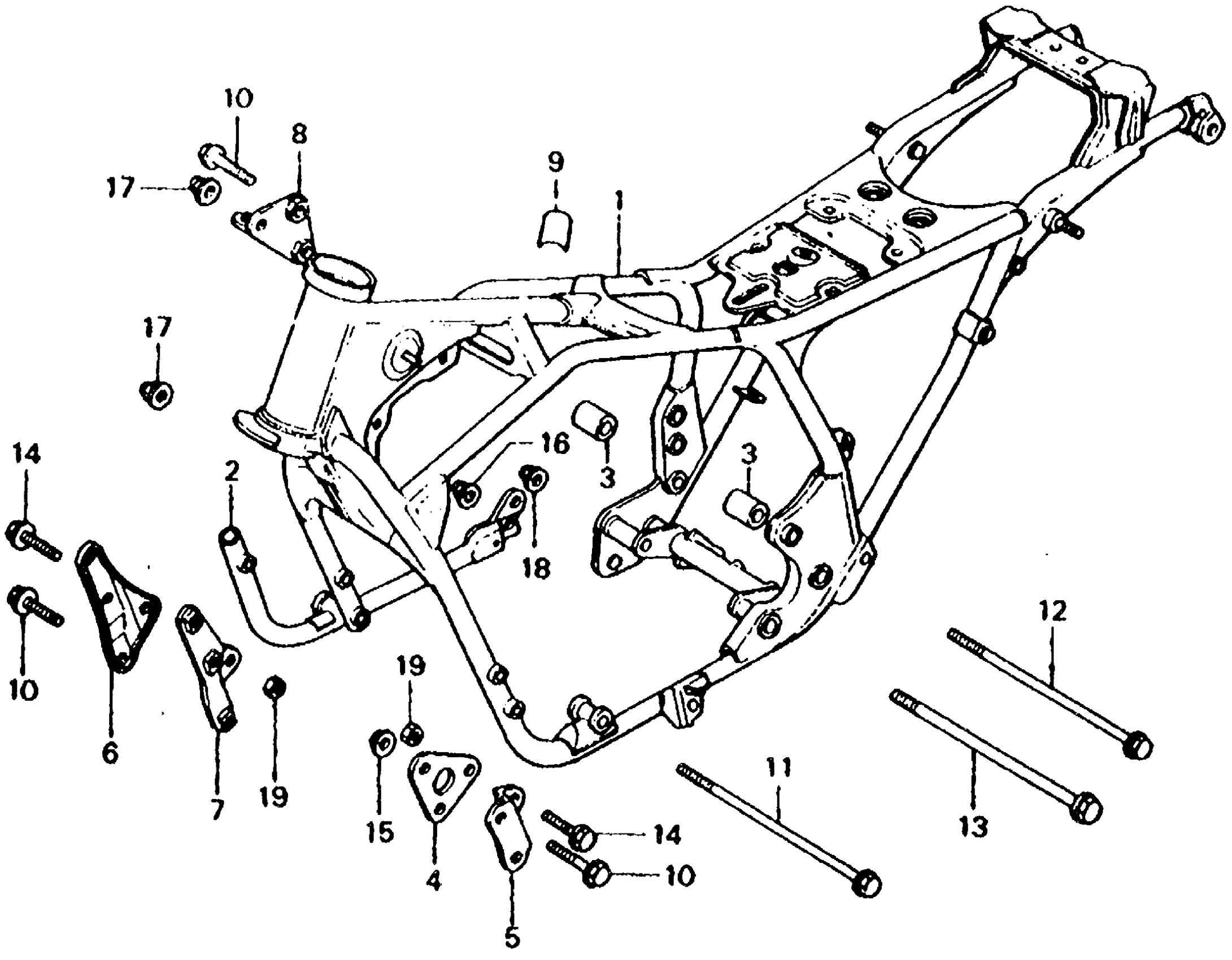

Honda CB750FA (79) 750 SUPER SPORT, JPN, VIN# RC04-2000023 TO RC04-2010669 FRAME Diagram

#

Description
Price

1

FRAME *NH1* (BLACK) This part replaces 50100-445-670ZA.

50200-445-670ZA

Unavailable

1

FRAME *NH1* (BLACK)

50200-445-670ZA

Unavailable

2

PIPE, JOINT (NOT AVAILABLE)

50122-425-020

Unavailable

3

COLLAR, R. ENGINE MOUNTING (NOT AVAILABLE)

50327-425-000

Unavailable

4

PLATE, FR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50351-438-000.

50351-438-000ZA

Unavailable

5

PLATE, L. HANGER (NOT AVAILABLE)

50352-438-000

Unavailable

6

PLATE B, ENGINE HANGER *NH1* (BLACK) This part replaces 50353-438-000.

50353-438-000ZA

Unavailable

6

PLATE B, ENGINE HANGER *NH1* (BLACK)

50353-438-000ZA

Unavailable

7

PLATE A, ENGINE HANGER (NOT AVAILABLE)

50354-438-000

Unavailable

8

BRACKET, RR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50356-425-010.

50356-425-020ZA

Unavailable

10

BOLT, SPECIAL FLANGE (8X62)

90016-438-000

Unavailable

11

BOLT, ENGINE HANGER (10X325)

90152-438-000

Unavailable

12

BOLT, ENGINE HANGER (10X280) (NOT AVAILABLE)

90156-438-000

Unavailable

13

BOLT, ENGINE HANGER (LOWER) (12X404)

90157-445-000

Unavailable

14

BOLT, SPECIAL FLANGE (10X50) BOLT, FLANGE (10X50)

90158-438-000

$7.63

15

NUT, FLANGE (8MM) (NOT AVAILABLE)

90202-425-870

Unavailable

16

NUT, FLANGE CAP (8MM)

90208-438-000

$2.98

17

NUT, CAP (10MM) This part replaces 90210-438-000.

90201-HA0-000

$6.45

18

NUT, FLANGE CAP (12MM) (NOT AVAILABLE)

90212-438-000

Unavailable

19

NUT, HEX. (10MM)

94030-10000

$1.49
