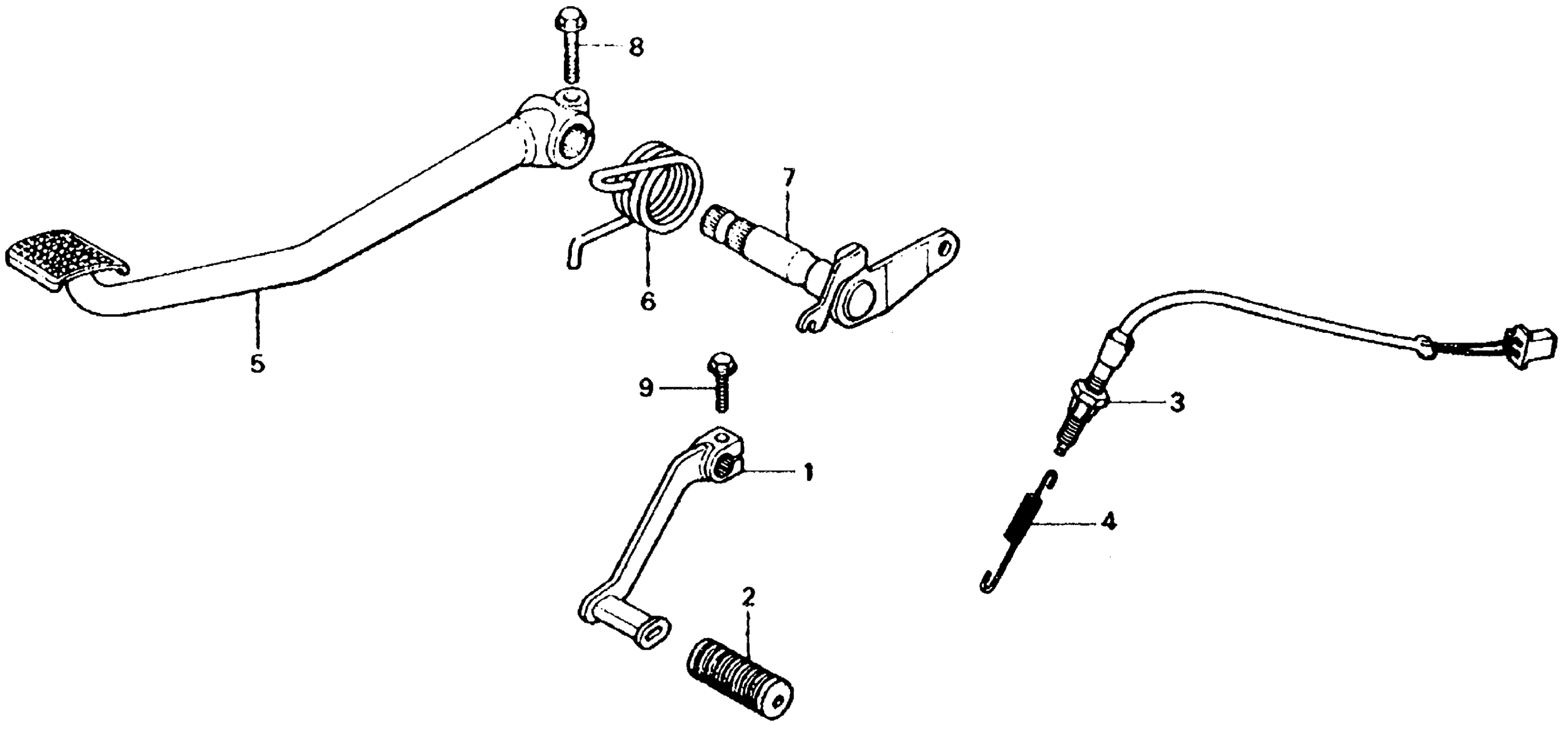

Honda CB750FA (79) 750 SUPER SPORT, JPN, VIN# RC04-2000023 TO RC04-2010669 BRAKE PEDAL + CHANGE PEDAL Diagram

#

Description

Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-445-670

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.23

3

SWITCH ASSY., RR. STOP

35350-KA2-405

$14.57

3

SWITCH ASSY., RR. STOP This part replaces 35350-438-000.

35350-KA2-405

$14.57

4

SPRING, STOP SWITCH

35357-KE4-730

Unavailable

4

SPRING, STOP SWITCH This part replaces 35357-425-610.

35357-KE4-730

Unavailable

5

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-445-670

Unavailable

6

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-445-670

Unavailable

7

SHAFT, RR. BRAKE PIVOT (NOT AVAILABLE)

46515-445-670

Unavailable

8

BOLT, SPECIAL FLANGE (8X26)

90183-438-000

$4.53

9

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.61

9

BOLT, FLANGE (6X20)

95701-06020-00

$1.61
