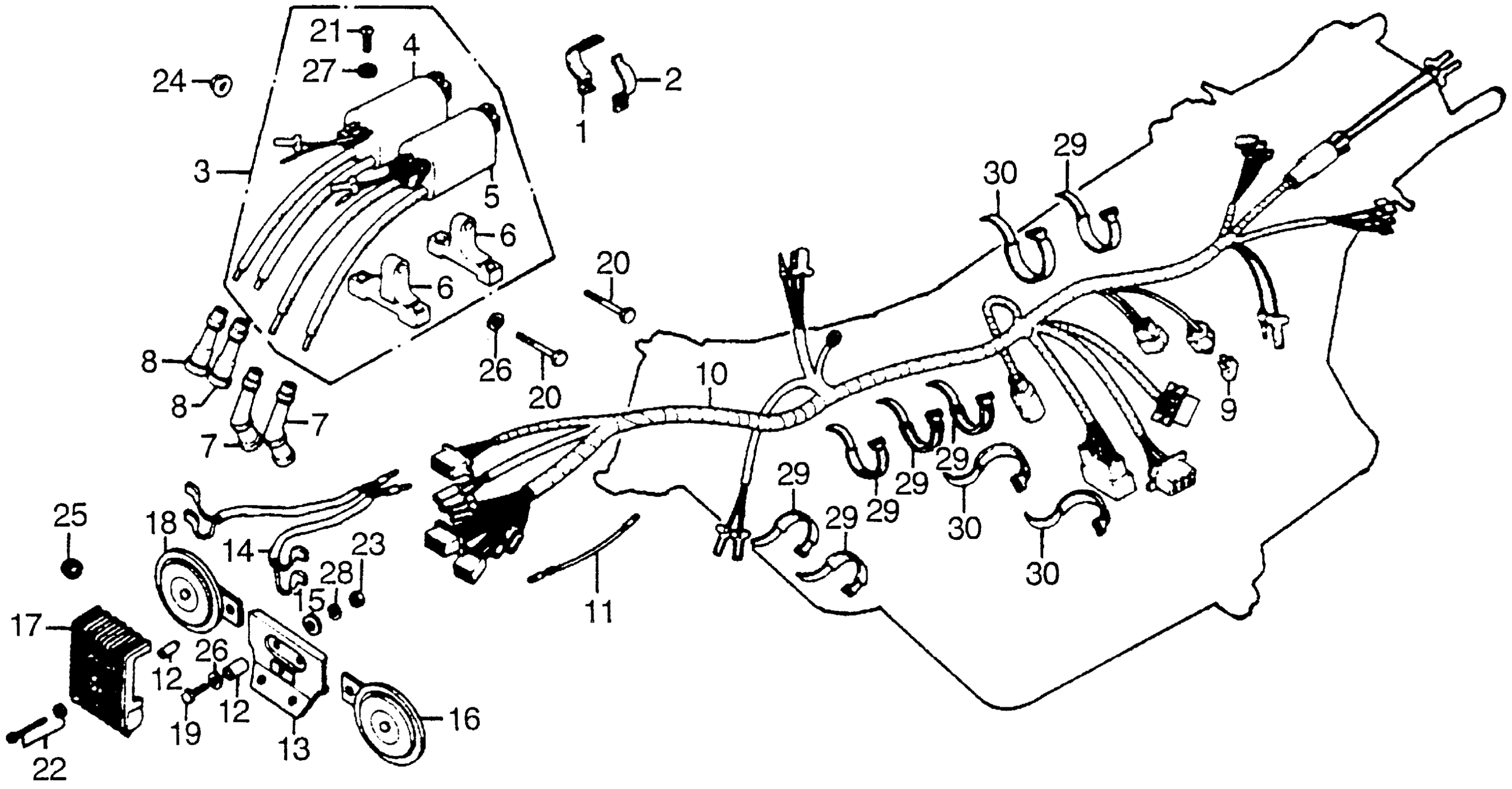

Honda CB750FA (78) 750 SUPER SPORT, JPN, VIN# CB750F-2200001 WIRE HARNESS + HORN Diagram

#

Description
Price

1

BAND A, IGNITION COIL SETTING (NOT AVAILABLE)

30151-300-000

Unavailable

2

BAND B, IGNITION COIL SETTING (NOT AVAILABLE)

30152-300-000

Unavailable

3

COIL ASSY., IGNITION (TOYO)

30500-300-013

$316.46

4

COIL, R. IGNITION (TOYO)

30501-300-003

Unavailable

4

COIL, R. IGNITION (TOYO) This part replaces 30501-300-013.

30501-300-003

Unavailable

5

COIL, L. IGNITION (TOYO)

30502-300-003

Unavailable

6

BRACKET, IGNITION COIL (NOT AVAILABLE)

30511-300-000

Unavailable

7

CAP ASSY. This part replaces 30700-GAR-000.

30700-GAR-003

$19.81

7

CAP ASSY. This part replaces 30700-405-153.

30700-GAR-003

$19.81

7

CAP ASSY. This part replaces 30700-405-163.

30700-GAR-003

$19.81

8

CAP ASSY. This part replaces 30700-MW3-000.

30700-MW3-003

$14.34

8

CAP ASSY. This part replaces 30710-405-153.

30700-MW3-003

$14.34

8

CAP ASSY. This part replaces 30710-405-163.

30700-MW3-003

$14.34

9

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

9

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

10

WIRE HARNESS (NOT AVAILABLE)

32100-410-010

Unavailable

11

CABLE, SUB (BROWN/BLUE) (NOT AVAILABLE)

32105-404-670

Unavailable

12

COLLAR, SPEEDOMETER CUSHION (NOT AVAILABLE)

37312-051-740

Unavailable

13

STAY, HORN (NOT AVAILABLE)

38102-410-004

Unavailable

14

CABLE, HORN SUB

38105-410-671

Unavailable

15

WASHER, PLAIN (20MM) (NOT AVAILABLE)

38106-410-004

Unavailable

16

HORN (HIGH) (MITSUBA)

38110-GT8-621

$55.64

16

HORN (HIGH) (MITSUBA) This part replaces 38110-ME2-601.

38110-GT8-621

$55.64

16

HORN (HIGH) (MITSUBA) This part replaces 38110-410-004.

38110-GT8-621

$55.64

16

HORN (HIGH) (MITSUBA) This part replaces 38110-438-601.

38110-GT8-621

$55.64

17

EMBLEM, HORN (NOT AVAILABLE)

38111-410-000

Unavailable

18

HORN (LOW) This part replaces 38120-410-004.

38120-438-601

Unavailable

18

HORN (LOW) This part replaces 38120-438-004.

38120-438-601

Unavailable

18

HORN (LOW)

38120-438-601

Unavailable

19

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

20

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

21

SCREW, PAN (5X20)

93500-05020-0A

$1.49

22

SCREW-WASHER (5X20)

93891-05020-07

$1.49

23

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM)

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

24

NUT, FLANGE (6MM)

94050-06000

$1.49

25

NUT, FLANGE (6MM)

94050-06080

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

WASHER, SPRING (5MM)

94111-05000

$1.49

28

WASHER, SPRING (6MM)

94111-06000

$1.49

29

BAND B1, CABLE

32161-404-000

$2.23

29

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

30

BAND A2, CABLE

95014-61200

$2.33
