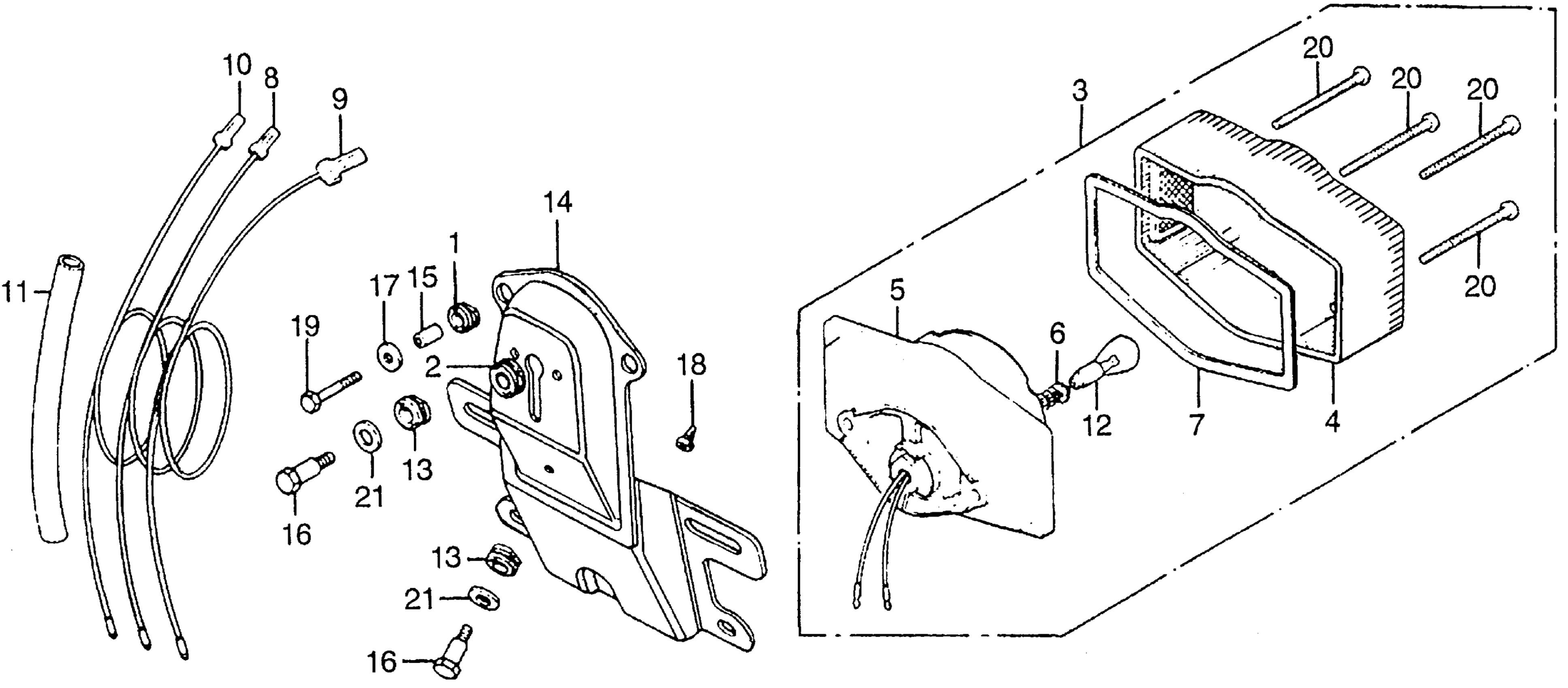

Honda CB750FA (78) 750 SUPER SPORT, JPN, VIN# CB750F-2200001 TAILLIGHT Diagram

RUBBER, REGULATOR CUSHION This part replaces 31403-300-000.

31403-323-000

$3.38

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

GROMMET, WIRE HARNESS

32983-028-000

$1.49

TAILLIGHT UNIT (12V 32/3CP) (NOT AVAILABLE)

33701-341-910

Unavailable

LENS, TAILLIGHT

33702-341-671

Unavailable

BASE, TAILLIGHT (NOT AVAILABLE)

33703-341-900

Unavailable

WIRE, TAILLIGHT

33708-098-000

Unavailable

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

GASKET, TAILLIGHT LENS

33709-341-671

Unavailable

CABLE, TAILLIGHT SUB (NOT AVAILABLE) This part replaces 33711-300-000.

33711-323-000

Unavailable

CABLE, TAILLIGHT SUB (NOT AVAILABLE)

33711-323-000

Unavailable

CABLE, TAILLIGHT GROUND (STANLEY) (NOT AVAILABLE)

33712-300-003

Unavailable

CABLE, STOP LIGHT SUB (NOT AVAILABLE) This part replaces 33713-300-000.

33713-323-000

Unavailable

CABLE, STOP LIGHT SUB (NOT AVAILABLE)

33713-323-000

Unavailable

TUBE, WIRE (NOT AVAILABLE)

33720-300-000

Unavailable

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

BRACKET, NUMBER PLATE *NH1* (BLACK) (NOT AVAILABLE)

84701-410-670ZA

Unavailable

COLLAR, TAILLIGHT UNIT

84706-378-000

Unavailable

BOLT, TAILLIGHT SETTING

90162-283-000

$4.24

BOLT, TAILLIGHT SETTING This part replaces 90162-292-000.

90162-283-000

$4.24

WASHER (20MM)

90581-310-000

$1.90

PLUG, CONE

90899-283-000

$2.56

BOLT, HEX. (5X25) This part replaces 92000-05025-0A.

92101-05025-0A

$1.49

BOLT, HEX. (5X25)

92101-05025-0A

$1.49

SCREW, PAN (4X55)

93500-04055-4J

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49
