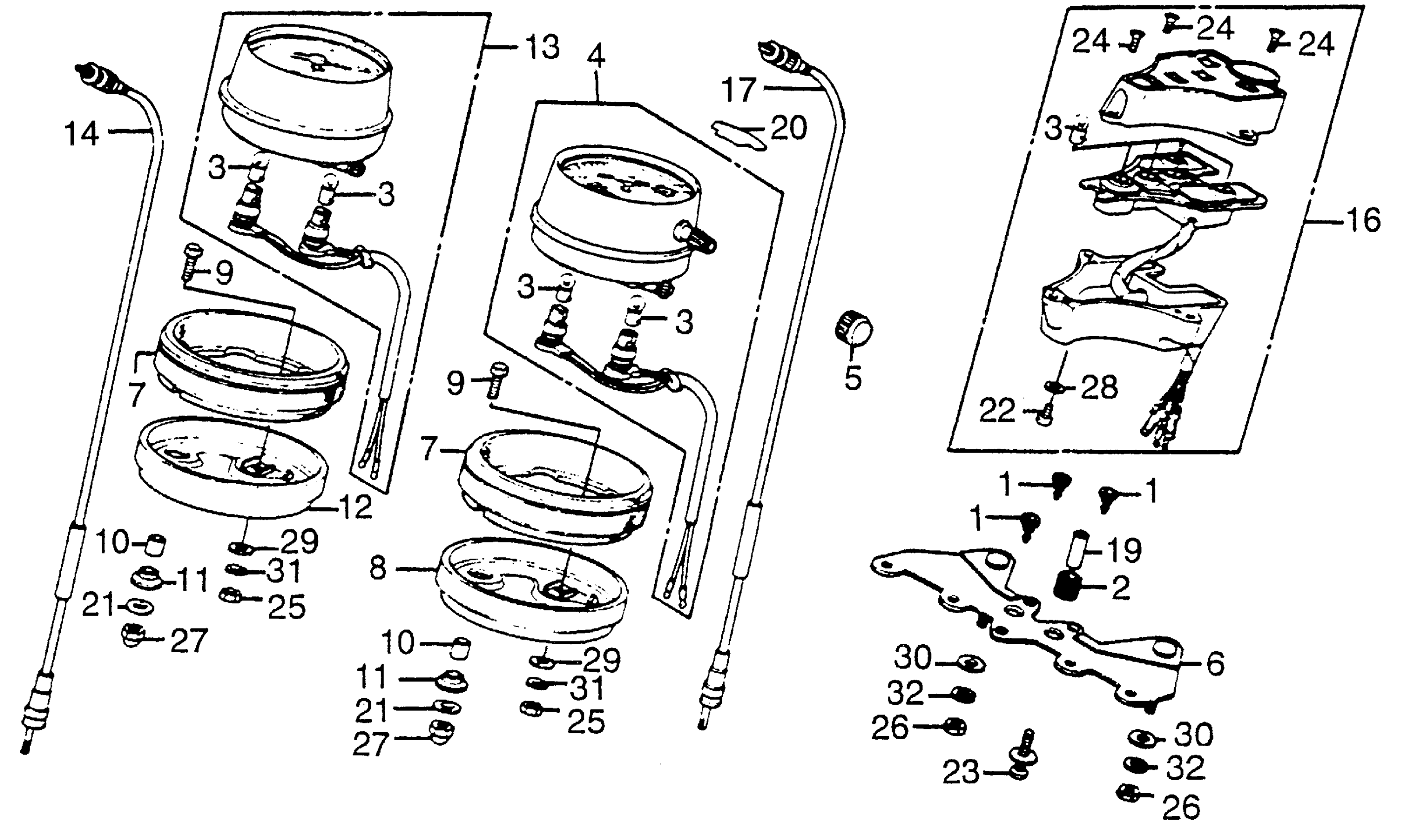

Honda CB750FA (78) 750 SUPER SPORT, JPN, VIN# CB750F-2200001 SPEEDOMETER + TACHOMETER + PILOT LAMP Diagram

#

Description
Price

1

STOPPER, METER BRACKET (NOT AVAILABLE)

32701-392-700

Unavailable

2

GROMMET, METER BRACKET (NOT AVAILABLE)

32702-392-700

Unavailable

3

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

4

SPEEDOMETER ASSY. (MPH/KPH) (NOT AVAILABLE)

37200-405-671

Unavailable

6

BRACKET, METER

37211-405-000

Unavailable

7

RUBBER, SPEEDOMETER

37235-323-700

$22.28

8

PLATE, SPEEDOMETER (LOWER) This part replaces 37236-404-000.

37236-426-000

Unavailable

8

PLATE, SPEEDOMETER (LOWER)

37236-426-000

Unavailable

9

BOLT, INSTRUMENT SETTING (6MM) (NOT AVAILABLE)

37238-323-700

Unavailable

10

COLLAR, INSTRUMENT SETTING

37243-323-700

Unavailable

11

RUBBER, METER SETTING

37244-307-670

$2.67

12

PLATE, TACHOMETER (LOWER) This part replaces 37246-404-000.

37246-426-000

Unavailable

12

PLATE, TACHOMETER (LOWER)

37246-426-000

Unavailable

13

TACHOMETER ASSY. (NOT AVAILABLE) This part replaces 37250-410-009.

37250-410-771

Unavailable

13

TACHOMETER ASSY. (NOT AVAILABLE)

37250-410-771

Unavailable

14

CABLE ASSY., TACHOMETER

37260-KB7-010

Unavailable

14

CABLE ASSY., TACHOMETER This part replaces 37260-362-000.

37260-KB7-010

Unavailable

16

PILOT ASSY., COMBINATION (NIPPON SEIKI) (NOT AVAILABLE)

37600-377-018

Unavailable

17

CABLE ASSY., SPEEDOMETER This part replaces 44830-323-000.

44830-425-870

$29.28

17

CABLE ASSY., SPEEDOMETER This part replaces 44830-346-000.

44830-425-870

$29.28

17

CABLE ASSY., SPEEDOMETER This part replaces 44830-390-000.

44830-425-870

$29.28

17

CABLE ASSY., SPEEDOMETER

44830-425-870

$29.28

19

COLLAR, NUMBER BRACKET SETTING (NOT AVAILABLE)

84706-375-000

Unavailable

20

LABEL, BREAK IN CAUTION (NOT AVAILABLE) | Use from Frame SN 2250001

87523-410-790

Unavailable

21

WASHER (6.5X18)

90545-323-700

$1.89

22

SCREW, PAN (5X6)

93500-05006-0G

$1.49

23

SCREW-WASHER (5X28) (NOT AVAILABLE)

93894-05028-00

Unavailable

24

SCREW, TAPPING (4X10)

93902-24280

Unavailable

25

NUT, HEX. (6MM) This part replaces 94001-06070.

94001-06070-0S

$1.49

25

NUT, HEX. (6MM)

94001-06070-0S

$1.49

26

NUT, HEX. (8MM)

94001-08070-0S

$1.49

27

NUT, CAP (6MM)

94021-06020

$1.73

27

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

27

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

28

WASHER, FLAT (5MM)

94101-05700

$1.49

29

WASHER, PLAIN (6MM)

94101-06700

$1.49

30

WASHER, FLAT (8MM)

94101-08700

$1.49

31

WASHER, SPRING (6MM)

94111-06700

$1.49

32

WASHER, SPRING (8MM) (NOT AVAILABLE)

94111-08700

Unavailable
